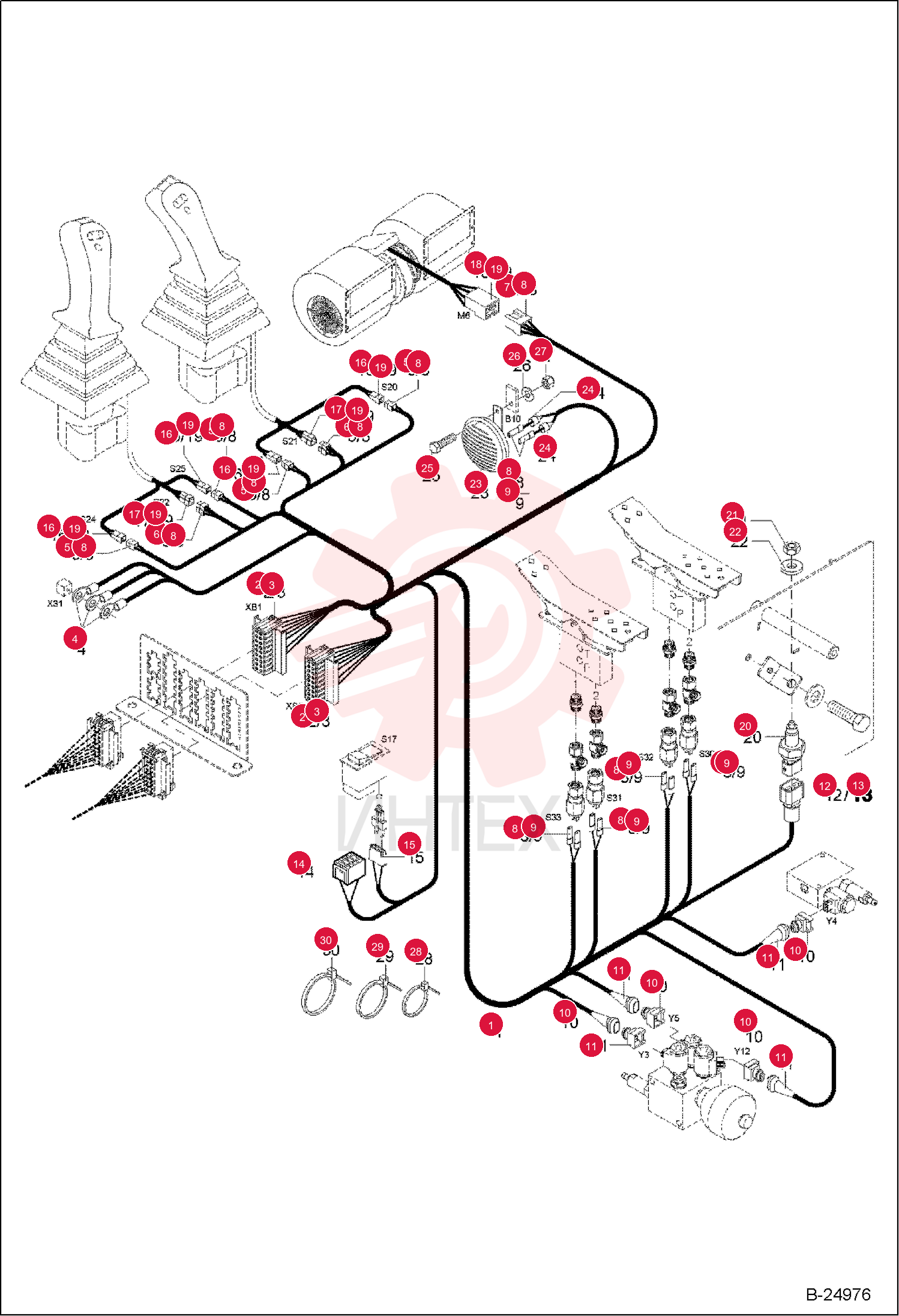

WIRE HARNESS CPL. 0234007070 (1)

WIRE HARNESS CPL. 0234007070 (1)

WIRE HARNESS CPL. 0234007070 (1)

1 0234007070

  • 0234007070 - WIRE HARNESS CPL.

2 5350249686

  • 5350249686 - CONNECTOR

3 5350249552

  • 5350249552 - CONNECTOR

4 5350249597

  • 5350249597 - CABLE CONNECTOR

5 5350249513

  • 5350249513 - PLUG

6 5350249541

  • 5350249541 - HOUSING

7 5350249508

  • 5350249508 - PLUG

8 5350246805

  • 5350246805 - TERMINAL FEMALE

9 5653095677

  • 5653095677 - INSULATING SOCKET

10 5350247518

  • 5350247518 - HOUSING (FEMALE)

11 5350247520

  • 5350247520 - CAP

12 5350249545

  • 5350249545 - HOUSING

13 5350249546

  • 5350249546 - RUBBER GRAMMET

14 5050650225

  • 5050650225 - HOUSING

15 5050650231

  • 5050650231 - HOUSING

16 5350249534

  • 5350249534 - FLAT PLUG

17 5350249542

  • 5350249542 - PLUG

18 5350249509

  • 5350249509 - HOUSING (MALE)

19 5350247311

  • 5350247311 - TERMINAL MALE

20 5050650295

  • 5050650295 - SWITCH
  • hyd controls lockout
  • left console

21 1208707614

  • 1208707614 - NUT

22 1290707022

  • 1290707022 - WASHER

23 5050022200

  • 5050022200 - HORN

24 5653095570

  • 5653095570 - CAP

25 1008707018

  • 1008707018 - BOLT

26 1290707018

  • 1290707018 - WASHER

27 1212251011

  • 1212251011 - NUT

28 5350650294

  • 5350650294 - BINDER

29 5653093560

  • 5653093560 - BINDER

30 5350650280

  • 5350650280 - BINDER
