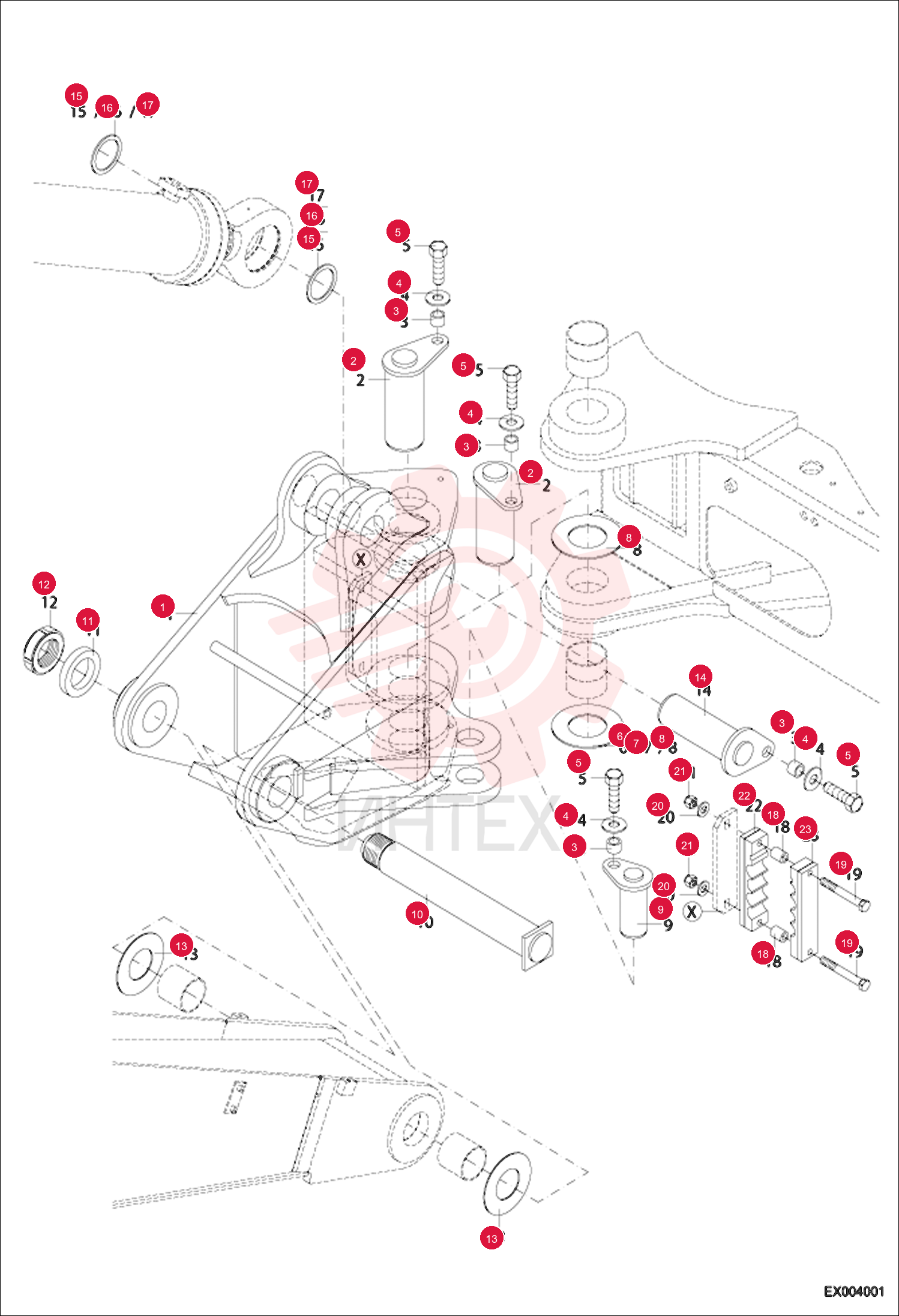

PIVOT POST 0190024002 (7)

PIVOT POST 0190024002 (7)

PIVOT POST 0190024002 (7)

1 0190024002

  • 0190024002 - PIVOT POST

2 0190024050

  • 0190024050 - PIN

3 0156029033

  • 0156029033 - SPACER

4 1343707061

  • 1343707061 - WASHER

5 1008707829

  • 1008707829 - BOLT

6 0202524052

  • 0202524052 - WASHER

7 0202524057

  • 0202524057 - WASHER

8 0202524053

  • 0202524053 - WASHER

9 0157950045

  • 0157950045 - PIN
  • Was 0203024024

10 0209127041

  • 0209127041 - PIN

11 0209127045

  • 0209127045 - ZINC COATED RING

12 1212707446

  • 1212707446 - SLOTTED NUT

13 0202524050

  • 0202524050 - WASHER

14 6190024020

  • 6190024020 - PIN

15 1309412013

  • 1309412013 - SHIM

16 1309412825

  • 1309412825 - SHIM

17 1309412834

  • 1309412834 - SHIM

18 0209124023

  • 0209124023 - DISTANCE SLEEVE

19 1007707725

  • 1007707725 - BOLT

20 1290707020

  • 1290707020 - WASHER

21 1212251013

  • 1212251013 - NUT

22 0190024041

  • 0190024041 - CLIP

23 0190024042

  • 0190024042 - CLIP
