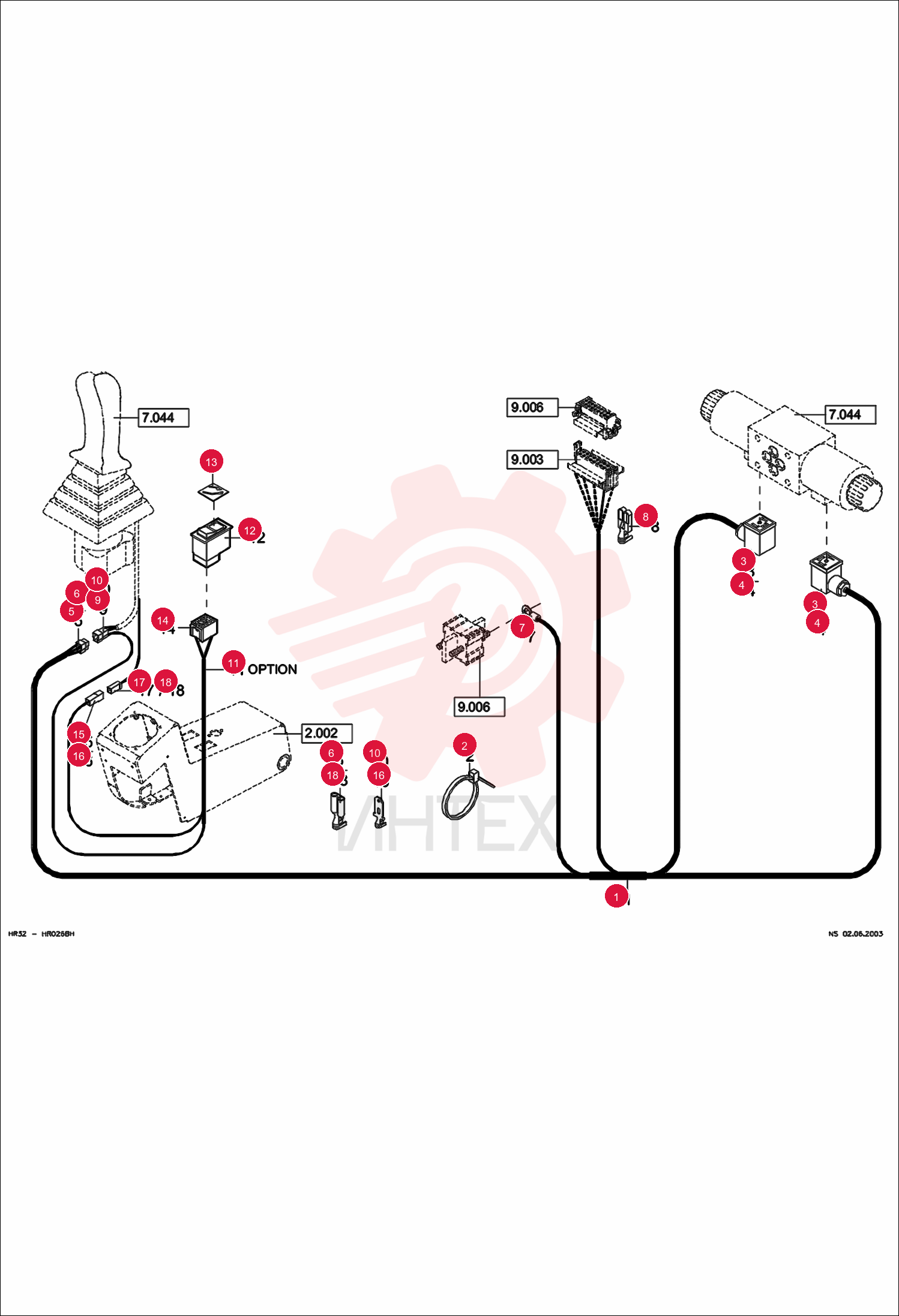

WIRE HARNESS 0190303020

WIRE HARNESS 0190303020

WIRE HARNESS 0190303020

1 0190303020

  • 0190303020 - WIRE HARNESS
  • W/Ref. 3-8

2 5350650280

  • 5350650280 - BINDER

3 5552659550

  • 5552659550 - BOX

4 5552659513

  • 5552659513 - SEAL

5 5350249541

  • 5350249541 - HOUSING

6 5350246805

  • 5350246805 - TERMINAL FEMALE

7 5350249597

  • 5350249597 - CABLE CONNECTOR

8 5350249552

  • 5350249552 - CONNECTOR

9 5350249542

  • 5350249542 - PLUG

10 5350247311

  • 5350247311 - TERMINAL MALE

11 0190303021

  • 0190303021 - WIRE HARNESS
  • Option - W/Ref. 12-18

12 5050651331

  • 5050651331 - INTERRUPTER SWITCH

13 5358650248

  • 5358650248 - DECAL

14 5050650225

  • 5050650225 - HOUSING

15 5350249542

  • 5350249542 - PLUG

16 5350247311

  • 5350247311 - TERMINAL MALE

17 5350249541

  • 5350249541 - HOUSING

18 5350246805

  • 5350246805 - TERMINAL FEMALE
