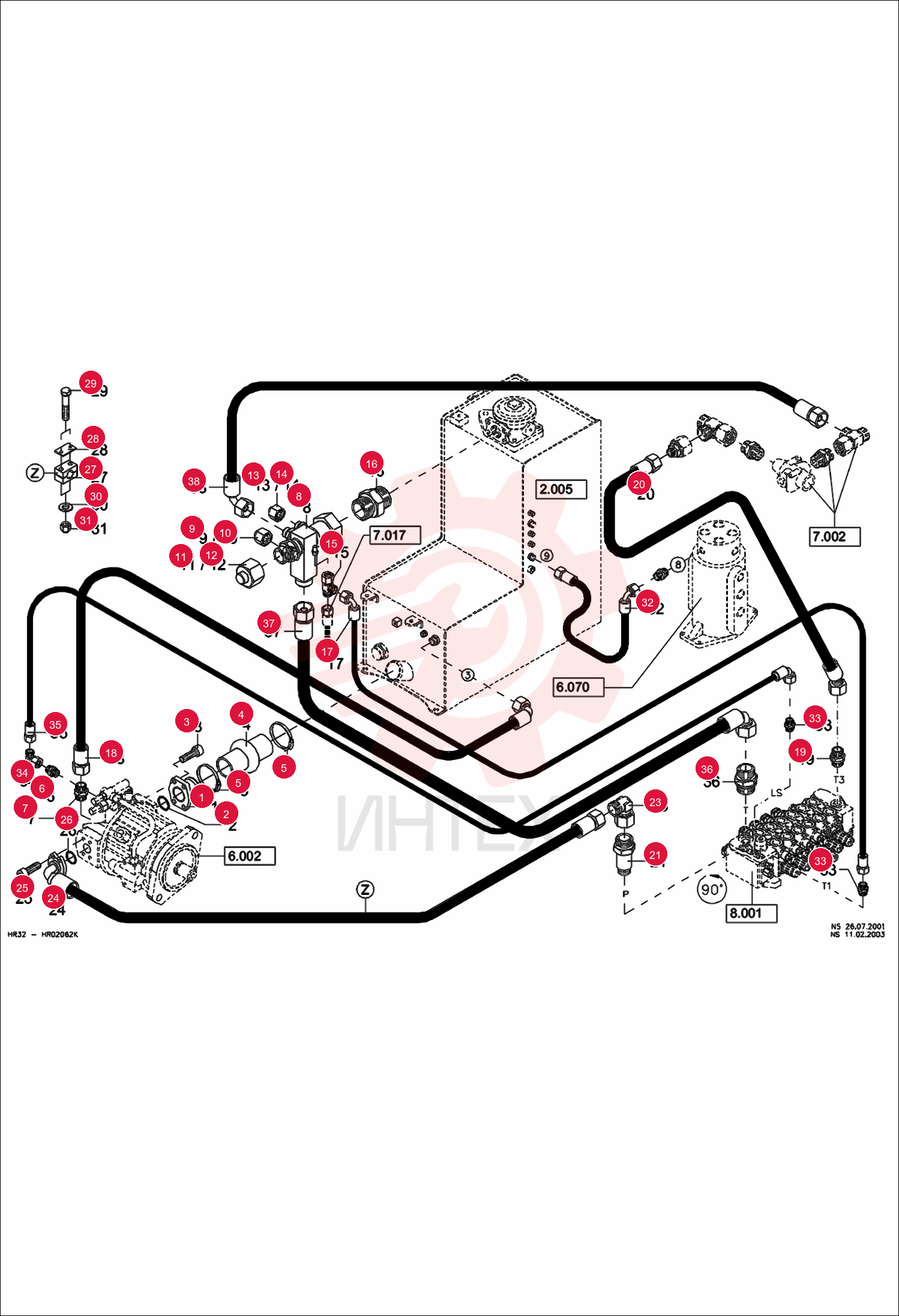

SUCTION FLANGE 0190017004

SUCTION FLANGE 0190017004

SUCTION FLANGE 0190017004

1 0190017004

  • 0190017004 - SUCTION FLANGE

2 1971956332

  • 1971956332 - O-RING

3 1045707590

  • 1045707590 - BOLT

4 5210657358

  • 5210657358 - COMPENSATOR

5 5660200105

  • 5660200105 - HOSE CLIP

6 1939060101

  • 1939060101 - FITTING

7 1939060609

  • 1939060609 - FITTING

8 5260310203

  • 5260310203 - REPAIR KIT

9 5260310204

  • 5260310204 - RETURN LINE COLLEC
  • includes check valve (not sold separately)

10 1912060359

  • 1912060359 - PLUG

11 1911060159

  • 1911060159 - UNION NUT

12 1912060361

  • 1912060361 - PLUG

13 1911060161

  • 1911060161 - UNION NUT

14 1912060358

  • 1912060358 - PLUG

15 1911060158

  • 1911060158 - UNION NUT

16 1919060351

  • 1919060351 - FITTING

17 1915060369

  • 1915060369 - FITTING

18 4506085351

  • 4506085351 - HOSE

19 4116063156

  • 4116063156 - HOSE

20 1915060470

  • 1915060470 - FITTING

21 4118060404

  • 4118060404 - HOSE

22 0254009005

  • 0254009005 - FITTING

23 1924060256

  • 1924060256 - FITTING
  • ELBOW

24 4470140888

  • 4470140888 - HOSE

25 1045707098

  • 1045707098 - BOLT

26 1971956315

  • 1971956315 - O-RING
  • Was 1971956322

27 5660199632

  • 5660199632 - CLIP

28 5660200150

  • 5660200150 - COVER

29 1007707814

  • 1007707814 - BOLT

30 1343707055

  • 1343707055 - WASHER

31 1212251009

  • 1212251009 - NUT
  • Was 1212251009

32 4110080374

  • 4110080374 - HOSE

33 1915060255

  • 1915060255 - FITTING

34 1924060151

  • 1924060151 - FITTING

35 4256131371

  • 4256131371 - HOSE

36 1915060469

  • 1915060469 - FITTING

37 4132066226

  • 4132066226 - HOSE PIPE

38 4120129156

  • 4120129156 - HOSE
