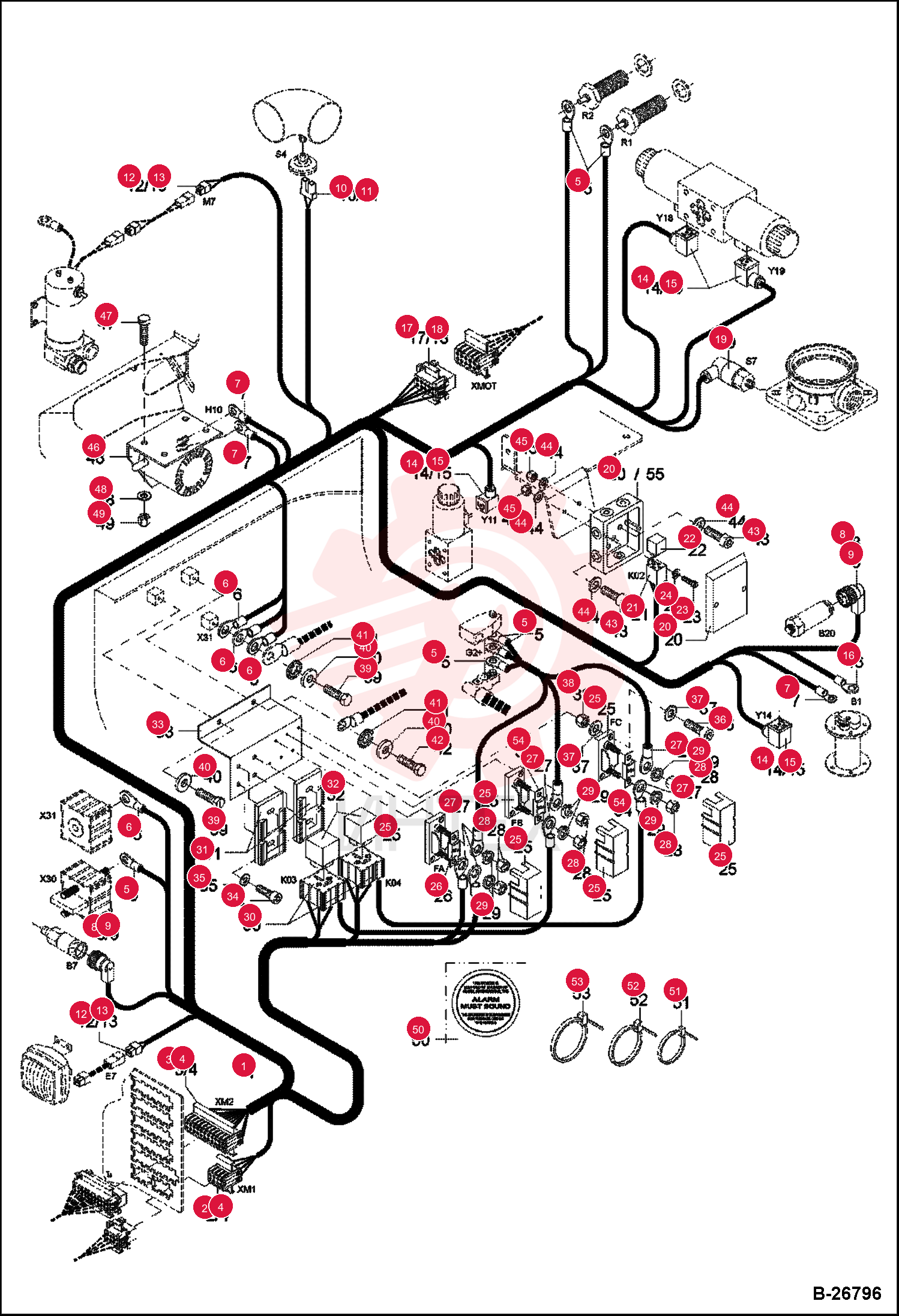

WIRE HARNESS 0234007160 (2)

WIRE HARNESS 0234007160 (2)

WIRE HARNESS 0234007160 (2)

1 0234007160

  • 0234007160 - WIRE HARNESS
  • Inclues Ref. 2-32 - Was 0234007060

2 5350249684

  • 5350249684 - CONNECTOR

3 5350249687

  • 5350249687 - CONNECTOR
  • Female

4 5350249552

  • 5350249552 - CONNECTOR
  • Female

5 5350249600

  • 5350249600 - CABLE CONNECTOR

6 5350249597

  • 5350249597 - CABLE CONNECTOR

7 5350241104

  • 5350241104 - CABLE CONNECTOR

8 5350249655

  • 5350249655 - SOCKET HOUSING

9 5350249661

  • 5350249661 - CAP 90GRAD

10 5350249576

  • 5350249576 - HOUSING

11 5350249579

  • 5350249579 - FEM TERMINAL

12 5350249513

  • 5350249513 - PLUG
  • Female Housing

13 5350246805

  • 5350246805 - TERMINAL FEMALE

14 5552659550

  • 5552659550 - BOX

15 5552659513

  • 5552659513 - SEAL

16 5350246820

  • 5350246820 - CABLE CONNECTOR

17 5350249691

  • 5350249691 - CONNECTOR MALE

18 5350249695

  • 5350249695 - MAL TERMINAL

19 5380660826

  • 5380660826 - PLUG CONNECTION

20 5208640228

  • 5208640228 - BOX

21 5208640226

  • 5208640226 - CLIP

22 5050247815

  • 5050247815 - BRACKET RELAY

23 5050247810

  • 5050247810 - RELAY

24 1041707506

  • 1041707506 - BOLT

25 1290707010

  • 1290707010 - WASHER

26 5050650450

  • 5050650450 - HOLDER
  • W/Ref. 28 & 29

27 5050650480

  • 5050650480 - 40A FUSE

28 5350249590

  • 5350249590 - CABLE CONNECTOR

29 1210707007

  • 1210707007 - NUT

30 1321707012

  • 1321707012 - WASHER

31 5050650464

  • 5050650464 - POWER RELAY LINE

32 5050650491

  • 5050650491 - BRACKET

33 5050247810

  • 5050247810 - RELAY

34 6190007010

  • 6190007010 - BRACKET

35 1045707909

  • 1045707909 - BOLT

36 1290707012

  • 1290707012 - WASHER

37 1045707906

  • 1045707906 - SCREW

38 1290707010

  • 1290707010 - WASHER

39 1212251006

  • 1212251006 - NUT

40 1008707517

  • 1008707517 - BOLT

41 1343707057

  • 1343707057 - WASHER

42 1327707018

  • 1327707018 - TOOTHED LOCK WASHER

43 1008707018

  • 1008707018 - BOLT

44 1045707213

  • 1045707213 - BOLT

45 1290707014

  • 1290707014 - WASHER

46 1212251009

  • 1212251009 - NUT

47 5755627342

  • 5755627342 - BACK UP BUZZER

48 1008707018

  • 1008707018 - BOLT

49 1290707018

  • 1290707018 - WASHER

50 1212251011

  • 1212251011 - NUT

51 5358609506

  • 5358609506 - BACKUP ALARM

52 5350650294

  • 5350650294 - BINDER

53 5653093560

  • 5653093560 - BINDER

54 5350650280

  • 5350650280 - BINDER

55 5050650452

  • 5050650452 - FUSE
