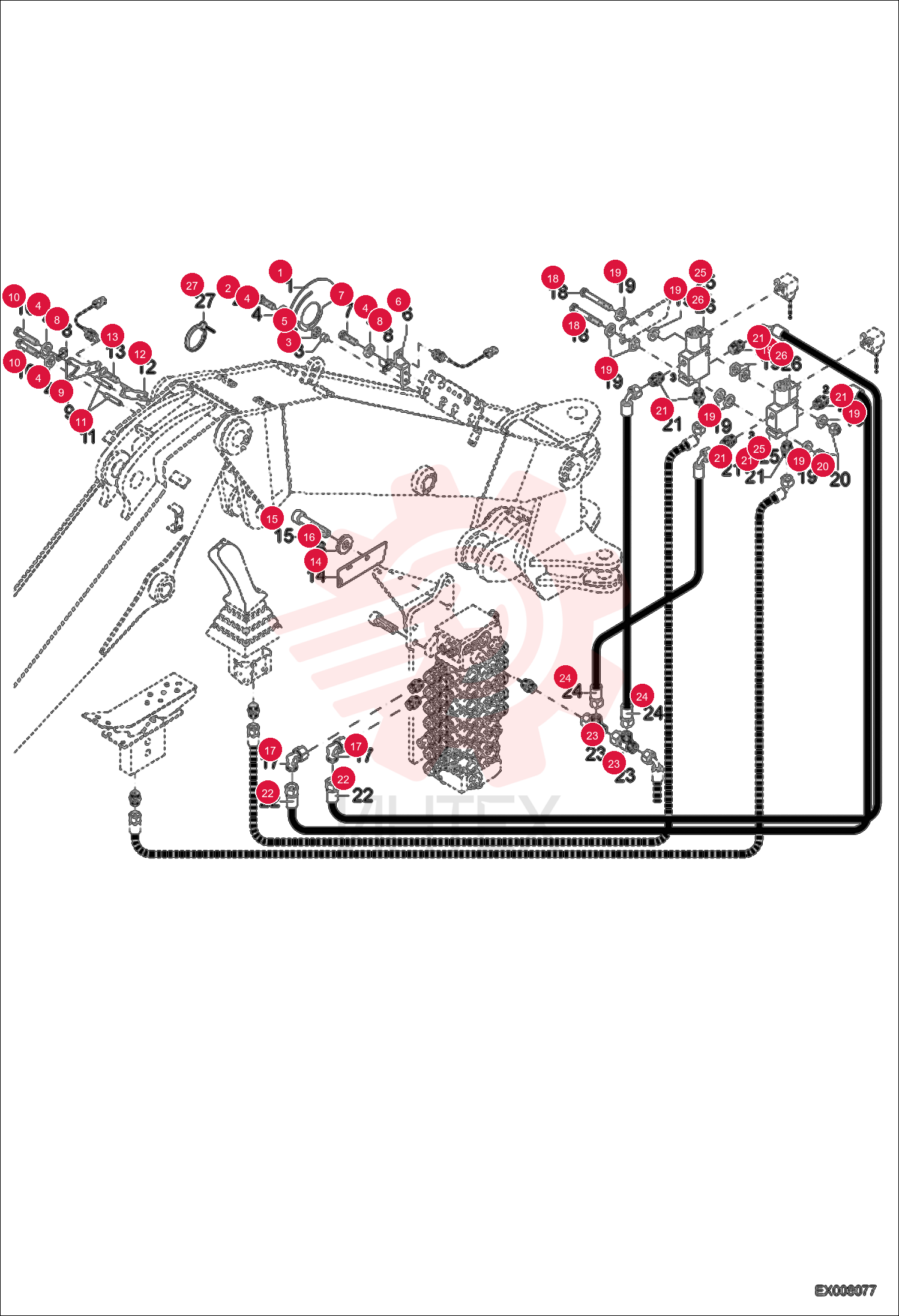

SEGMENT 0209760011 (2)

SEGMENT 0209760011 (2)

SEGMENT 0209760011 (2)

1 0209760011

  • 0209760011 - SEGMENT

2 1008707019

  • 1008707019 - BOLT

3 0337605028

  • 0337605028 - SLEEVE
  • DISTANCE

4 1343707057

  • 1343707057 - WASHER

5 1307707018

  • 1307707018 - WASHER

6 0207741020

  • 0207741020 - BRACKET

7 1008707318

  • 1008707318 - BOLT

8 5000095800

  • 5000095800 - HOSE CLIP

9 0209260010

  • 0209260010 - BRACKET

10 1007707620

  • 1007707620 - BOLT

11 0207741015

  • 0207741015 - SLEEVE
  • DISTANCE

12 0207741005

  • 0207741005 - BRACKET

13 1062707618

  • 1062707618 - BOLT
  • M8X30

14 0209817005

  • 0209817005 - BRACKET

15 1045707236

  • 1045707236 - BOLT
  • Was 1008707424

16 1343707063

  • 1343707063 - WASHER
  • Was 1343707059

17 1924060151

  • 1924060151 - FITTING

18 1008707115

  • 1008707115 - BOLT

19 1343707055

  • 1343707055 - WASHER

20 1212251009

  • 1212251009 - NUT

21 1915060255

  • 1915060255 - FITTING

22 4506047351

  • 4506047351 - HOSE

23 1919060351

  • 1919060351 - FITTING

24 4256033371

  • 4256033371 - HOSE
  • HYD
  • Was 4506033351

25 5320001001

  • 5320001001 - CONTROL VALVE
  • W/Ref. 26

26 5320001002

  • 5320001002 - SOLENOID CARTRIDGE

27 5653093560

  • 5653093560 - BINDER
