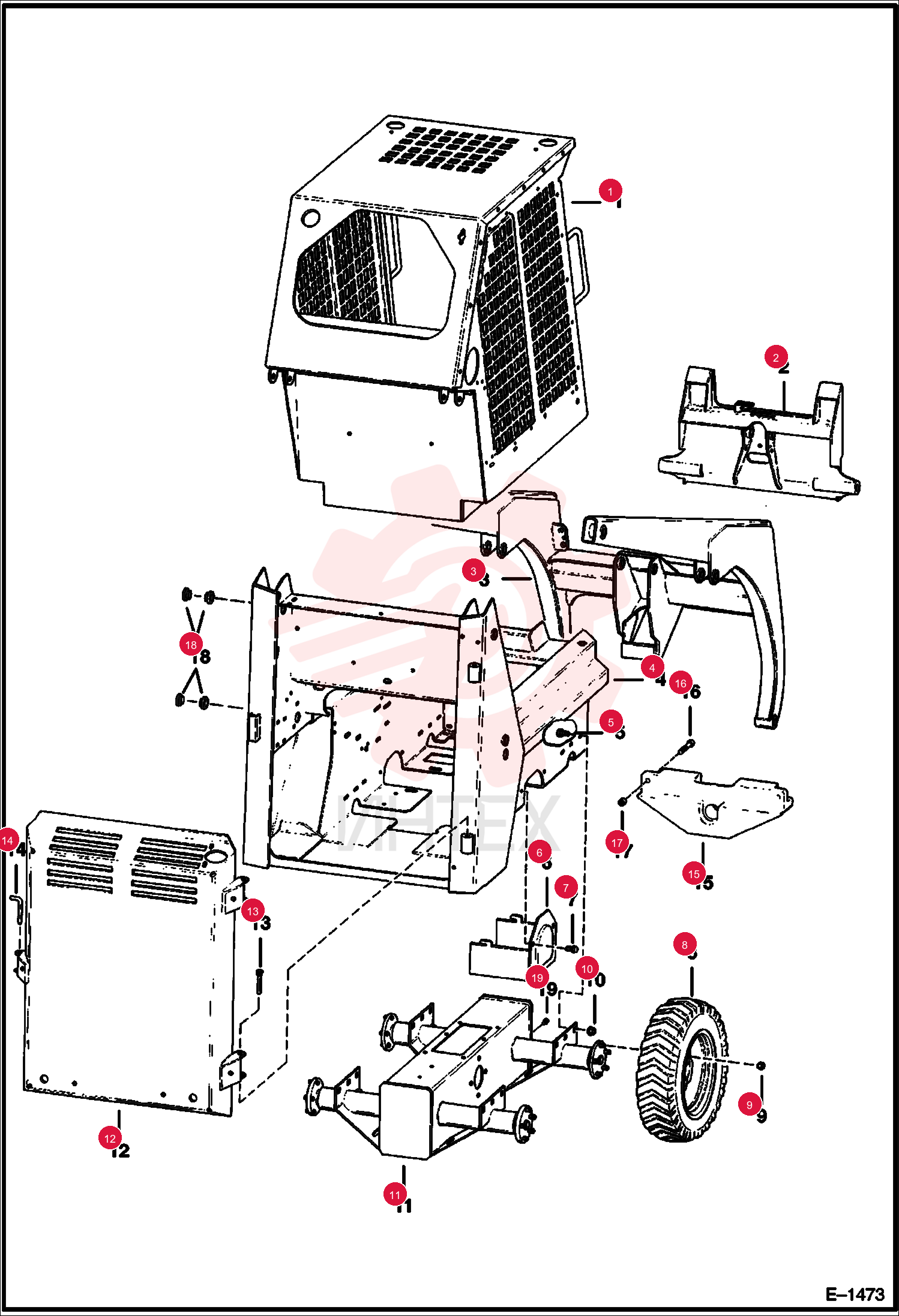

FRAME, MAIN 6713926

FRAME, MAIN 6713926

FRAME, MAIN 6713926

1 6713926

  • 6713926 - FRAME
  • MAIN
  • May Need To Order Battery Pan 6715086 and (2) 7C000624B bolts

2 37C820

  • 37C820 - BOLT SQ NECK RND HD

3 6564185

  • 6564185 - SHIELD

4 6564185

  • 6564185 - SHIELD

5 6718144

  • 6718144 - COVER

6 6718144

  • 6718144 - COVER

7 84G3712

  • 84G3712 - SCREW THD ROLLING TT

8 6561152

  • 6561152 - NUT
  • WHEEL 5

9 83D8

  • 83D8 - LKNUT HEX FLG GR8

10 6564340

  • 6564340 - PIN HINGE

11 6564192

  • 6564192 - PIN LATCH

12 6564681

  • 6564681 - COUNTERWEIGHT

13 17C828

  • 17C828 - BOLT

14 57D8

  • 57D8 - NUT 10

15 6563829

  • 6563829 - BUSHING
  • weld-on

16 6731121

  • 6731121 - PLUG RECESSED PIPE
  • Was 11F000012B
