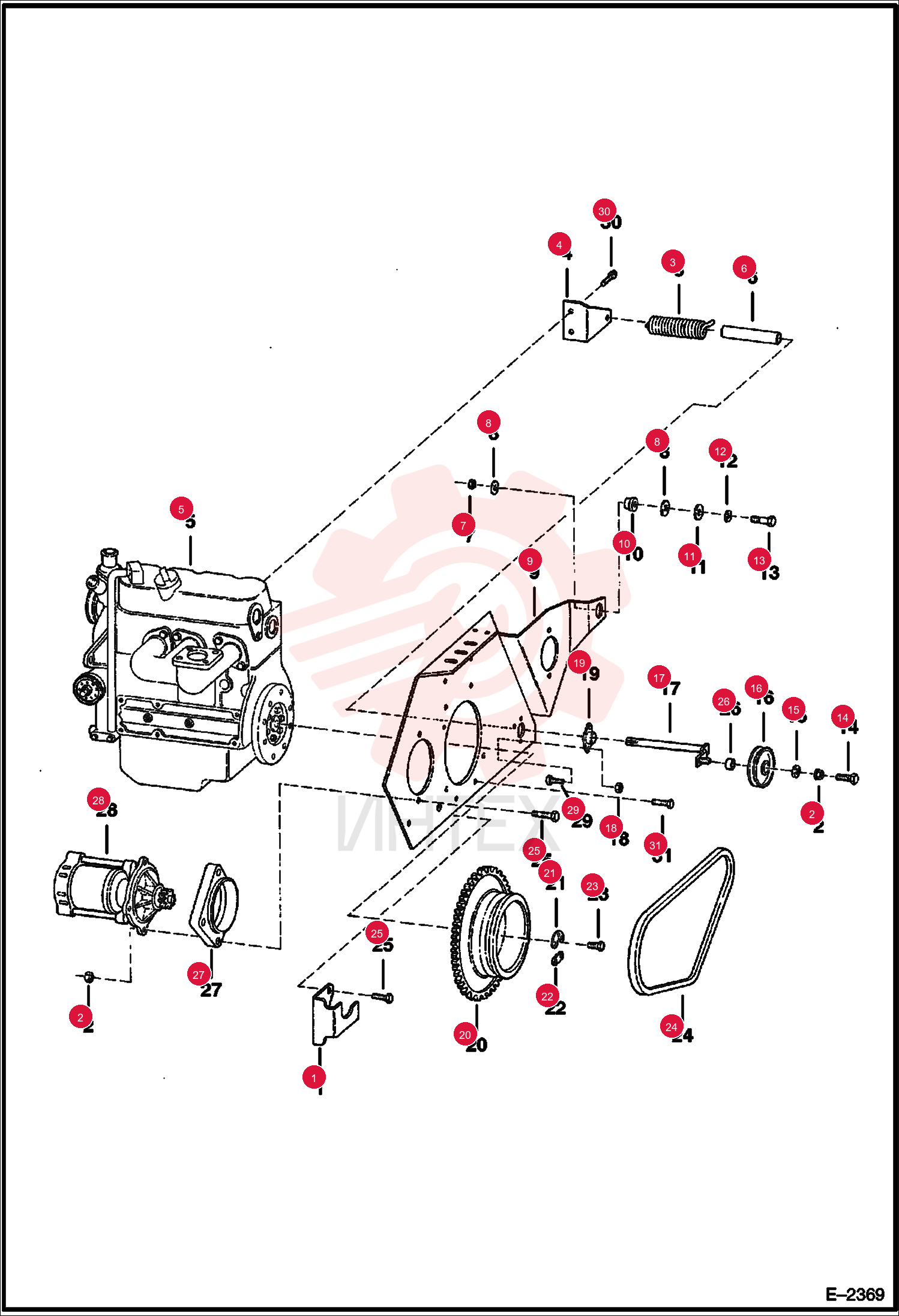

SHIELD 6713874

SHIELD 6713874

SHIELD 6713874

1 6713874

  • 6713874 - SHIELD
  • starter

2 83D6

  • 83D6 - LKNUT HEX FLG GR8

3 6678782

  • 6678782 - SPRING
  • Was 6564892

4 6713600

  • 6713600 - IDLER MT
  • idler

5 6564788

  • 6564788 - TUBE

6 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

7 6564692

  • 6564692 - WASHER

8 6727765

  • 6727765 - ENG MT ASMBLY
  • Engine - Was 6713606

9 6560633

  • 6560633 - DAMPER
  • VIBRATION
  • Rubber

10 6565472

  • 6565472 - WASHER

11 25E21

  • 25E21 - WASHER FLAT PLAIN

12 17C844

  • 17C844 - BOLT

13 17C620

  • 17C620 - BOLT

14 27E6

  • 27E6 - WASHER HARDEN PLAIN
  • Use W/Ref. 16 (NLA/6564011 pulley)

15 6689692

  • 6689692 - PULLEY
  • IDLER
  • Was 6689645

16 6532348

  • 6532348 - BRACKET
  • W/stud

17 61D4

  • 61D4 - NUT 5

18 6599468

  • 6599468 - BEARING

19 6800424

  • 6800424 - GEAR

20 6713599

  • 6713599 - FLYWHEEL ASSEMBLY
  • W/Ring Gear

21 6598847

  • 6598847 - WASHER

22 6598846

  • 6598846 - WASHER

23 6661636

  • 6661636 - BOLT
  • Washer face

24 6564091

  • 6564091 - BELT

25 17C636

  • 17C636 - BOLT

26 6532347

  • 6532347 - TUBE SPACER
  • Use W/Ref. 16 (NLA/6564011 pulley)

27 6713778

  • 6713778 - BLOCK

28 17C412

  • 17C412 - BOLT 5

29 6719825

  • 6719825 - SCREW FLTHD HEX CAP
  • Was 5CM01020B

30 4CM816

  • 4CM816 - SCREW HEX HD 8.8
  • Was 1CM816
