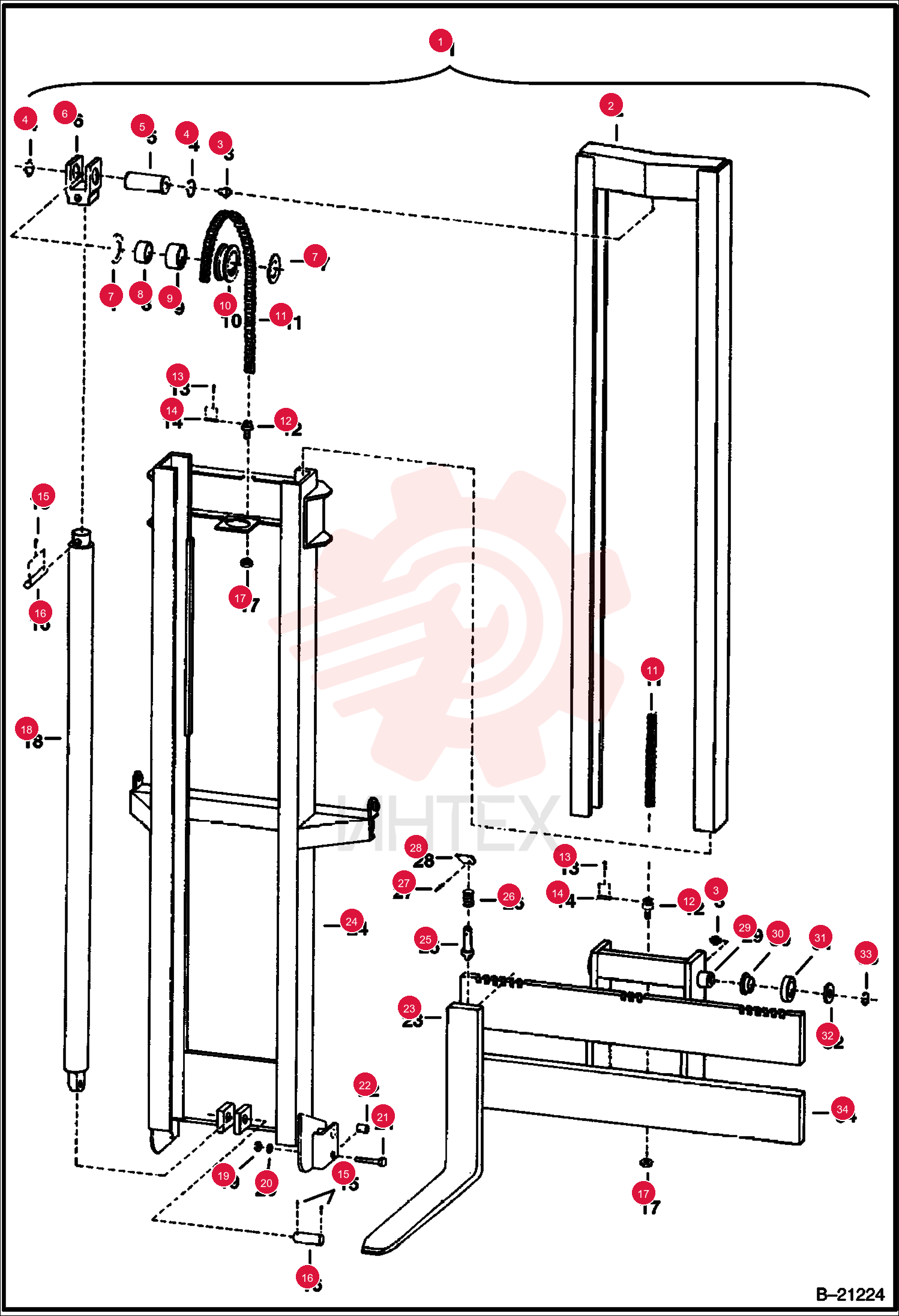

MAST 6508775
1 6508775
- 6508775 - MAST
- 10' (3048mm) lift - Ref. 2
- 24 & 29 - 34
2 6508821
- 6508821 - MAST
- 12' (3657
- 6mm) lift - Ref. 2
- 24 & 29 - 34
3 6515317
- 6515317 - CHANNEL
- inner - 10' (3048mm) lift
4 6515318
- 6515318 - CHANNEL
- inner - 12' (3657
- 6mm) lift
5 6518200
- 6518200 - FITTNG
- GREASE 10
6 6515349
- 6515349 - RETAINER
7 6515326
- 6515326 - HEAD
- cylinder rod
8 6515348
- 6515348 - WASHER
- thrust
9 6515350
- 6515350 - RACE
- chain roller bearing
10 6515346
- 6515346 - BEARING
- chain roller
11 6515347
- 6515347 - ROLLER
- chain
12 6515342
- 6515342 - CHAIN
- leaf P - 87 pitches
13 6515343
- 6515343 - CHAIN
- leaf P - 99 pitches
14 6515339
- 6515339 - ANCHOR
- chain
15 1F316
- 1F316 - PIN
16 6515340
- 6515340 - PIN
- chain connector
17 1F416
- 1F416 - PIN
- Was 1F000412B
18 6515356
- 6515356 - PIN
- cylinder attachment
19 6515344
- 6515344 - NUT
- chain anchor
20 6515321
- 6515321 - CYLINDER
- 10' LIFT
21 6515322
- 6515322 - CYLINDER
- 12' LIFT
22 61D8
- 61D8 - NUT 5
23 4E8
- 4E8 - WASHER
24 17C848
- 17C848 - BOLT
25 6515319
- 6515319 - CHANNEL
- outer 10' (3048mm) lift
26 6515320
- 6515320 - CHANNEL
- outer 12' (3657
- 6mm) lift
27 6517884
- 6517884 - PIN
28 6517882
- 6517882 - SPRING
29 666888
- 666888 - PIN
30 6517883
- 6517883 - LEVER
31 6515354
- 6515354 - BUSHING
32 6515353
- 6515353 - ROLLER
33 6515351
- 6515351 - PAD
34 6515352
- 6515352 - RING
- RETAINER
35 6515338
- 6515338 - CARRIAGE
- 42" (1066
- 8mm) wide
