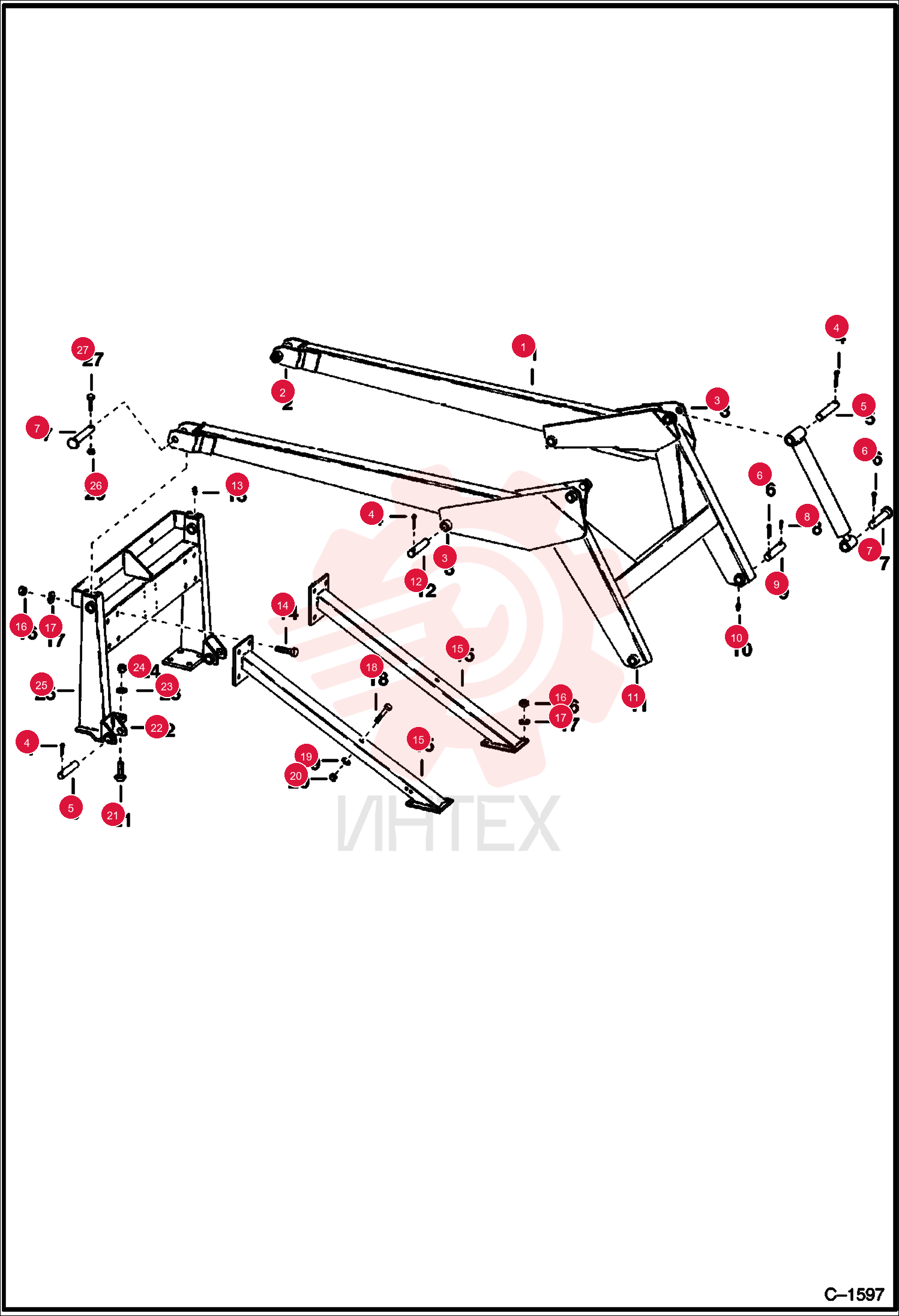

COLLAR 6502898 (1)

COLLAR 6502898 (1)

COLLAR 6502898 (1)

1 6502898

  • 6502898 - COLLAR
  • pin - .89 in I.D. x 1.37 in O.D. x .76 in (22
  • 61 mm x 34
  • 80 mm x 19
  • 30 mm)

2 1F632

  • 1F632 - PIN

3 6502325

  • 6502325 - PIN
  • .866" x 4.25" (21
  • 30mm x 107
  • 95mm)

4 6502783

  • 6502783 - PIN
  • .871" x 4.88" (22
  • 12mm x 123
  • 95mm)

5 675351

  • 675351 - ROLL PIN

6 10H25

  • 10H25 - FTG GREASE STRAIGHT

7 6502326

  • 6502326 - PIN
  • .866" x 3.62" (21
  • 30mm x 91
  • 93mm)

8 10H35

  • 10H35 - FTG GREASE STRAIGHT

9 17C824

  • 17C824 - BOLT 5

10 61D8

  • 61D8 - NUT 5

11 4E8

  • 4E8 - WASHER

12 17C640

  • 17C640 - BOLT

13 4E6

  • 4E6 - WASHER

14 61D6

  • 61D6 - NUT HEX FINISHED GR5

15 6514516

  • 6514516 - SCREW

16 4E10

  • 4E10 - WASHER

17 61D10

  • 61D10 - NUT

18 91D5

  • 91D5 - NUT 5
  • Was 81D000005B

19 17C532

  • 17C532 - BOLT 5
