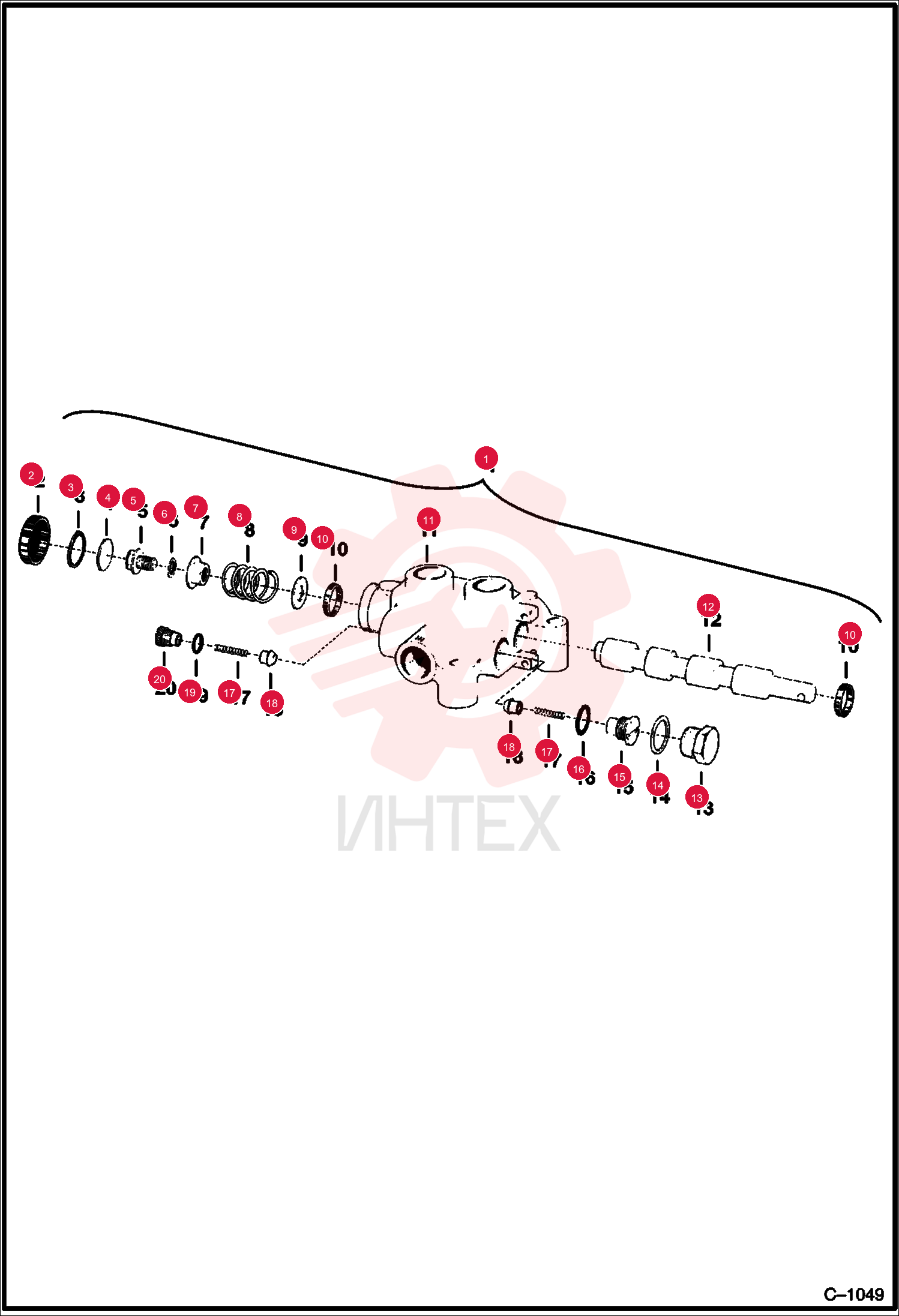

VALVE 6504942 (3)

VALVE 6504942 (3)

VALVE 6504942 (3)

1 6504942

  • 6504942 - VALVE
  • Ref. 2 - 20

2 6515030

  • 6515030 - CAP
  • rubber

3 1318338

  • 1318338 - RING

4 6515015

  • 6515015 - DISC
  • stop

5 89G408

  • 89G408 - BOLT

6 6515228

  • 6515228 - WASHER
  • shakeproof

7 6515014

  • 6515014 - COLLAR
  • stop

8 6515034

  • 6515034 - SPRING
  • centering

9 6515239

  • 6515239 - WASHER
  • stop

10 6515313

  • 6515313 - SEAL 5
  • spool

11 6515033

  • 6515033 - CAP

12 6515019

  • 6515019 - GASKET

13 6515232

  • 6515232 - PLUG
  • seat

14 79K8

  • 79K8 - O RING 10

15 6515082

  • 6515082 - SPRING

16 6515078

  • 6515078 - POPPET
  • check

17 1318339

  • 1318339 - ORING

18 6515233

  • 6515233 - PLUG
  • Check Assy (W/ O-Ring
  • Poppet & Spring
