Bobcat
/
600.0
/

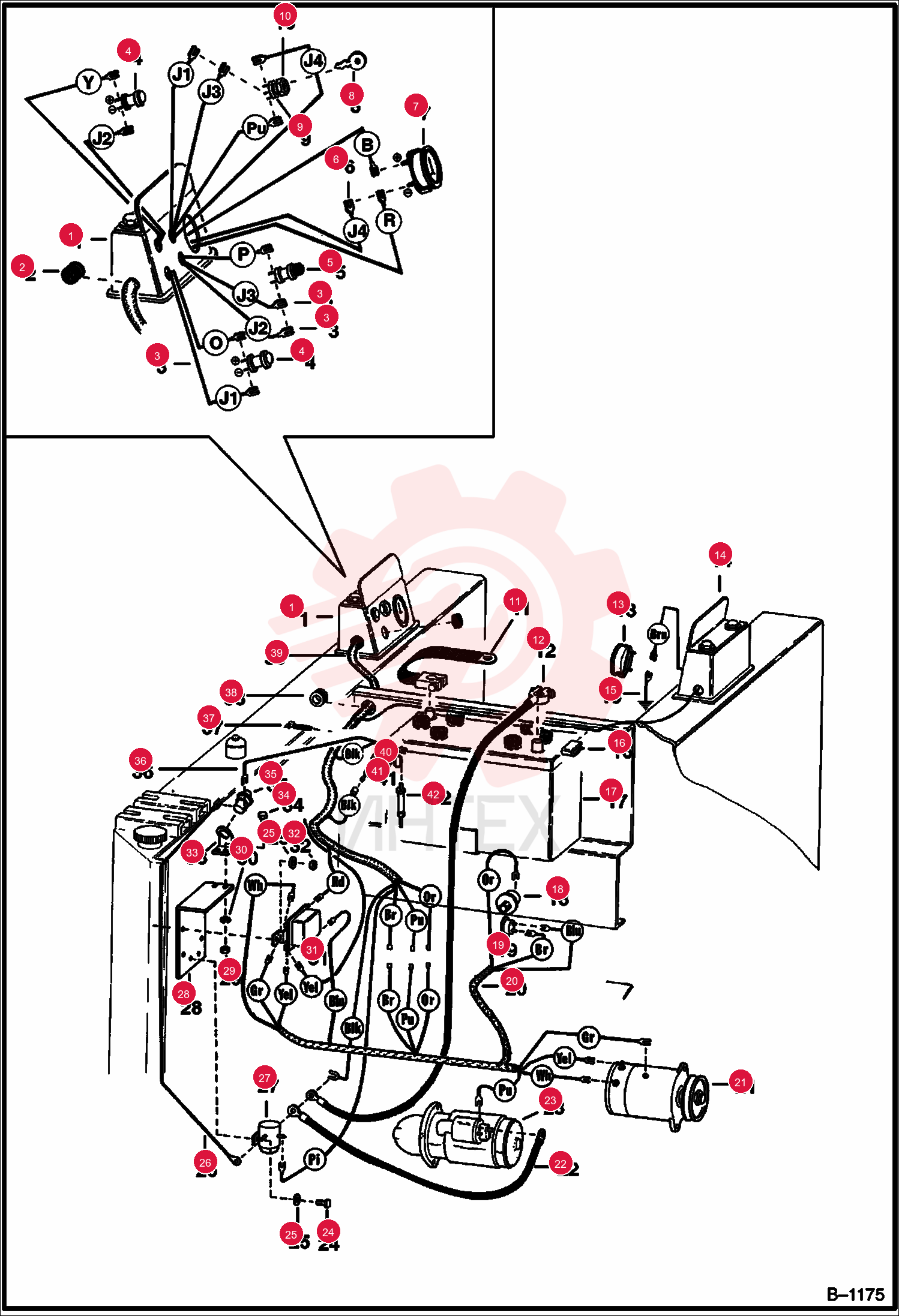

LIGHT 6515427

LIGHT 6515427

LIGHT 6515427

1 6515427

  • 6515427 - LIGHT
  • oil pressure

2 6632973

  • 6632973 - SWITCH
  • pre-heater - Was 600259B

3 6512807

  • 6512807 - AMMETER
  • ammeter

4 6505412

  • 6505412 - KEY 5
  • ignition

5 6518763

  • 6518763 - SWITCH
  • ignition

6 6502904

  • 6502904 - NUT
  • ignition switch

7 6553094

  • 6553094 - CABLE
  • battery

8 6515494

  • 6515494 - CABLE
  • battery

9 6660109

  • 6660109 - HOURMETER
  • Was 6551203

10 7312552

  • 7312552 - BATTERY 650 CCA DRY
  • - Was 6674687

11 6630154

  • 6630154 - CAP
  • gang - Danger

12 6630155

  • 6630155 - CAP
  • gang - Poison

13 6514898

  • 6514898 - 6 CAPS
  • tilt-tite

14 6515752

  • 6515752 - SWITCH
  • oil pressure

15 1550963

  • 1550963 - SWITCH
  • hourmeter

16 743367

  • 743367 - CABLE

17 25E13

  • 25E13 - WASHER FLAT PLAIN

18 6516069

  • 6516069 - WIRE

19 6631939

  • 6631939 - SOLENOID
  • pre-heater

20 61D4

  • 61D4 - NUT 5

21 4E4

  • 4E4 - WASHER

22 4109119

  • 4109119 - REGULATOR
  • voltage

23 81D4

  • 81D4 - NUT

24 17C412

  • 17C412 - BOLT 5

25 4102150

  • 4102150 - PLUG
  • glow plug

26 6519258

  • 6519258 - COIL
  • glow plug

27 6516069

  • 6516069 - WIRE

28 6515196

  • 6515196 - STRAP
  • lock

29 608869

  • 608869 - FUSE

30 6512584

  • 6512584 - GLOW PLUG
