Bobcat
/
600.0
/

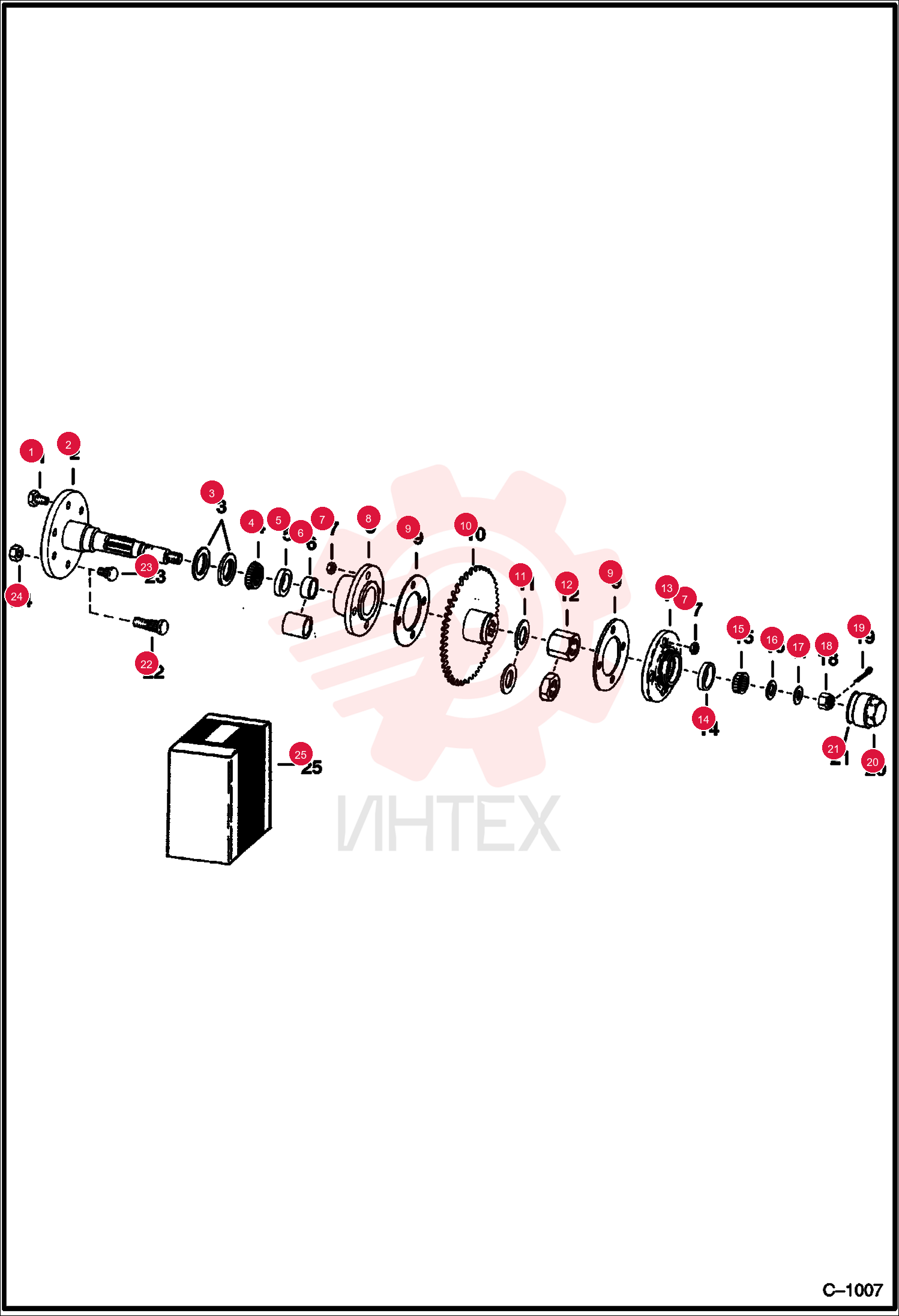

SCREW 6515793 (1)

SCREW 6515793 (1)

SCREW 6515793 (1)

1 6515793

  • 6515793 - SCREW
  • wheel

2 6542554

  • 6542554 - AXLE W/HUB
  • rear - W/Ref. 23 & 24

3 6542553

  • 6542553 - ASSY
  • AXLE
  • front - W/Ref. 23 & 24

4 6515000

  • 6515000 - SEAL

5 6648774

  • 6648774 - BEARING
  • Was 743778B

6 6648776

  • 6648776 - RACE
  • Was 743777B

7 6502289

  • 6502289 - SPACER
  • rear

8 81D8

  • 81D8 - NUT

9 6502533

  • 6502533 - HUB

10 6502209

  • 6502209 - GASKET

11 6504794

  • 6504794 - SPROCKET

12 6502290

  • 6502290 - WASHER
  • Front

13 6502649

  • 6502649 - WASHER
  • rear

14 6502534

  • 6502534 - HUB

15 713024

  • 713024 - CUP

16 713023

  • 713023 - BRG CONE

17 799087

  • 799087 - WASHER

18 6557323

  • 6557323 - WASHER

19 6D14

  • 6D14 - NUT
  • cotter

20 1F424

  • 1F424 - PIN

21 25K40212

  • 25K40212 - O RING 10

22 6709170

  • 6709170 - BOLT WHEEL
  • For Track - Was 6519595

23 6709170

  • 6709170 - BOLT WHEEL
  • Was 6559502

24 6564669

  • 6564669 - NUT WHEEL
  • wheel - Was 6519169

25 6563442

  • 6563442 - KIT
  • AXLE SEAL
  • axle seal
