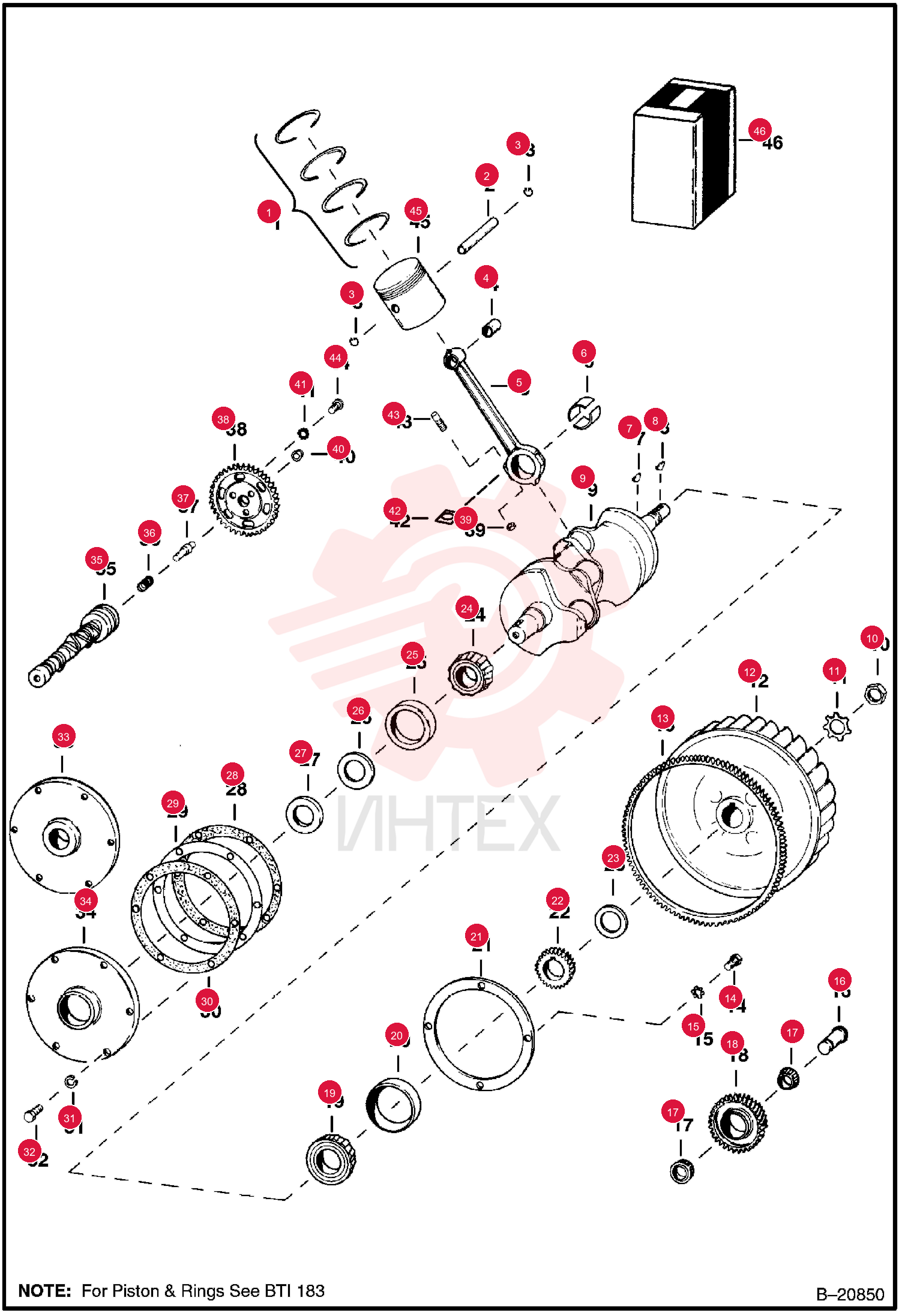

SET, RING 6516464
1 6516464
- 6516464 - SET
- RING
- Std.
2 6516466
- 6516466 - RG SET 4P
- .020" (0
- 51mm)
3 6516467
- 6516467 - SET
- RING
- .030" (0
- 76mm)
4 6516468
- 6516468 - SET
- RING
- trichrome - std
5 6516469
- 6516469 - SET
- RING
- Trichrome - .010" (0
- 25mm)
6 6516471
- 6516471 - SET
- RING
- trichome - .030 (0
- 76mm)
7 6630712
- 6630712 - SET
- RING
- Std. 4 Ring
8 6630713
- 6630713 - SET
- RING
- .010" (0
- 25 mm) - 4 Ring - Two Ring Sets
9 6630714
- 6630714 - SET
- RING
- .020" (0
- 51 mm) - 4 Ring - Two Ring Sets
10 6630715
- 6630715 - SET
- RING
- .030" (0
- 76 mm) - 4 Ring - Two Ring Sets
11 6516470
- 6516470 - SET
- RING
- Trichrome - .020" (0
- 51mm) - Complete Set
12 6517474
- 6517474 - PIN
- piston - .010" (0
- 25 mm)
13 6516476
- 6516476 - PIN
- piston - Std.
14 6516463
- 6516463 - RETAINER
15 6516485
- 6516485 - ROD
- VF4D engine - W/Ref. 4
- 39 & 43
16 6517472
- 6517472 - ROD
- VH4D engine - W/Ref. 4
- 39 & 43
17 6517475
- 6517475 - BRG PAIR
- VH4D engine - Std. - 1 Bearing
18 6516486
- 6516486 - BEARING
- VF4D engine - Std.
19 6516487
- 6516487 - BEARING
- VF4D engine - .001" (0
- 03 mm)
20 6516488
- 6516488 - BEARING
- VF4D engine - .002" (0
- 05 mm)
21 6517478
- 6517478 - BRG PAIR
- VH4D engine - .010" (0
- 25 mm)
22 6516489
- 6516489 - BEARING
- VF4D engine - .010" (0
- 25 mm)
23 6517479
- 6517479 - BRG PAIR
- VH4D engine - .020" (0
- 51 mm)
24 6516490
- 6516490 - BEARING
- VF4D engine - .020" (0
- 51 mm)
25 6J1011
- 6J1011 - KEY
26 6516449
- 6516449 - NUT
27 6516682
- 6516682 - GEAR
- RING
28 7G512
- 7G512 - SCREW
29 6E5
- 6E5 - WASHER INTL T LOCK
30 6516523
- 6516523 - STUD
- idler gear
31 6517514
- 6517514 - BEARING
32 6660248
- 6660248 - GEAR
- idler
33 6516452
- 6516452 - BEARING
- front - W/Ref. 20
34 6516525
- 6516525 - PLATE
- bearing retainer
35 6516451
- 6516451 - GEAR
- crankshaft
36 6516450
- 6516450 - SLINGER
- oil
37 872144
- 872144 - BEARING
- rear - W/Ref. 25
38 6516456
- 6516456 - GASKET
39 6516458
- 6516458 - GASKET
40 4E6
- 4E6 - WASHER
41 17C620
- 17C620 - BOLT
42 6511300
- 6511300 - PLATE
- main bearing
43 6516517
- 6516517 - CAMSHAFT
- VH4D engine
44 6516516
- 6516516 - CAMSHAFT
- VF4D engine
45 6516518
- 6516518 - SPRING
46 6516519
- 6516519 - PLUNGER
- thrust
47 6516520
- 6516520 - GEAR
- camshaft
48 86D5
- 86D5 - NUT
49 6516522
- 6516522 - BUTTON
50 6516521
- 6516521 - WASHER
51 6516460
- 6516460 - SHIM
52 6516461
- 6516461 - BOLT
53 17C516
- 17C516 - BOLT
54 6630708
- 6630708 - PISTON
- std - 4 ring - Was 6516472
55 6630709
- 6630709 - PISTON
- .010 (0
- 25mm) - ring - Was 6516473
56 6630710
- 6630710 - PISTON
- .020 (0
- 51mm) - 4 Ring - Was 6516474
57 6630708
- 6630708 - PISTON
- std - 4 ring - one piston
58 6630709
- 6630709 - PISTON
- .010" (0
- 25 mm) 4 Ring
59 6630710
- 6630710 - PISTON
- .020" (0
- 51mm) 4 Ring
60 6630711
- 6630711 - PISTON
- .030" (0
- 76 mm) 4 Ring
61 6516524
- 6516524 - GEAR ASSEMBLY
- Ref. 16 - 18
