Bobcat
/
600.0
/

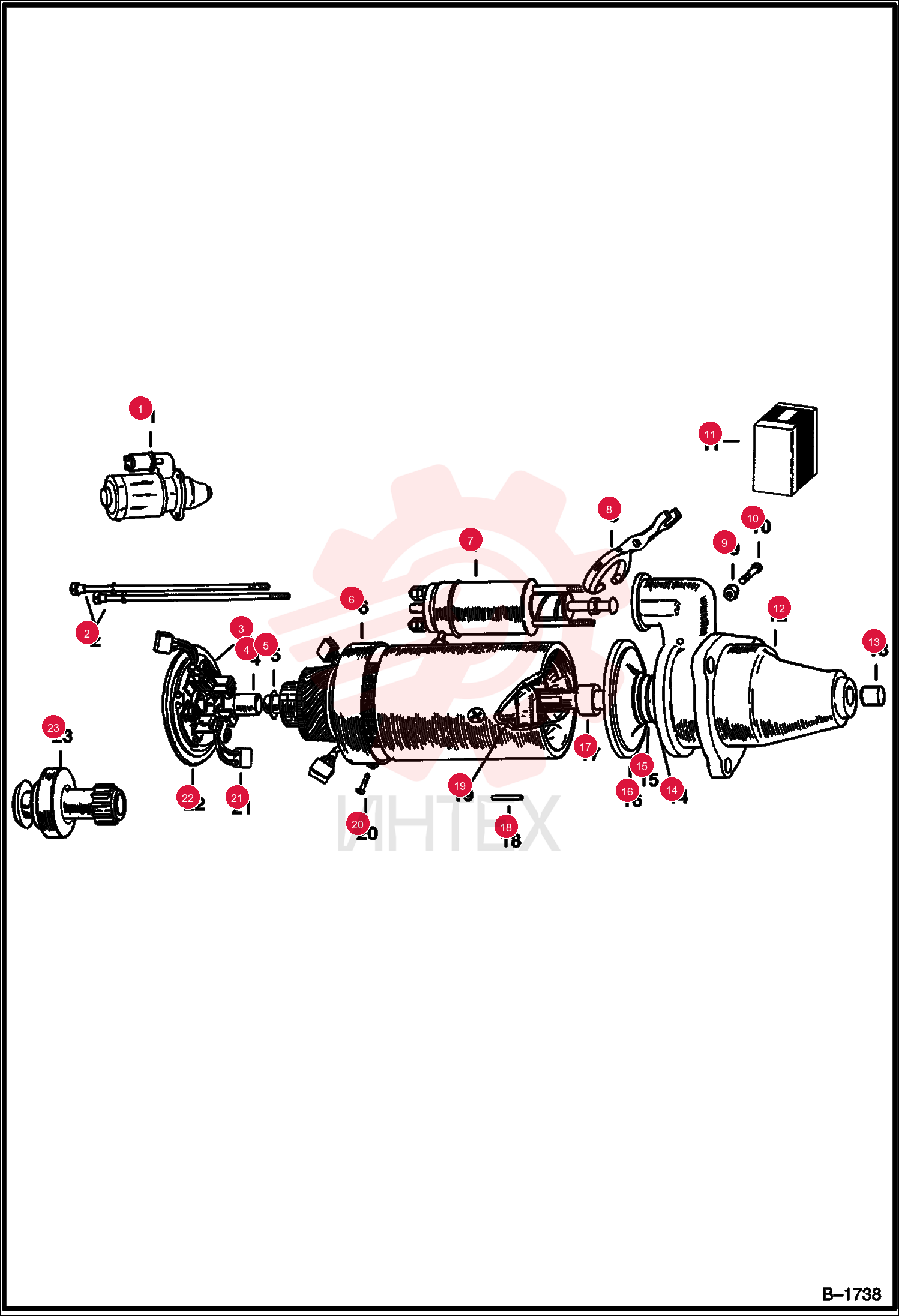

STARTER 6519411

STARTER 6519411

STARTER 6519411

1 6519411

  • 6519411 - STARTER
  • Model M45G Series 26302

2 6516729

  • 6516729 - BOLT

3 6516735

  • 6516735 - SPRING
  • brush tension - Set of 4

4 6519987

  • 6519987 - BUSHING

5 6519997

  • 6519997 - WASHER
  • thrust

6 6516734

  • 6516734 - BAND
  • cover

7 6519998

  • 6519998 - SOLENOID

8 6519989

  • 6519989 - LEVER
  • engagement

9 3883464

  • 3883464 - NUT
  • pivot bolt

10 6519988

  • 6519988 - BOLT
  • pivot

11 3883456

  • 3883456 - KIT
  • secondary parts

12 6519993

  • 6519993 - BRACKET
  • drive end

13 6598440

  • 6598440 - BUSHING

14 6519990

  • 6519990 - WASHER

15 3883454

  • 3883454 - SPRING
  • brake shoe

16 6519995

  • 6519995 - FRAME
  • brake - W/Ref. 17

17 6519996

  • 6519996 - BUSHING

18 6519991

  • 6519991 - PIN

19 3883461

  • 3883461 - COIL
  • field

20 3883457

  • 3883457 - BRUSHES
  • Set of 4

21 6519986

  • 6519986 - FRAME
  • commutator

22 6519992

  • 6519992 - DRIVE ASSEMBLY
