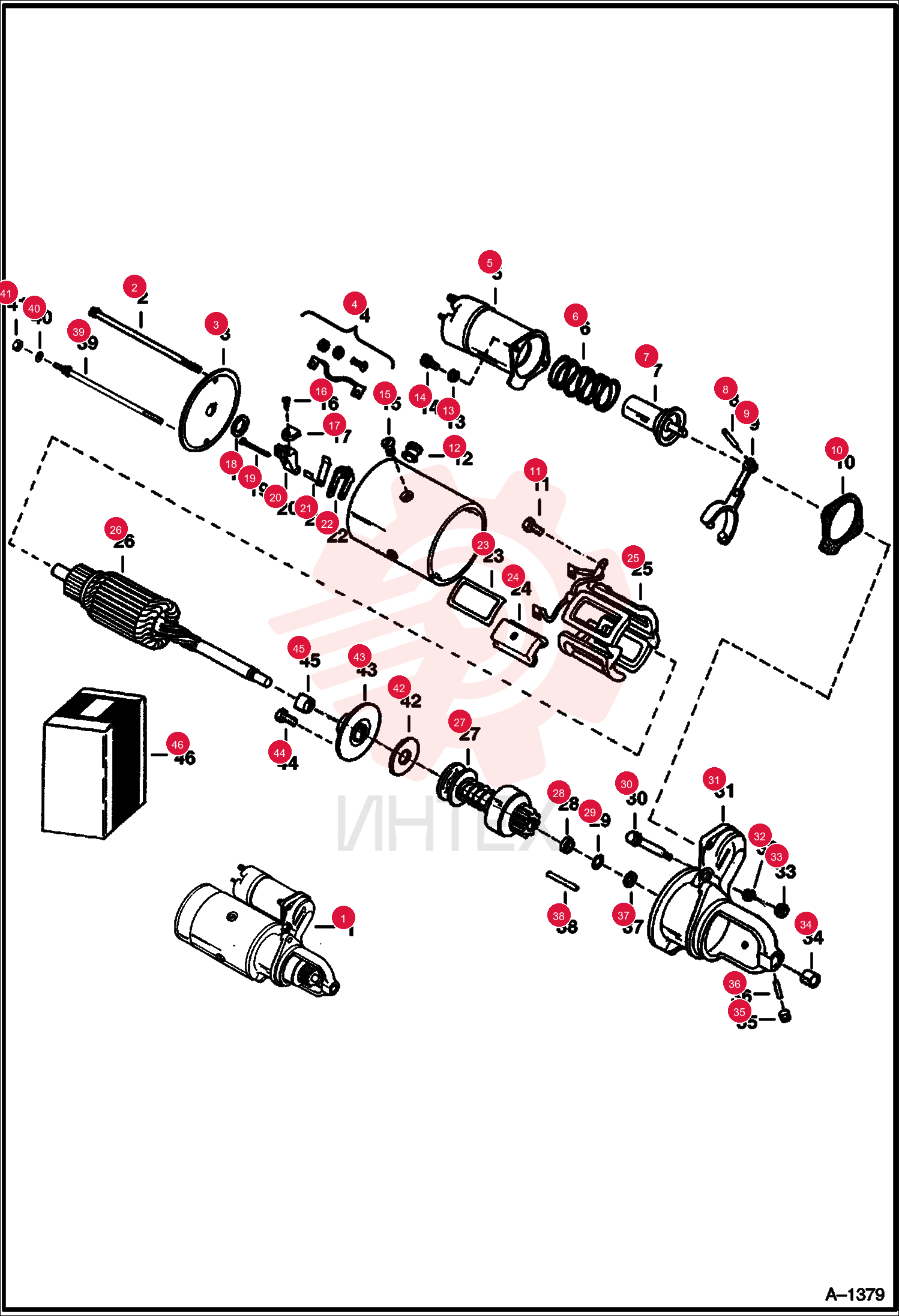

STARTER 6515795REM
1 6515795REM
- 6515795REM - STARTER
- 1109424 - Remanufactured
2 880609
- 880609 - BOLT
3 877650
- 877650 - SUPPORT
- Brush
4 884581
- 884581 - SWITCH
- 1109424
5 6599449
- 6599449 - SOLENOID
- 10455336
6 888968
- 888968 - SPRING
7 6630417
- 6630417 - PLUNGER
- 1109424
8 6658903
- 6658903 - PLUNGER
- 10455336
9 896126
- 896126 - LEVER
- 1109424
10 6658926
- 6658926 - COVER
11 6061008
- 6061008 - SCREW
12 4E4
- 4E4 - WASHER
13 43G412
- 43G412 - SCREW
14 859377
- 859377 - SCREW
15 871518
- 871518 - BRUSH
16 871521
- 871521 - PIN
17 6630402
- 6630402 - BR HOLDER
- Brush - Insulated - Was 891252B
18 6656399
- 6656399 - SPRING
- Brush
19 880603
- 880603 - HOLDER
- Brush - Grounded
20 6656404
- 6656404 - INSULTOR
21 6515799
- 6515799 - COIL
- 1107386
22 6515800
- 6515800 - ARMATURE
- 1109424
23 3679995
- 3679995 - DRIVE
24 942142
- 942142 - SNAP RING
25 884576
- 884576 - BOLT.
26 6631616
- 6631616 - HOUSING
- Drive - W/Ref. 34
27 860669
- 860669 - BUSHING
- Drive end
28 16F2
- 16F2 - PLUG
29 850363
- 850363 - COLLAR
30 850313
- 850313 - PIN
31 6515797
- 6515797 - BOLT
32 4E4
- 4E4 - WASHER
- Was 24E00004B
33 61D4
- 61D4 - NUT 5
34 6630412
- 6630412 - GASKET
35 6630411
- 6630411 - PLATE
- center bearing
36 6551289
- 6551289 - KIT
- Starter bracket - Ref. 39-41 plus 6511660 starter bracket
