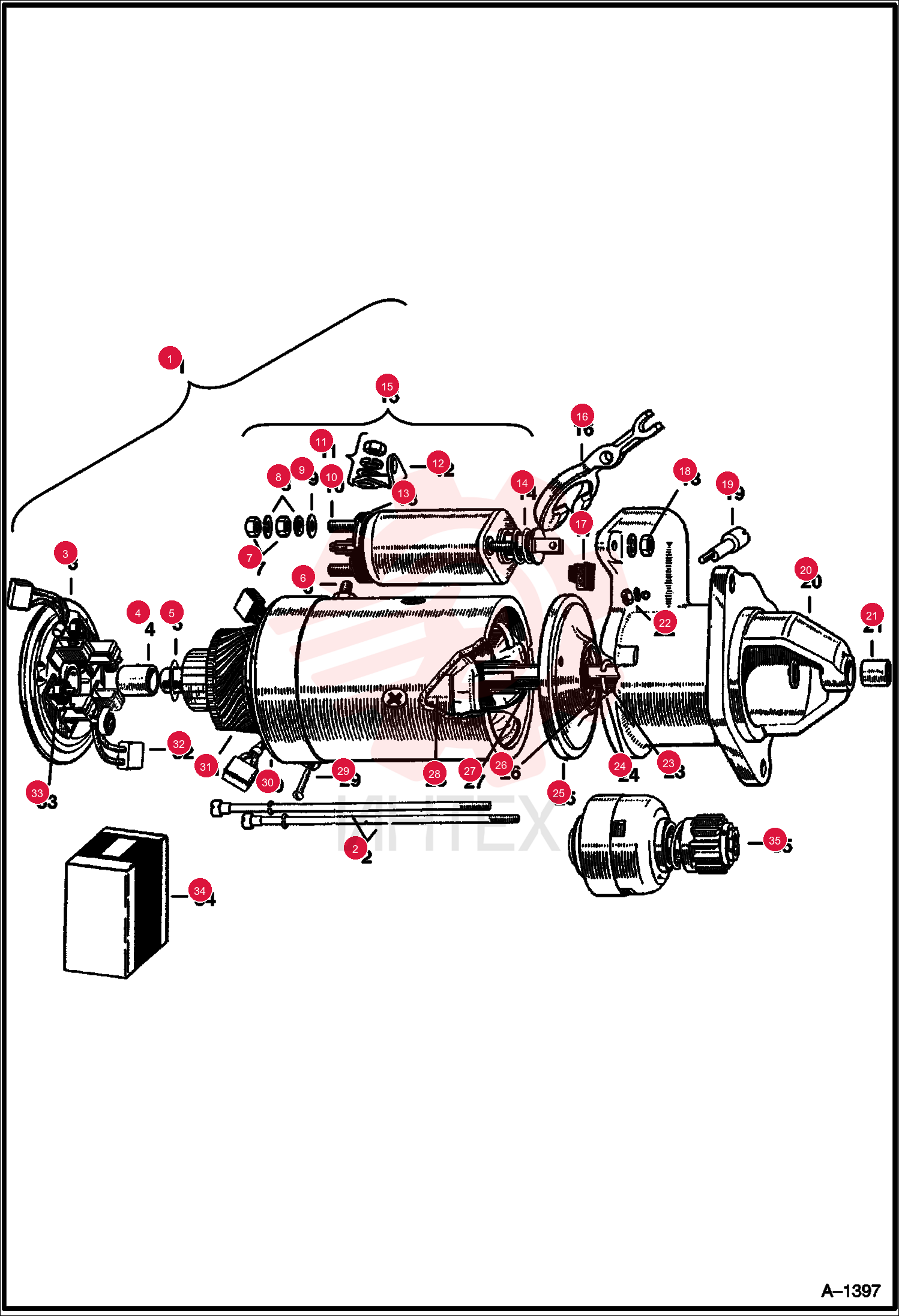

STARTER 6516728
1 6516728
- 6516728 - STARTER
- Model M45G Series 21670
2 6516729
- 6516729 - BOLT
3 3883498
- 3883498 - FRAME
4 3883455
- 3883455 - BUSHING
5 3883436
- 3883436 - WASHER
6 3883441
- 3883441 - WASHER
7 3883434
- 3883434 - SCREW
- terminal
8 3883466
- 3883466 - LEAD
- solenoid to coil
9 3883488
- 3883488 - SPRING
- plunger
10 6516731
- 6516731 - SOLENOID
11 3883467
- 3883467 - LEVER
- engagement
12 3883465
- 3883465 - GROMMET
- drive end bracket
13 6516732
- 6516732 - SCREW
- pivot
14 6516733
- 6516733 - BRACKET
- W/Ref. 21
15 3883505
- 3883505 - BUSHING
16 3883464
- 3883464 - NUT
- pivot screw
17 3883459
- 3883459 - WASHER
- retaining
18 3883460
- 3883460 - WASHER
- brake driving - Was 3884360
19 3883508
- 3883508 - FRAME
- brake - W/Ref. 27
20 3883468
- 3883468 - BRAKE SHOE
- W/spring
21 3883454
- 3883454 - SPRING
- brake shoe
22 3883506
- 3883506 - BUSHING
- brake frame
23 3883461
- 3883461 - COIL
- field - Set of 4
24 3883440
- 3883440 - NUT
25 3883491
- 3883491 - SCREW
- cover band
26 6516734
- 6516734 - BAND
- cover - W/Ref. 29
27 3883503
- 3883503 - ARMATURE
28 3883457
- 3883457 - BRUSHES
- Set of 4
29 6516735
- 6516735 - SPRING
- brush tension - Set of 4
30 3883456
- 3883456 - KIT
- sundry parts
31 6516736
- 6516736 - DRIVE ASSEMBLY
