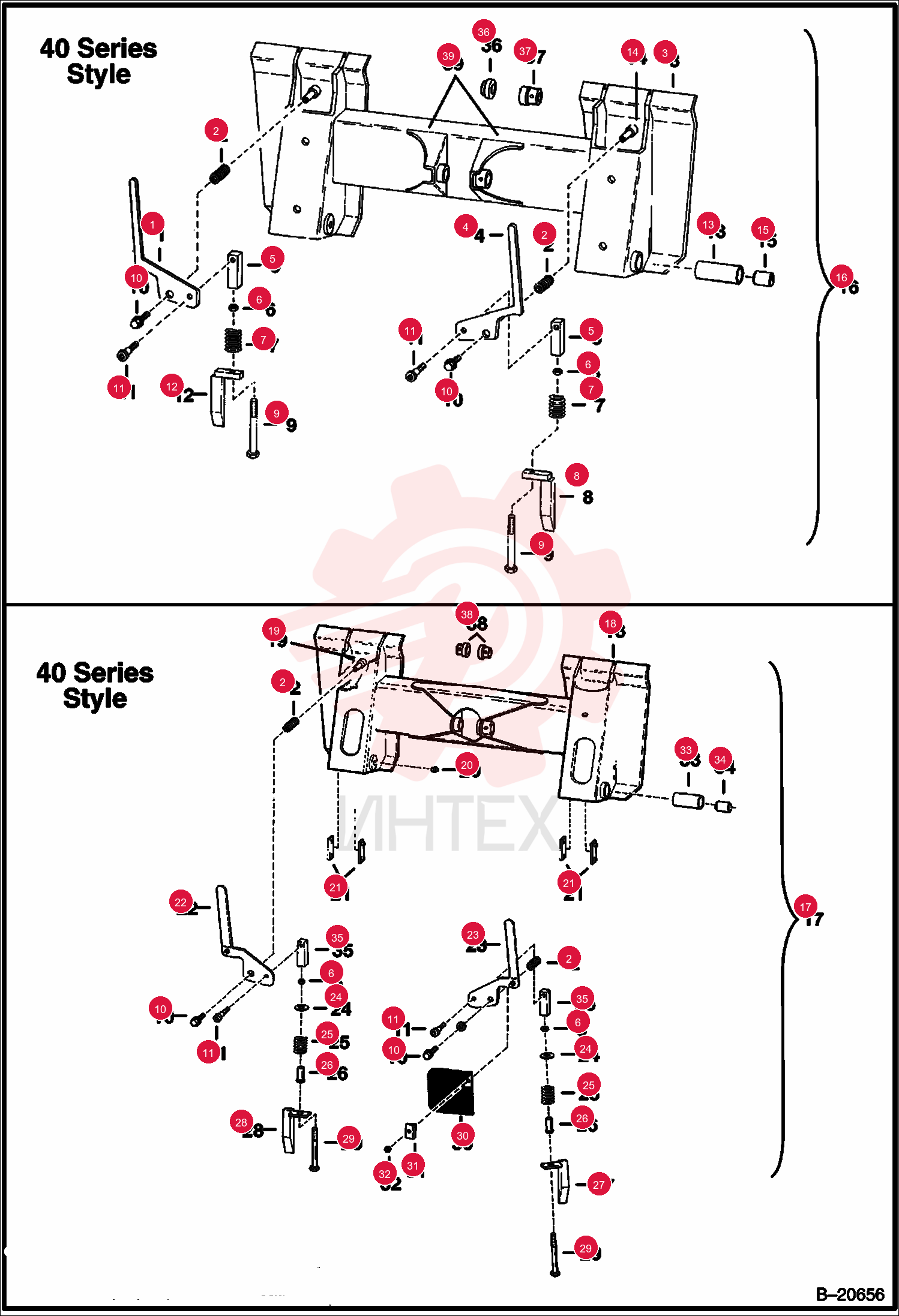

LEVER 6563106 (1)
1 6563106
- 6563106 - LEVER
- LH - Was 6579698
2 6704453
- 6704453 - SPRING COMPRESSION
- Was 6503387
3 6563107
- 6563107 - LEVER
- RH - 6579697
4 6565186
- 6565186 - BLOCK
- BOB-TACH WEDGE
5 7D8
- 7D8 - NUT 5
6 6548407
- 6548407 - SPRING
7 6548913
- 6548913 - WEDGE
- RH
8 17C896
- 17C896 - BOLT
9 35C608
- 35C608 - BOLT
- Was 6557232
10 661846
- 661846 - BOLT
11 6548912
- 6548912 - WEDGE
- LH
12 6558424
- 6558424 - BUSHING
- W/Ref. 15
13 6553843
- 6553843 - STUD
14 6554294
- 6554294 - BUSHING
15 6562013
- 6562013 - STUD
16 743332
- 743332 - FITTING
- GREASE 5
17 6562026
- 6562026 - INSERT 5
18 6563106
- 6563106 - LEVER
- LH
19 6563107
- 6563107 - LEVER
- RH
20 1303141
- 1303141 - SPACER
21 6578253
- 6578253 - SPRING
- COMPRESSION
- Was 6562018
22 6562019
- 6562019 - GUIDE
23 6565189
- 6565189 - WEDGE
- RH
24 6565190
- 6565190 - WEDGE
- LH
25 17C880
- 17C880 - BOLT
- 1/2'' x 5'' (12
- 7mm x 127mm)
26 17C884
- 17C884 - BOLT
- 1/2'' x 5-1/4'' (12
- 7mm x 133
- 35mm) - Use With 6565186 Block
27 6563103
- 6563103 - COVER
- rubber
28 6563108
- 6563108 - ANGLE 5
29 85D6
- 85D6 - NUT PRETRQ HEX LOCK
30 6565326
- 6565326 - BUSHING
- W/Ref. 34
31 6562067
- 6562067 - BUSHING
- PRESS FIT
32 6565186
- 6565186 - BLOCK
- BOB-TACH WEDGE
- Use Only With 17C000884B Bolt
33 6555989
- 6555989 - BUSHING
- Weld On
34 6557095
- 6557095 - BUSHING
- Weld On
35 6562642
- 6562642 - BUSHING
- WELD-ON
- Weld On
36 6557081
- 6557081 - GUSSET
- Weld On
