Bobcat
/
632.0
/

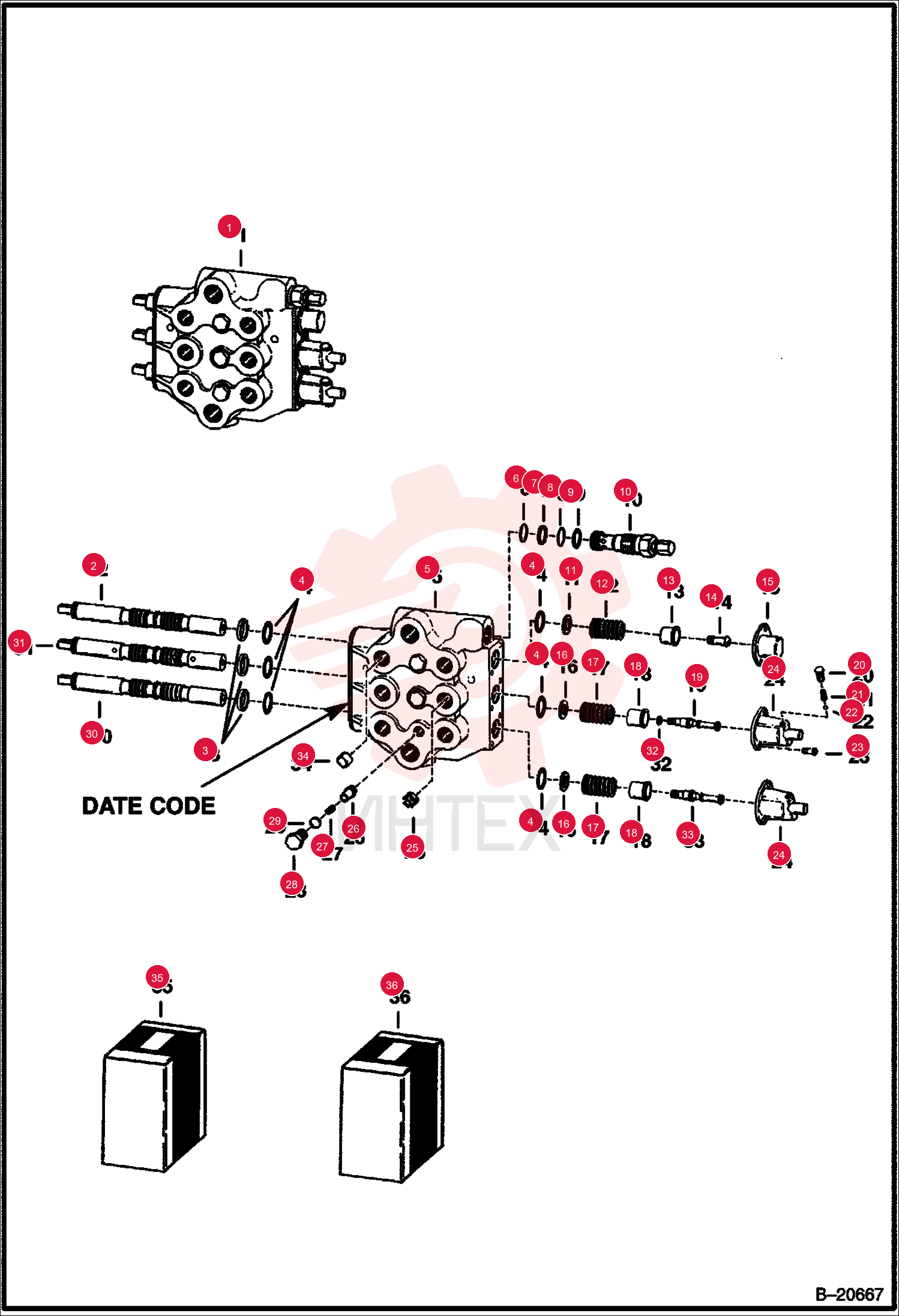

VALVE 6557603

VALVE 6557603

VALVE 6557603

1 6557603

  • 6557603 - VALVE
  • W/O Ref. 10

2 6557602

  • 6557602 - VALVE
  • RELIEF

3 6513446

  • 6513446 - PLUG
  • detent

4 6513445

  • 6513445 - SPRING
  • detent

5 6513443

  • 6513443 - BALL
  • detent

6 41G1210

  • 41G1210 - SCREW
  • Was 41G001208B

7 6599472

  • 6599472 - SPRING
  • Above Data Code 079

8 6514733

  • 6514733 - PLUG

9 6560939

  • 6560939 - ORIFICE
  • .086 (2
  • 18MM) DIA. -

10 6560312

  • 6560312 - KIT
  • detent cap - Ref. 20 - 22 & 24

11 6512792

  • 6512792 - KIT
  • tilt - Ref. 11 - 15

12 6512793

  • 6512793 - KIT
  • lift - Ref. 16 - 22
  • 24 & 32

13 6512795

  • 6512795 - SEAL KIT
  • Ref. 3
  • 4
  • 6 - 9
  • 29 & 32
