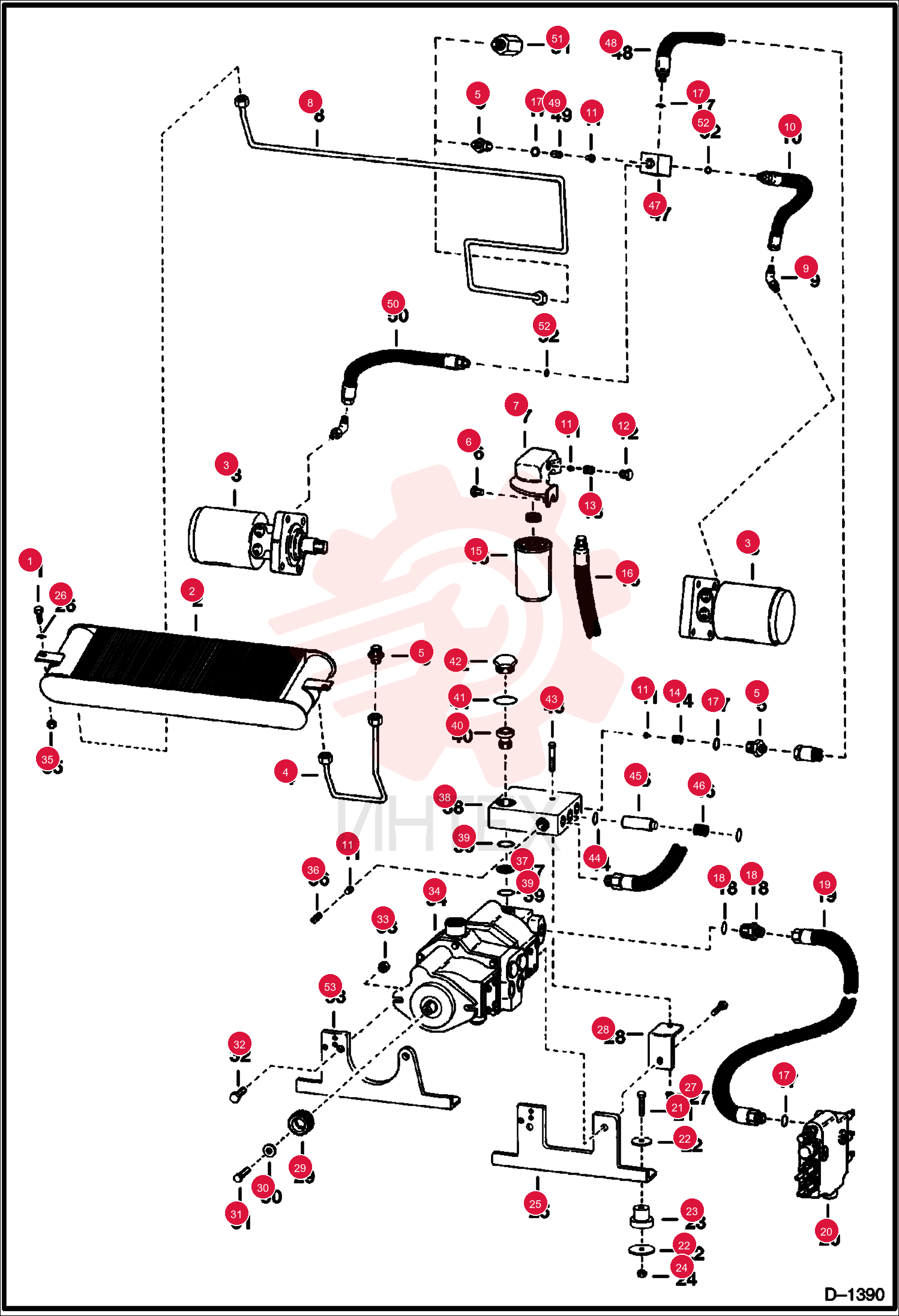

SCREW THD ROLLING TT 84G3716 (1)
1 84G3716
- 84G3716 - SCREW THD ROLLING TT
2 6560954
- 6560954 - EXCHANGER
- OIL COOLER
3 6557467
- 6557467 - TUBE
4 15K7
- 15K7 - FITTING
- W/Ref. 17
5 84G3712
- 84G3712 - SCREW THD ROLLING TT
6 6557468
- 6557468 - TUBE
7 17K5
- 17K5 - ELBOW
- W/Ref. 52
8 6515078
- 6515078 - POPPET
9 6561811
- 6561811 - PLUG
- W/Ref. 17
10 6553897
- 6553897 - SPRING
11 6559896
- 6559896 - SPRING
12 6515541
- 6515541 - FILTER
- OIL HYD 12
- hydraulic filter
13 6560213
- 6560213 - ASSY
- HOSE
14 79K10
- 79K10 - O RING 10
15 79K8
- 79K8 - O RING 10
16 15K6
- 15K6 - ADAPTER
- W/O-Ring
17 6557465
- 6557465 - ASSY
- HOSE
18 6557603
- 6557603 - VALVE
- HYDRAULIC
19 17C820
- 17C820 - BOLT 5
20 6560633
- 6560633 - DAMPER
- VIBRATION
- rubber
21 81D8
- 81D8 - NUT
22 6569553
- 6569553 - MOUNT
- BRACKET
- mounting
23 774220
- 774220 - NUT
24 61D6
- 61D6 - NUT HEX FINISHED GR5
25 6557724
- 6557724 - BRACKET
26 6540655
- 6540655 - ADAPTOR
27 17C824
- 17C824 - BOLT 5
28 6512896
- 6512896 - NUT
29 6512894
- 6512894 - NUT
30 6557479
- 6557479 - SPRING
31 6560082
- 6560082 - SPRING
32 6557802
- 6557802 - WASHER
33 6557481
- 6557481 - BLOCK
34 79K16
- 79K16 - O RING 10
35 6560137
- 6560137 - RETAINER
36 79K24
- 79K24 - O RING 10
37 17C640
- 17C640 - BOLT
38 6559185
- 6559185 - GASKET
39 6558357
- 6558357 - FILTER ASSEMBLY
40 617904
- 617904 - SPRING
41 6558857
- 6558857 - ASSY
- HOSE
42 6560935
- 6560935 - ASSY
- HOSE
- W/Ref. 52
43 79K6
- 79K6 - O RING 10
44 6557463
- 6557463 - MOUNT BRK
