632.0
/

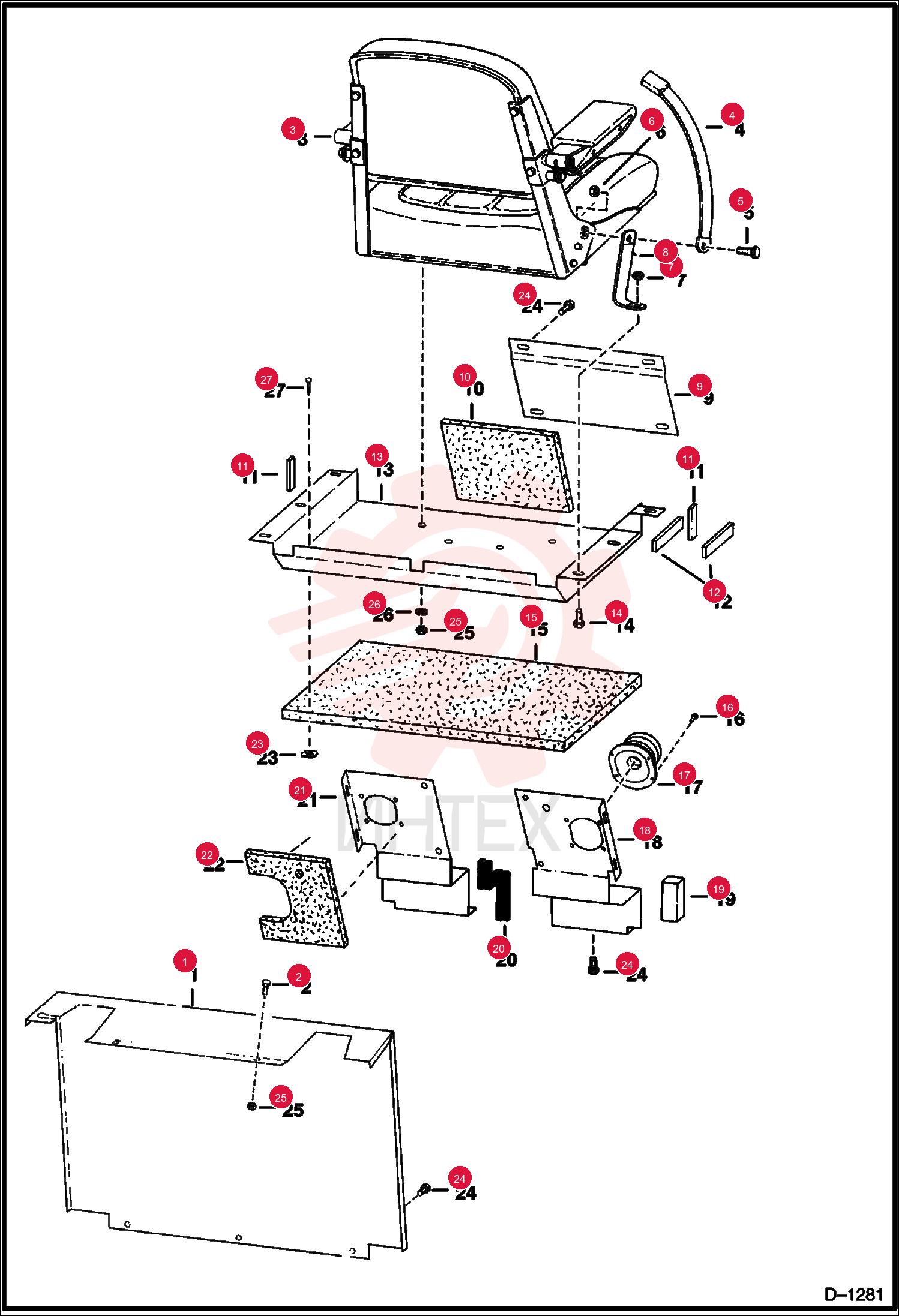

PLATE 6553796

PLATE 6553796

PLATE 6553796

1 6553796

  • 6553796 - PLATE

2 84G3712

  • 84G3712 - SCREW THD ROLLING TT

3 17C716

  • 17C716 - BOLT

4 61D7

  • 61D7 - NUT

5 57D6

  • 57D6 - NUT HEX FLNG GR8

6 6552184

  • 6552184 - BELT
  • SEAT

7 6557172

  • 6557172 - COVER
  • PLATE

8 6554365

  • 6554365 - INSULATION

9 37C616

  • 37C616 - BOLT
  • Was 6514537

10 6554364

  • 6554364 - INSULATION

11 6532127

  • 6532127 - BOOT AND PLATE ASSY
  • rubber - Was 6563540

12 6557169

  • 6557169 - SHIELD
  • R.H.

13 6563537

  • 6563537 - PANEL
  • R.H.

14 6557170

  • 6557170 - PANEL
  • L.H.

15 6559577

  • 6559577 - SHIELD
  • L.H.

16 6563539

  • 6563539 - PANEL
  • L.H.

17 6554366

  • 6554366 - INSULATION

18 84G3716

  • 84G3716 - SCREW THD ROLLING TT

19 61D6

  • 61D6 - NUT HEX FINISHED GR5

20 4E6

  • 4E6 - WASHER

21 6555293

  • 6555293 - NAIL
