Bobcat
/
720.0
/

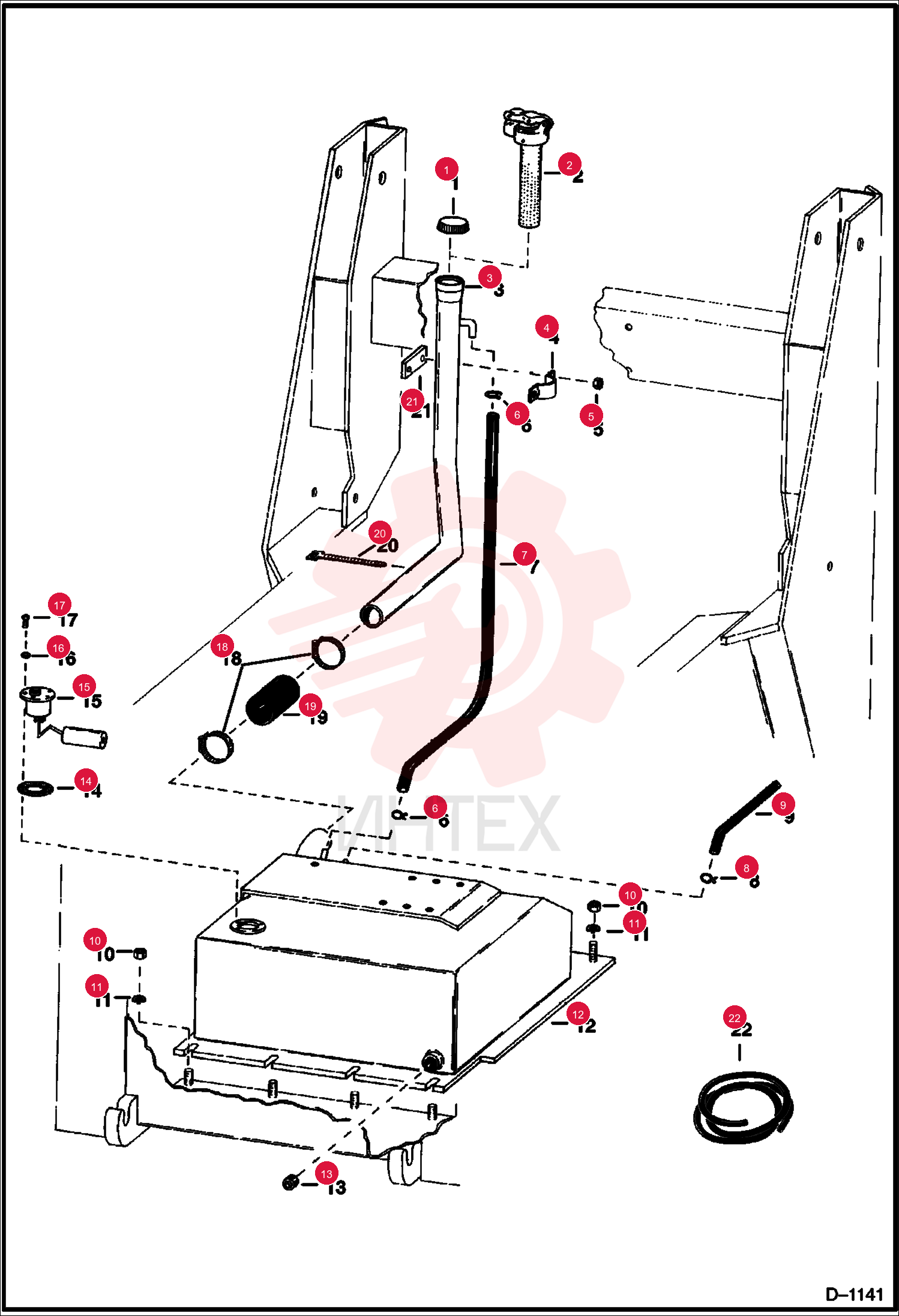

CAP 6512841 (1)

CAP 6512841 (1)

CAP 6512841 (1)

1 6512841

  • 6512841 - CAP

2 6512910

  • 6512910 - FUEL CAP
  • explosion proof - Optional

3 6514558

  • 6514558 - CLAMP

4 61D6

  • 61D6 - NUT HEX FINISHED GR5

5 42H12

  • 42H12 - CLAMP 10

6 6541806

  • 6541806 - HOSE

7 42HS04

  • 42HS04 - CLAMP HOSE TYPE M
  • Was 6515575

8 6551525

  • 6551525 - HOSE

9 61D8

  • 61D8 - NUT 5

10 25E21

  • 25E21 - WASHER FLAT PLAIN

11 6541693

  • 6541693 - TANK

12 16F12

  • 16F12 - PLUG

13 6519201

  • 6519201 - GASKET

14 5204933

  • 5204933 - SENDERKIT

15 17E10

  • 17E10 - WASHER HLCL SPR LOCK

16 85G1008

  • 85G1008 - SCREW

17 42H32

  • 42H32 - HS CLAMP5

18 6503117

  • 6503117 - CLAMP
  • tie

19 6548621

  • 6548621 - SPACER

20 1309037

  • 1309037 - HOSE-BULK
  • bulk - sold per foot
