720.0
/

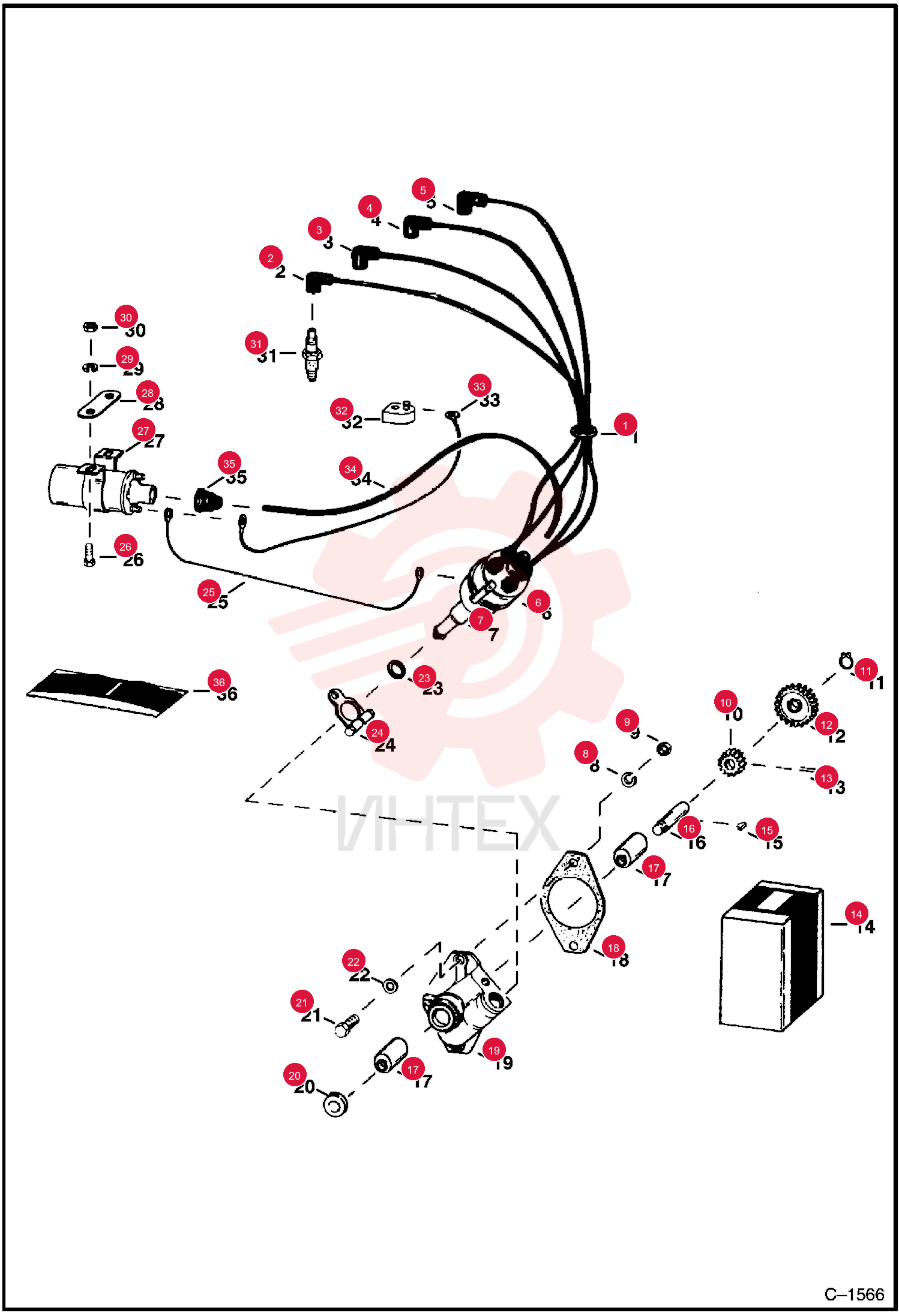

GROMMET 6516540

GROMMET 6516540

GROMMET 6516540

1 6516540

  • 6516540 - GROMMET

2 6516552

  • 6516552 - CAP

3 4E6

  • 4E6 - WASHER

4 61D6

  • 61D6 - NUT HEX FINISHED GR5

5 6516557

  • 6516557 - KIT
  • WIRING
  • W/Ref. 1-5 & 34

6 6519755

  • 6519755 - SHAFT

7 6516574

  • 6516574 - GASKET

8 6510109

  • 6510109 - PLUG

9 17C632

  • 17C632 - BOLT 5

10 25E17

  • 25E17 - WASHER FLAT PLAIN

11 6516560

  • 6516560 - SEAL

12 6516556

  • 6516556 - ARM

13 17C512

  • 17C512 - BOLT 5

14 887408

  • 887408 - IGN COIL

15 4E5

  • 4E5 - WASHER

16 61D5

  • 61D5 - NUT HEX FINISHED GR5

17 890272

  • 890272 - SPARK PLUG-4

18 6517513

  • 6517513 - KIT
  • safety - W/Ref. 33

19 6516549

  • 6516549 - CAP

20 6558833

  • 6558833 - KIT
  • IGN
