Bobcat
/
720.0
/

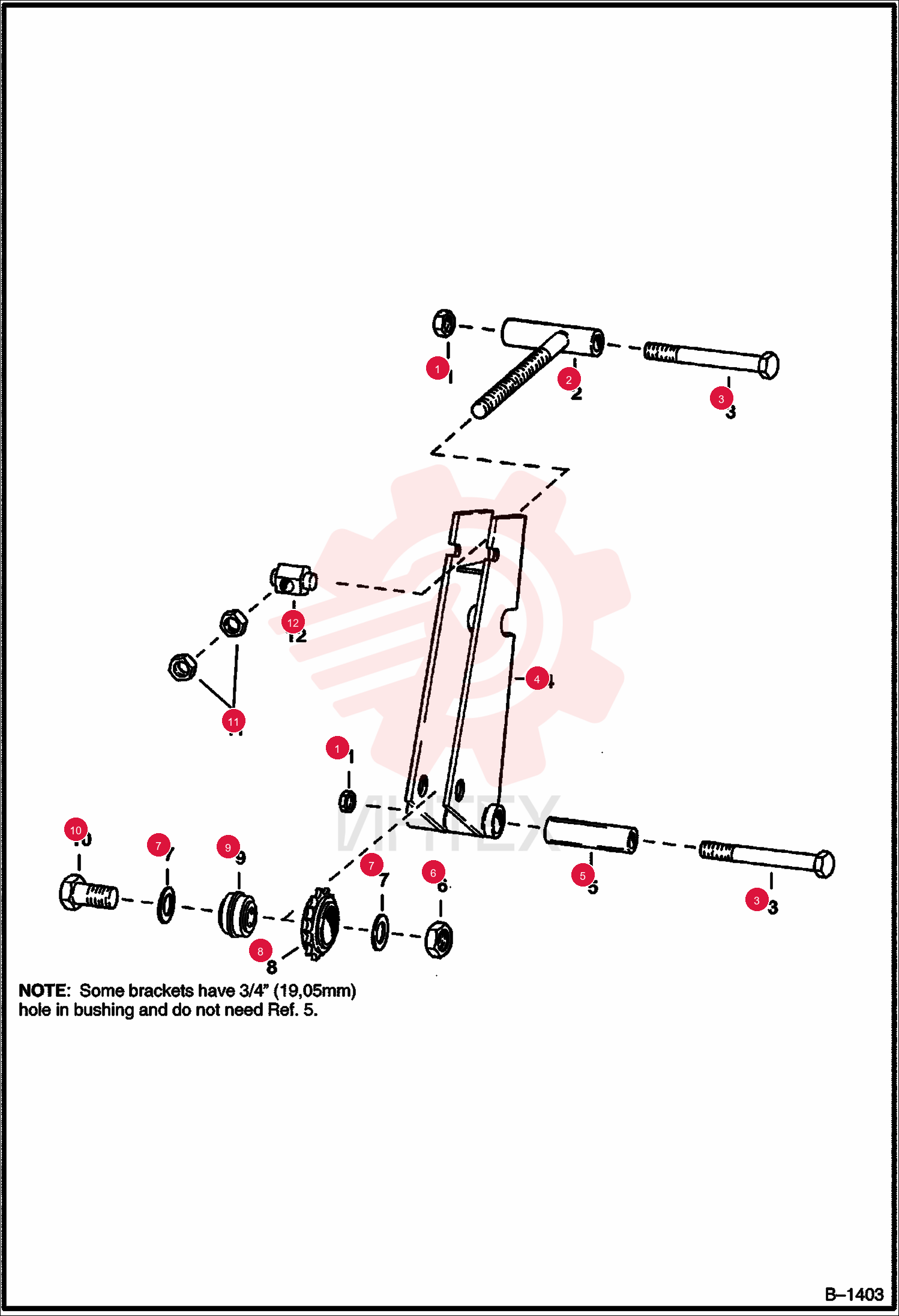

NUT 61D12 (1)

NUT 61D12 (1)

NUT 61D12 (1)

1 61D12

  • 61D12 - NUT

2 6540615

  • 6540615 - ROD

3 17C1296

  • 17C1296 - BOLT

4 6540622

  • 6540622 - PLATE
  • tightener - L.H.

5 6540623

  • 6540623 - PLATE
  • tightener - R.H.

6 8D16

  • 8D16 - NUT

7 6509925

  • 6509925 - WASHER

8 6542578

  • 6542578 - SPROCKET

9 6660952

  • 6660952 - BEARING
  • Was 6518931

10 7D12

  • 7D12 - NUT
