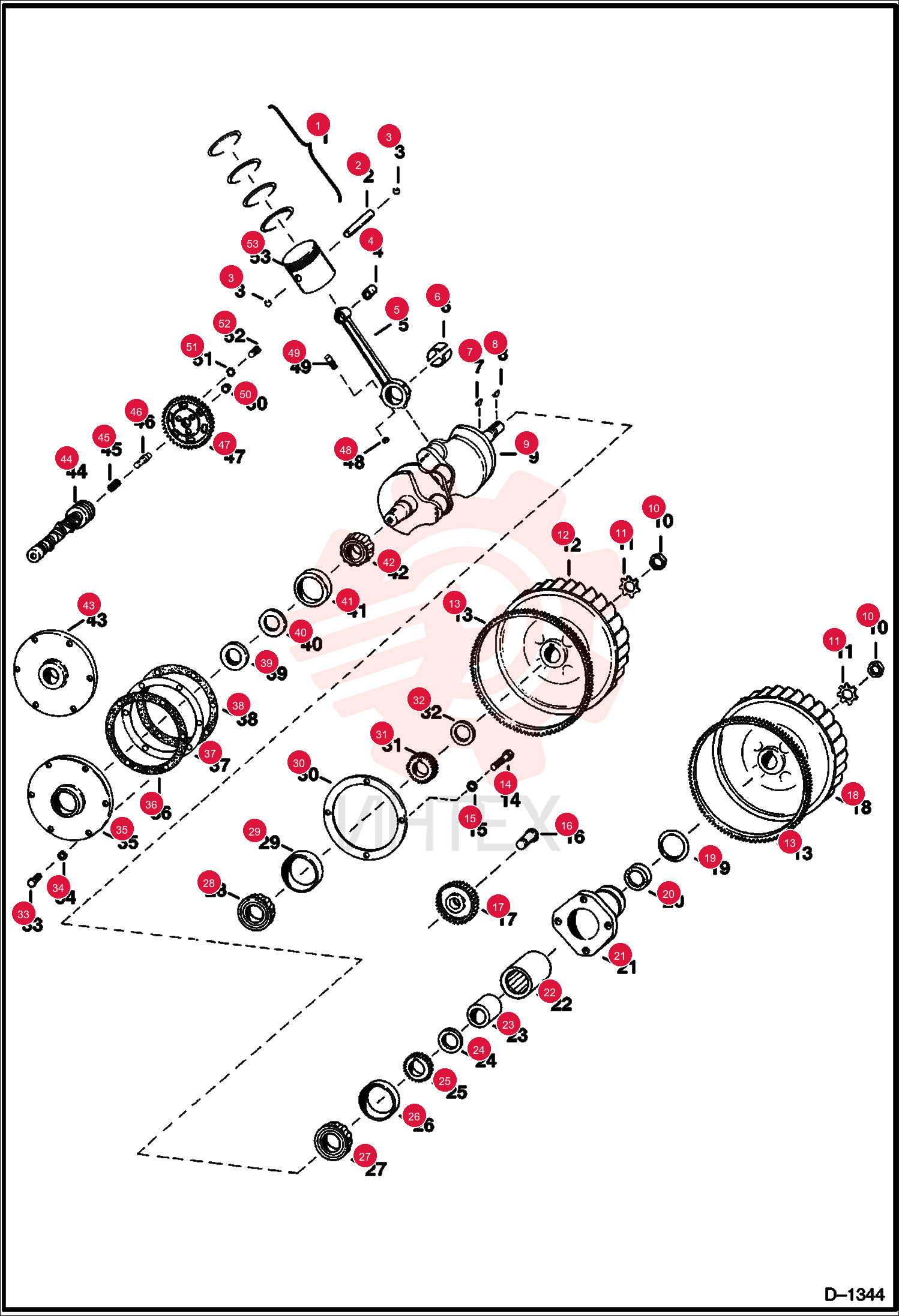

RING 6512150
1 6512150
- 6512150 - RING
- .010 - 3 ring - complete set
2 6512151
- 6512151 - RING
- .020 - 3 ring - complete set
3 6630712
- 6630712 - SET
- RING
- 4 Ring (Std.) For 2 Pistons
4 6630713
- 6630713 - SET
- RING
- 4 Ring (.010) For 2 Pistons
5 6630714
- 6630714 - SET
- RING
- 4 Ring (.020) For 2 Pistons
6 6630715
- 6630715 - SET
- RING
- 4 Ring (.030) For 2 Pistons
7 6516470
- 6516470 - SET
- RING
- Trichrome (.020) Complete Eng.
8 6516469
- 6516469 - SET
- RING
- Trichrome (.010) Complete Eng.
9 6516464
- 6516464 - SET
- RING
- 4 Ring (Std.) Complete Engine
10 6516466
- 6516466 - RG SET 4P
- 4 Ring (.020) Complete Engine
11 6516467
- 6516467 - SET
- RING
- .030 Complete Engine
12 6516476
- 6516476 - PIN
- Std.
13 6517474
- 6517474 - PIN
- 0.01
14 6516463
- 6516463 - RETAINER
15 6517472
- 6517472 - ROD
- connecting - W/Ref. 4
- 48 & 49
16 6517475
- 6517475 - BRG PAIR
- Std. (One Bearing)
17 6517478
- 6517478 - BRG PAIR
- .010 (One Bearing)
18 6517479
- 6517479 - BRG PAIR
- .020 (One Bearing)
19 6J404
- 6J404 - KEY
- WOODRUFF
20 6512251
- 6512251 - SHAFT
21 6510277
- 6510277 - CRANKSHAFT
22 6516449
- 6516449 - NUT
23 6510827
- 6510827 - FLYWHEEL
- W/Ref. 13
24 6516682
- 6516682 - GEAR
- RING
25 7G512
- 7G512 - SCREW
- flat head
26 6E5
- 6E5 - WASHER INTL T LOCK
27 6519850
- 6519850 - GEAR
28 6512384
- 6512384 - O-RING
29 6516526
- 6516526 - SEAL
- oil
30 6512336
- 6512336 - HOUSING
- W/Ref. 20 & 22
31 6512382
- 6512382 - BEARING
32 6512386
- 6512386 - BEARING
33 6512385
- 6512385 - SPACER
34 6512334
- 6512334 - GEAR
35 6512381
- 6512381 - BEARING
- CONE
- W/Ref. 26
36 6516452
- 6516452 - BEARING
- main - W/Ref. 29
37 6510826
- 6510826 - PLATE
38 6516451
- 6516451 - GEAR
39 6516450
- 6516450 - SLINGER
- oil
40 17C620
- 17C620 - BOLT
41 4E6
- 4E6 - WASHER
42 6511300
- 6511300 - PLATE
43 6516458
- 6516458 - GASKET
- .003 thk
44 6516456
- 6516456 - GASKET
- .006 thk
45 872144
- 872144 - BEARING
- main - W/Ref. 41
46 6516517
- 6516517 - CAMSHAFT
47 6516518
- 6516518 - SPRING
48 6516519
- 6516519 - PLUNGER
- thrust
49 6516520
- 6516520 - GEAR
50 6512387
- 6512387 - GEAR
51 86D5
- 86D5 - NUT
52 6516461
- 6516461 - BOLT
53 6516522
- 6516522 - BUTTON
54 6516521
- 6516521 - WASHER
55 17C516
- 17C516 - BOLT
56 6630709
- 6630709 - PISTON
- 4 Ring (.010)
57 6630710
- 6630710 - PISTON
- 4 Ring (.020)
58 6630711
- 6630711 - PISTON
- 4 Ring (.030)
59 6630708
- 6630708 - PISTON
- std - 4 ring - one piston
60 6512146
- 6512146 - ONEPISTON
- 3 Ring (.010)
61 6630708
- 6630708 - PISTON
- std - 4 ring - Was 6516472
62 6630709
- 6630709 - PISTON
- .010 (0
- 25mm) - ring - Was 6516473
63 6630710
- 6630710 - PISTON
- .020 (0
- 51mm) - 4 Ring - Was 6516474
