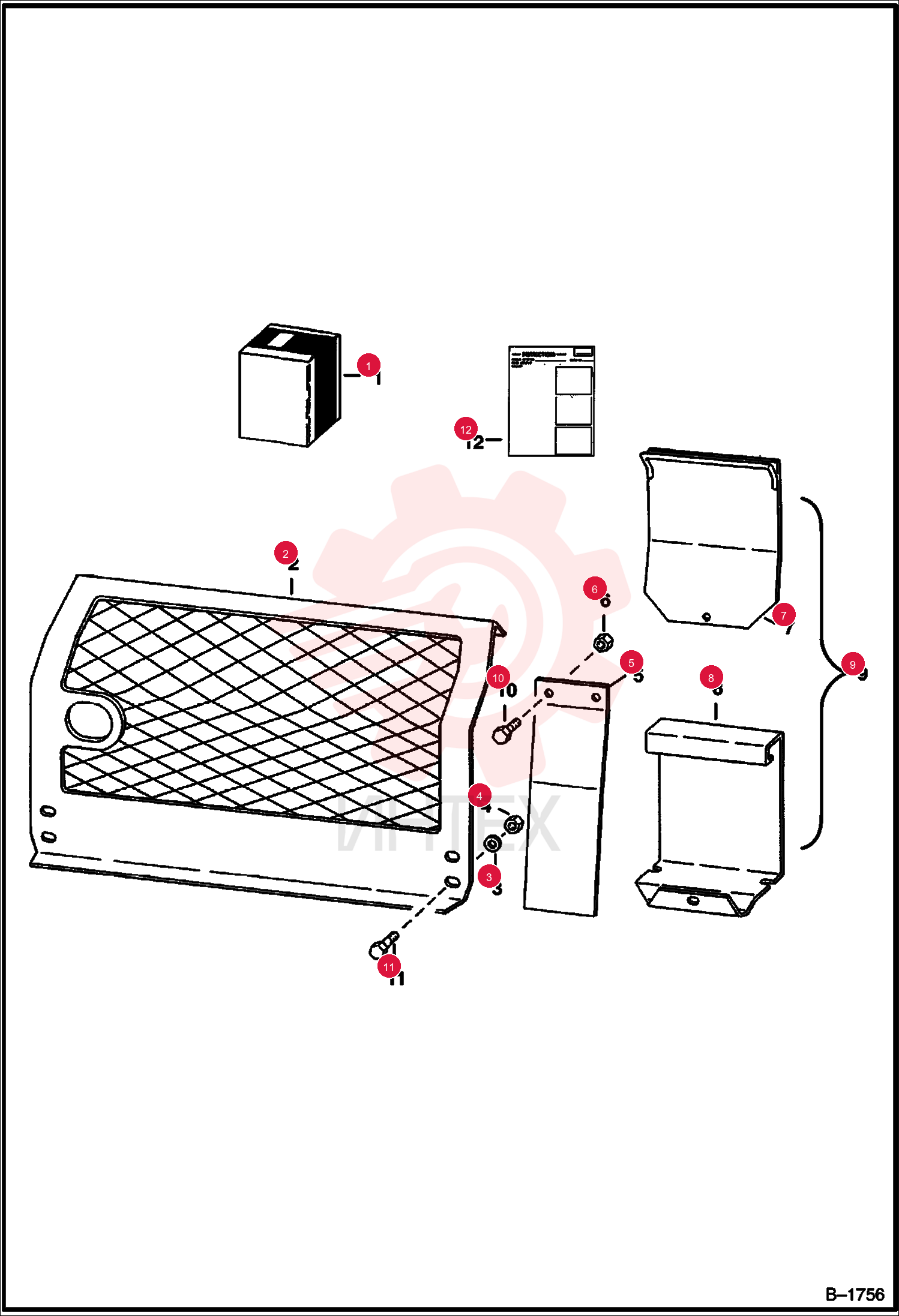

SCREEN 6546375

SCREEN 6546375

SCREEN 6546375

1 6546375

  • 6546375 - SCREEN

2 25E16

  • 25E16 - WASHER FLAT PLAIN

3 61D5

  • 61D5 - NUT HEX FINISHED GR5

4 6548507

  • 6548507 - SHIELD

5 61D4

  • 61D4 - NUT 5

6 6546444

  • 6546444 - ASSY
  • COVER
  • W/Ref. 7 & 8

7 17C408

  • 17C408 - BOLT

8 17C516

  • 17C516 - BOLT

9 6545907

  • 6545907 - INSTRUCTIONS
