Bobcat
/
743.0
/

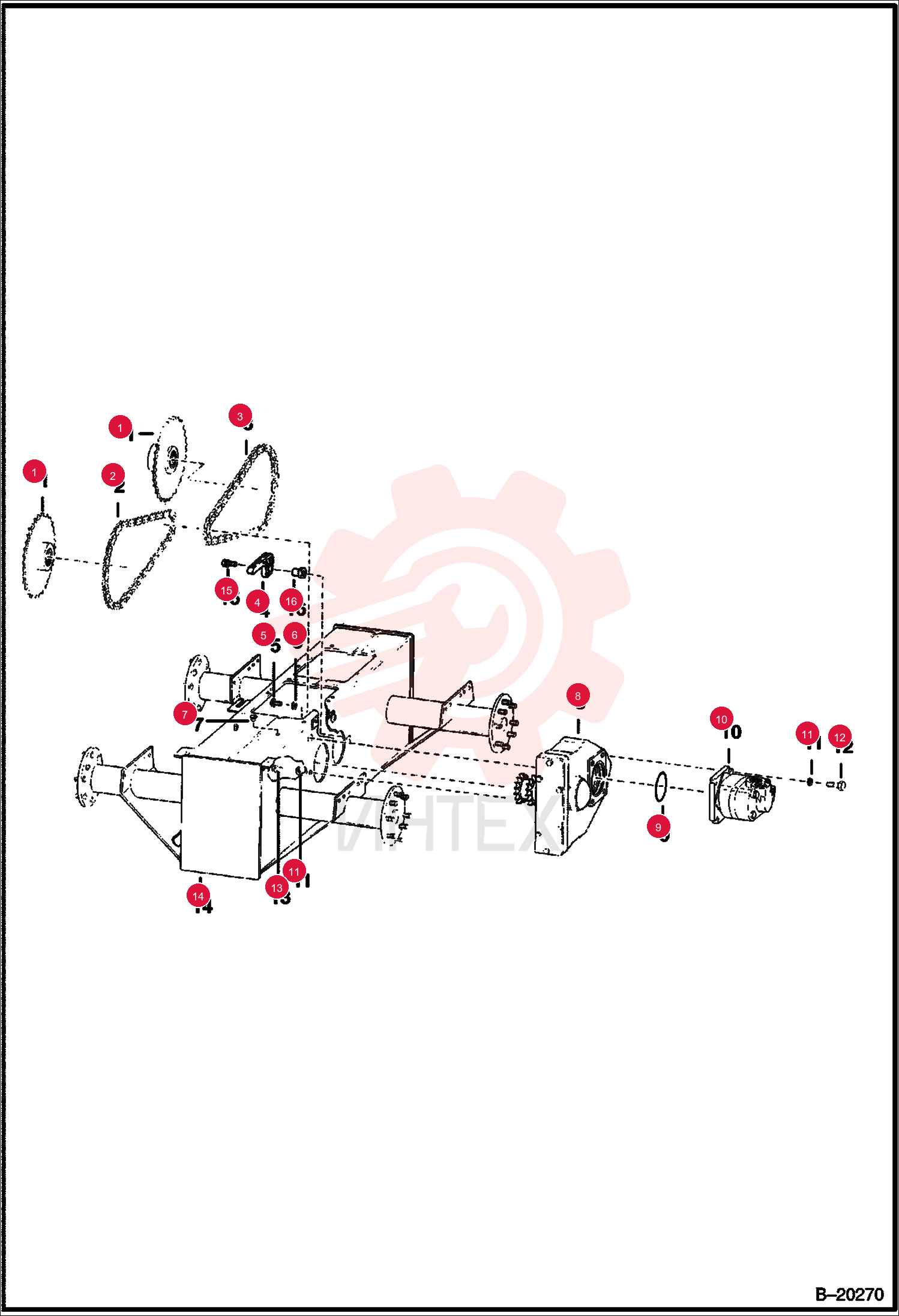

SPROCKET, AXLE 6562999 (2)

SPROCKET, AXLE 6562999 (2)

SPROCKET, AXLE 6562999 (2)

1 6562999

  • 6562999 - SPROCKET
  • AXLE

2 6559099

  • 6559099 - CHAIN
  • DRIVE

3 6510171

  • 6510171 - LINK
  • conn. - Used for Diamond & Daido chain

4 6559100

  • 6559100 - CHAIN

5 6569808

  • 6569808 - GUIDE
  • CHAIN
  • plastic

6 17C1228

  • 17C1228 - BOLT

7 6576033

  • 6576033 - WASHER 5
  • Was 6558465

8 6558506

  • 6558506 - PLUG
  • breather

9 6558307

  • 6558307 - BOX

10 25K30508

  • 25K30508 - O-RING

11 6701097

  • 6701097 - WASHER
  • Was 6803867

12 17C828

  • 17C828 - BOLT

13 17C820

  • 17C820 - BOLT 5

14 6565543

  • 6565543 - CHAINCASE

15 17C1252

  • 17C1252 - BOLT

16 6569807

  • 6569807 - BUSHING
