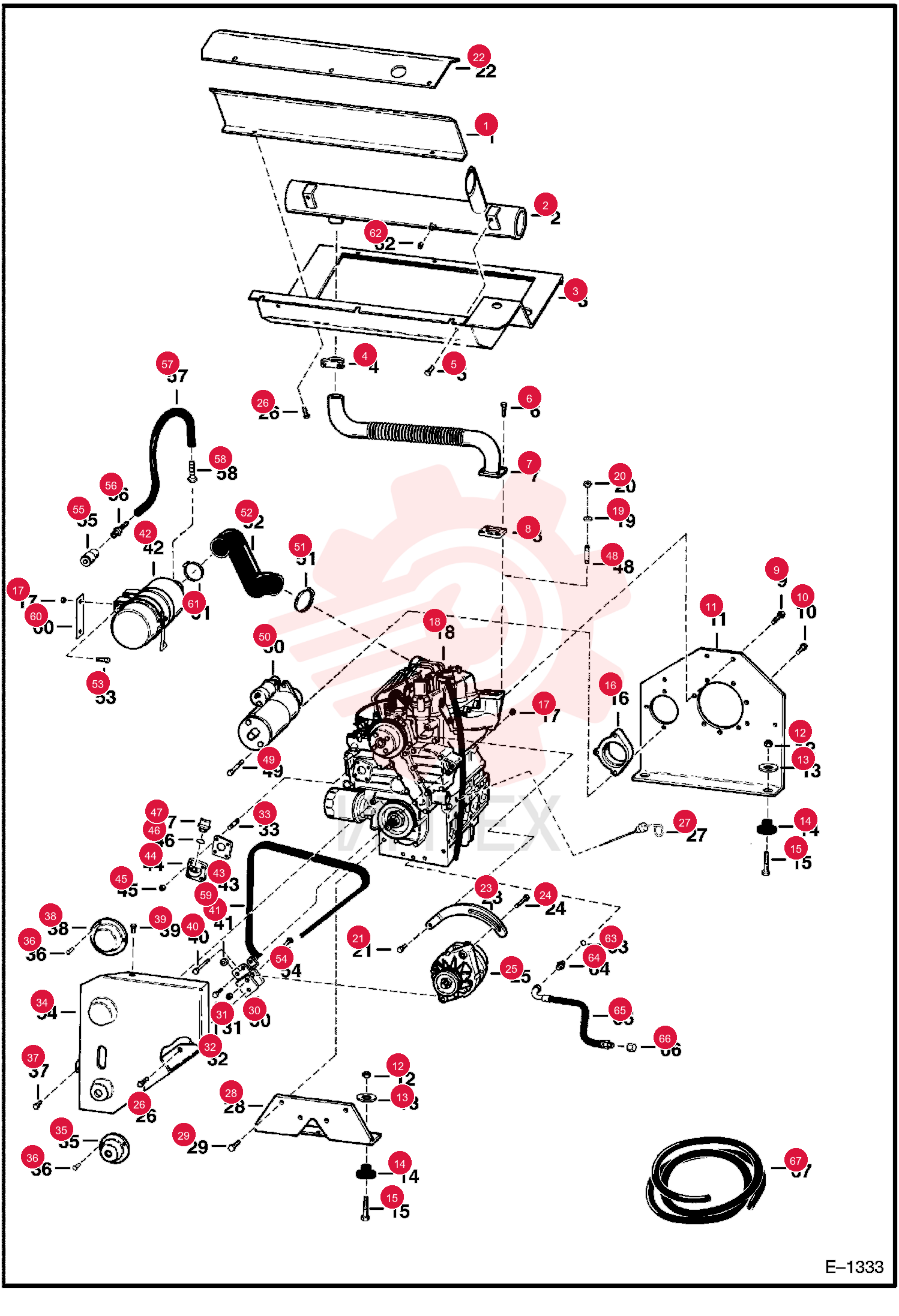

SHIELD 6561285 (4)

SHIELD 6561285 (4)

SHIELD 6561285 (4)

1 6561285

  • 6561285 - SHIELD
  • heat

2 6514737

  • 6514737 - MUFFLER
  • SPARK ARRESTOR

3 6565419

  • 6565419 - BRACKET

4 6677363

  • 6677363 - CLAMP
  • FULL CIRCLE
  • Was 657904B

5 35C610

  • 35C610 - BOLT 5

6 4CM825

  • 4CM825 - BOLT HEX HEAD
  • Was 1CM825

7 6569624

  • 6569624 - TUBE
  • EXHAUST

8 6575580

  • 6575580 - GASKET
  • muffler

9 6CM1225

  • 6CM1225 - SCREW FL THD HEX CAP

10 5CM1020

  • 5CM1020 - SCREW FL THD HEX CAP

11 6562433

  • 6562433 - MOUNT
  • motor

12 61D8

  • 61D8 - NUT 5

13 6515817

  • 6515817 - WASHER

14 6560633

  • 6560633 - DAMPER
  • VIBRATION
  • shock

15 17C836

  • 17C836 - BOLT

16 6562198

  • 6562198 - SPACER
  • starter

17 57D5

  • 57D5 - NUT HEX FLNG GR8

18 6EM80

  • 6EM80 - WASHER
  • SPRING

19 1DM8

  • 1DM8 - NUT

20 1CM870

  • 1CM870 - BOLT

21 6565327

  • 6565327 - MUFF.SHLD
  • muffler

22 6579721

  • 6579721 - RETAINER

23 35C516

  • 35C516 - SCREW HEX HD W/F GR5
  • Use W/Bobcat Alt.

24 84G3710

  • 84G3710 - SCREW

25 6598181

  • 6598181 - DIPSTICK

26 6562843

  • 6562843 - MOUNT
  • motor

27 6CM1220

  • 6CM1220 - BOLT

28 6562257

  • 6562257 - BRACKET
  • ALT

29 85D6

  • 85D6 - NUT PRETRQ HEX LOCK
  • Use W/Bobcat Alt.

30 1CM890

  • 1CM890 - BOLT

31 6652764

  • 6652764 - STUD
  • Was 3974462B

32 6630207

  • 6630207 - RIVET POP
  • Use W/3 piece Shield

33 1CM895

  • 1CM895 - BOLT

34 1CM840

  • 1CM840 - SCREW HEX CAP

35 17C556

  • 17C556 - BOLT

36 6568877

  • 6568877 - WASHER

37 6563400

  • 6563400 - AIR CLEAN

38 6714543

  • 6714543 - GASKET
  • Was 3974461B

39 6562466

  • 6562466 - INLET
  • oil fill

40 1DM6

  • 1DM6 - NUT

41 3966602

  • 3966602 - O RING
  • oil fill plug

42 6685924

  • 6685924 - OIL FILL CAP
  • oil filler - Was 6652653

43 3974627

  • 3974627 - STUD

44 17C640

  • 17C640 - BOLT

45 42H32

  • 42H32 - HS CLAMP5
  • Was 42H000024B

46 6563447

  • 6563447 - HOSE

47 35C516

  • 35C516 - SCREW HEX HD W/F GR5

48 17C648

  • 17C648 - SCREW HEX CAP
  • Use W/Bobcat Alt.

49 6515007

  • 6515007 - IND GAUGE AIR FILTER
  • dust

50 6505813

  • 6505813 - ADAPTER
  • barbed

51 6563452

  • 6563452 - ADAPTER
  • barbed

52 6562693

  • 6562693 - BELT
  • ALT

53 6563705

  • 6563705 - SHIM

54 6598799

  • 6598799 - CLAMP

55 866104

  • 866104 - PLUG
  • Brass

56 79K8

  • 79K8 - O RING 10

57 15K6

  • 15K6 - ADAPTER
  • W/Ref. 63

58 6572070

  • 6572070 - HOSE
  • oil drain

59 36K6

  • 36K6 - CAP

60 6557720

  • 6557720 - HOSE BULK
  • sold per foot
