Bobcat
/
743.0
/

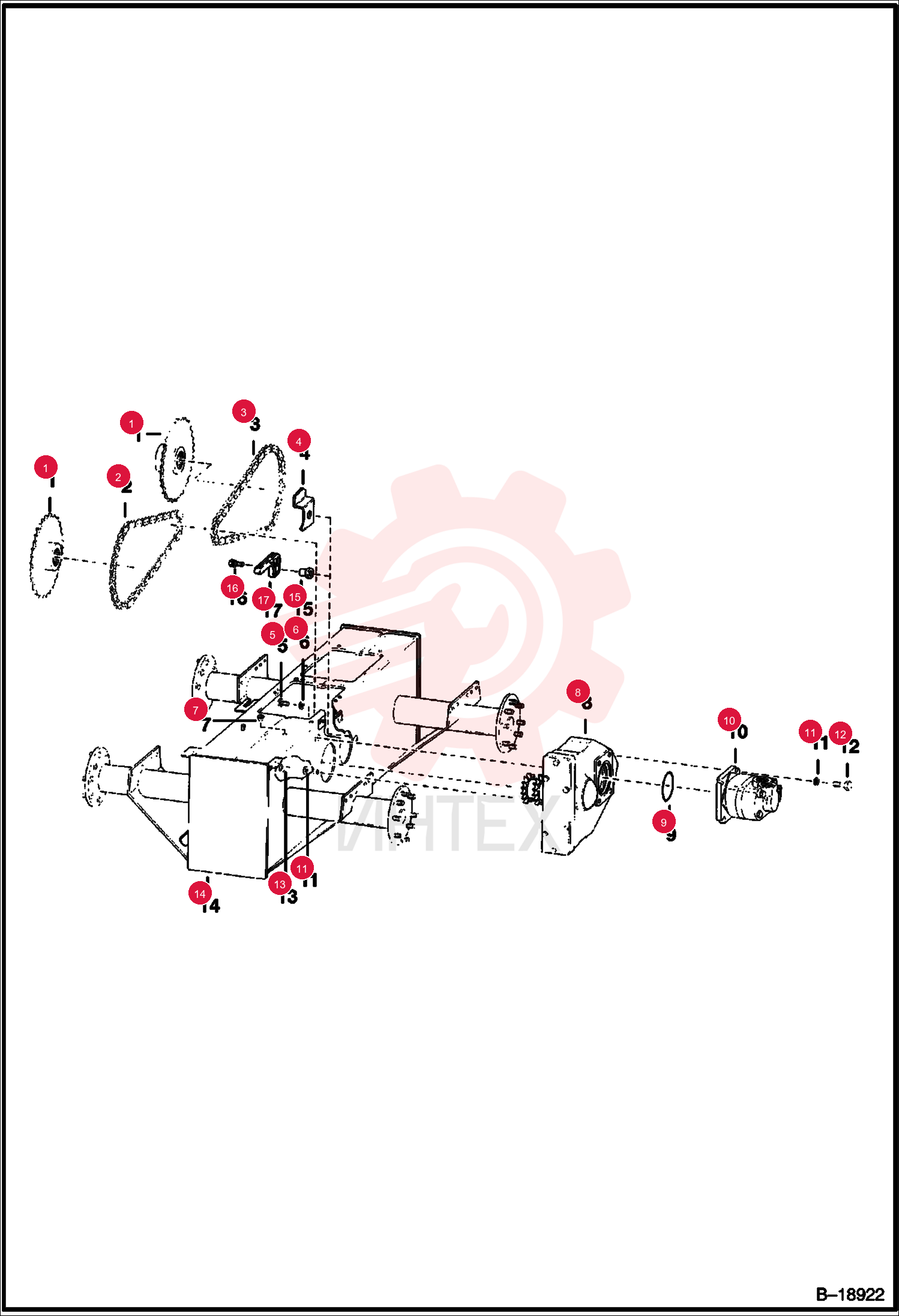

SPROCKET, AXLE 6562999 (1)

SPROCKET, AXLE 6562999 (1)

SPROCKET, AXLE 6562999 (1)

1 6562999

  • 6562999 - SPROCKET
  • AXLE

2 6559099

  • 6559099 - CHAIN
  • DRIVE

3 6559100

  • 6559100 - CHAIN

4 6510171

  • 6510171 - LINK
  • conn. - Used for Diamond & Daido chain

5 17C1228

  • 17C1228 - BOLT

6 6576033

  • 6576033 - WASHER 5
  • Was 6558465

7 6558506

  • 6558506 - PLUG
  • breather

8 6558307

  • 6558307 - BOX

9 25K30508

  • 25K30508 - O-RING

10 6701097

  • 6701097 - WASHER
  • Was 6803867

11 17C828

  • 17C828 - BOLT

12 17C820

  • 17C820 - BOLT 5

13 6565543

  • 6565543 - CHAINCASE

14 17C1252

  • 17C1252 - BOLT

15 6569807

  • 6569807 - BUSHING

16 6569808

  • 6569808 - GUIDE
  • CHAIN
  • plastic
