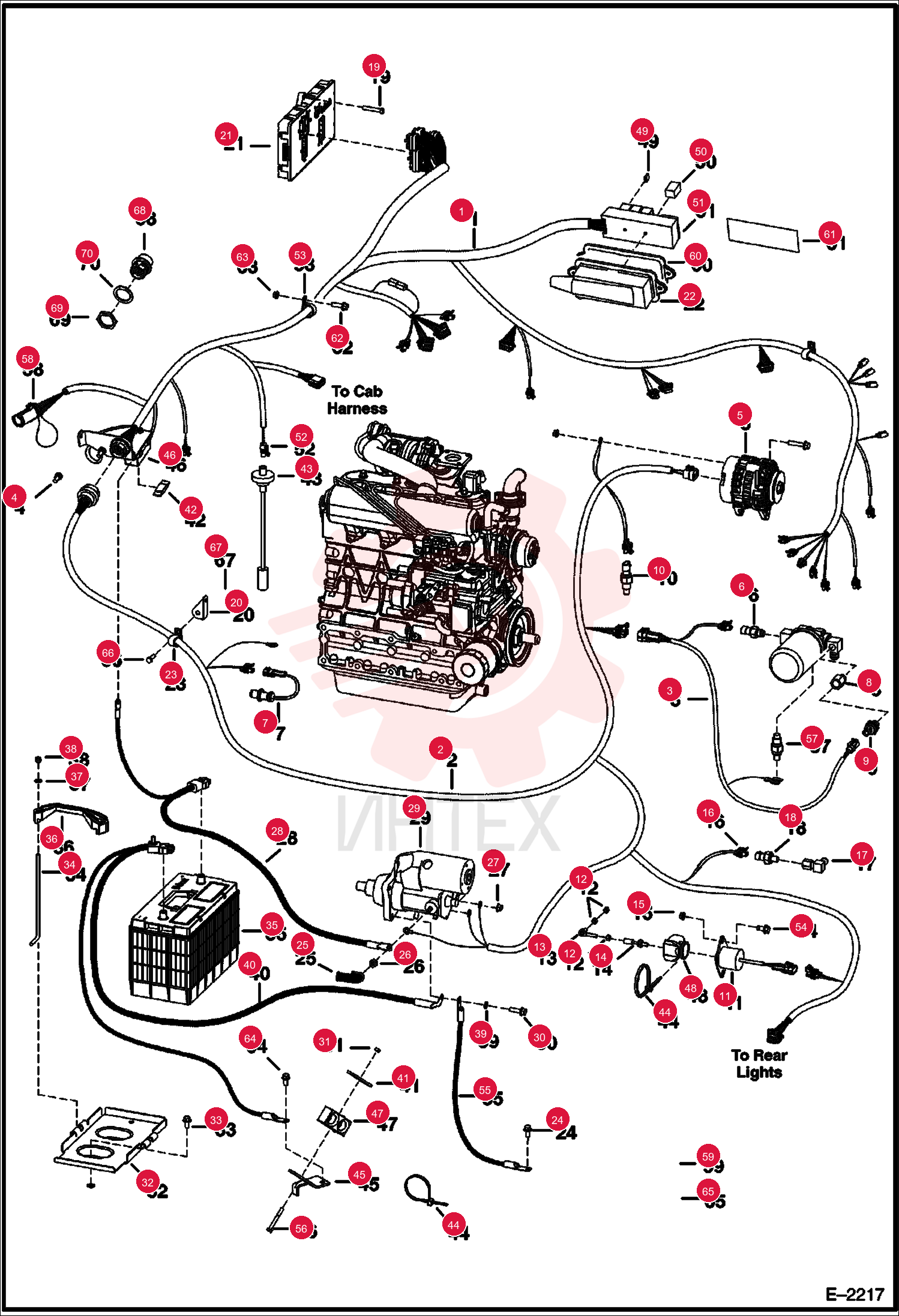

HARNESS, MFR 6719802
1 6719802
- 6719802 - HARNESS
- MFR
- W/ Ref. 49-51 & 53 - WAS 6719720
2 6719803
- 6719803 - HARNESS
- W/ Ref. 49-51 & 53
3 6718871
- 6718871 - HARNESS
- ENG
- engine - W/Ref. 20
- 66 & 67
4 6715975
- 6715975 - HARNESS
- FILTER
- filter
5 84G3712
- 84G3712 - SCREW THD ROLLING TT
6 6727869
- 6727869 - SENDER
- HYD TEMP
- Was 6718417
7 6684037
- 6684037 - SENSOR
- SPEED ENG
- RPM - Was 6679853
8 6718948
- 6718948 - SNUBBER
- W/filter
9 6675278
- 6675278 - FILTER
10 6674316
- 6674316 - SWITCH
- PRESS OIL HYD
- 3-pin molded connector
11 6718415
- 6718415 - SENDER
- eng. temp.
12 6681513
- 6681513 - SOLENOID
- SHUTOFF FUEL
- fuel shut off - Was 6667993
13 62D4
- 62D4 - NUT HEX FINISHED GR5
14 6578363
- 6578363 - ROD END
- swivel
15 6578366
- 6578366 - JOINT
- BALL
16 61D4
- 61D4 - NUT 5
17 6672750
- 6672750 - CONNECTOR
- 3 WAY P2S
18 6707040
- 6707040 - ELBOW 90 STREET PIPE
19 6674315
- 6674315 - SWITCH
- PRESS OIL ENG
- eng oil pressure
20 43C616
- 43C616 - BOLT
- Was 35C000616B
21 6714979
- 6714979 - BRACKET
22 6682421
- 6682421 - CONTROLLER
- BOBCAT
- 4 connector W/Boost
23 6688439
- 6688439 - CONTROLLER
- BOBCAT
- 2 connector W/boost - Was 6682422
24 6718659
- 6718659 - HOUSING FUSE RELAY
- fuse - boot
25 6675171
- 6675171 - CLAMP
26 1CM1220
- 1CM1220 - BOLT
27 6560172
- 6560172 - COVER
28 4DM10
- 4DM10 - NUT HEX
29 4DM5
- 4DM5 - NUT HEXAGON M5
30 6719060
- 6719060 - CABLE
- POSITIVE
- pos.
31 35C620
- 35C620 - BOLT 5
32 91D5
- 91D5 - NUT 5
33 6718260
- 6718260 - BATTERY PAN
34 84G3716
- 84G3716 - SCREW THD ROLLING TT
35 6576280
- 6576280 - BOLT BENT
36 7312552
- 7312552 - BATTERY 650 CCA DRY
- - Was 6674687
37 6569203
- 6569203 - CLAMP BATTERY
38 25E15
- 25E15 - WASHER FLAT PLAIN
39 59D5
- 59D5 - NUT LOCK HEX PT
40 6E6
- 6E6 - WASHER
41 6719059
- 6719059 - CABLE
- NEGATIVE
- ground
42 6675155
- 6675155 - FUSE
- 100A
- mega
43 6675154
- 6675154 - HOLDER
- high amp fuse
44 6715132
- 6715132 - RETAINER
45 7286464
- 7286464 - SENSOR
- FUEL
- Was 7179839
46 6717579
- 6717579 - GASKET
47 6610510
- 6610510 - STRAP
- TIE 10
48 6719230
- 6719230 - BRACKET
49 6726503
- 6726503 - BRACKET
- Was 6718970
50 6715197
- 6715197 - CLAMP
51 6664286
- 6664286 - BOOT
- Also Order Ref. 44
52 6654806
- 6654806 - FUSE
- 15A
53 6702444
- 6702444 - FUSE 25A 5
54 6718034
- 6718034 - FUSE
- 30A
55 6679820
- 6679820 - SWITCH
- RELAY MAGNETIC
- relay - Was 6674376
56 6673200
- 6673200 - FUSE BLOCK
57 6646383
- 6646383 - CONNECTOR
- fuel sender
58 6648330
- 6648330 - TERMINAL
- female - Was 6632946
59 6674673
- 6674673 - CLAMP
60 17C410
- 17C410 - BOLT 10
61 6713821
- 6713821 - CABLE
62 6716744
- 6716744 - BOLT
63 6660260
- 6660260 - SWITCH
- PRESS OIL HYD
- Was 6674376
64 6667533
- 6667533 - COVER
65 6675096
- 6675096 - GROMMET
66 6725302
- 6725302 - GASKET
- See Illustration PANELS/ B16483
67 6718774
- 6718774 - DECAL
- FUSE RELAY
- FUSE/RELAY - 2" x 7" (50
- 8mm x 177
- 8mm) - See Illustration PANELS/B16483
68 35C616
- 35C616 - SCREW FLGD HEX CAP
69 95D6
- 95D6 - NUT HEXAGON
- Was 91D000006B
70 57D6
- 57D6 - NUT HEX FLNG GR8
71 30H48
- 30H48 - CLIP
72 17C512
- 17C512 - BOLT 5
73 85D5
- 85D5 - NUT PRETRQ HEX LOCK
74 6664584
- 6664584 - CONNECTOR
- 21-pin
75 6664972
- 6664972 - NUT
76 6664971
- 6664971 - WASHER
