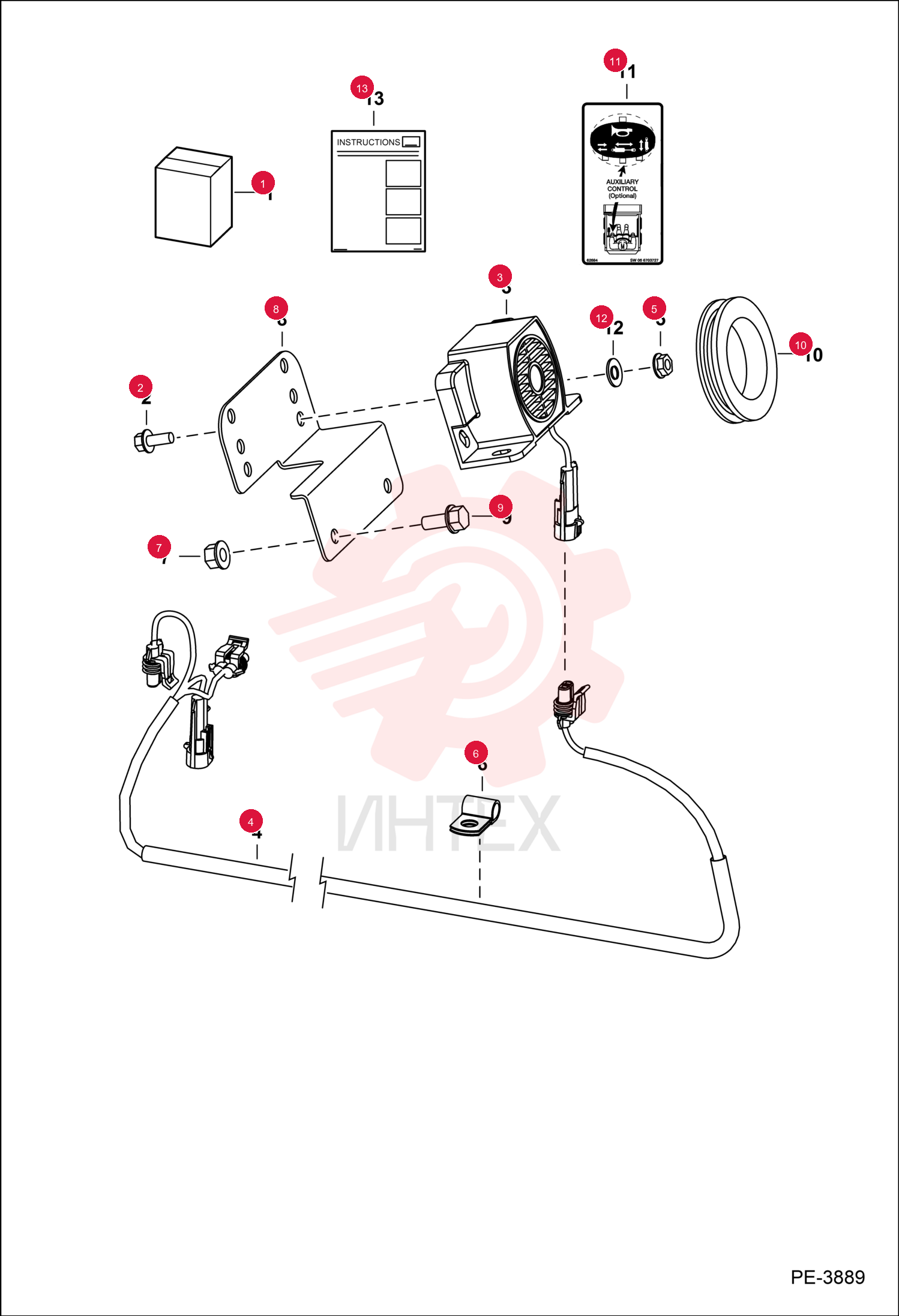

HORN KIT 6719043

HORN KIT 6719043

HORN KIT 6719043

1 6719043

  • 6719043 - HORN KIT
  • Ref. 2-13

2 17C410

  • 17C410 - BOLT 10

3 6640699

  • 6640699 - CONNECTOR METRI PACK
  • 3-pin

4 6641179

  • 6641179 - CONNECTOR METRI PACK
  • 2-pin

5 6640700

  • 6640700 - LOCK METRI PACK
  • 3-pin

6 6641180

  • 6641180 - LOCK METRI PACK
  • 2-pin

7 7001044

  • 7001044 - HORN
  • ALARM
  • Was 6675099

8 6719151

  • 6719151 - HARNESS
  • 2870 mm (113") long

9 83D4

  • 83D4 - LKNUT HEX FLG GR8

10 30H23

  • 30H23 - CLAMP

11 83D5

  • 83D5 - LKNUT HEX FLG GR8

12 6733970

  • 6733970 - MOUNT ALARM

13 35C512

  • 35C512 - SCREW FLGD HEX CAP

14 6577545

  • 6577545 - GROMMET

15 6703727

  • 6703727 - DECAL
  • horn/aux

16 25E13

  • 25E13 - WASHER FLAT PLAIN

17 6900913

  • 6900913 - INSTRUCTIONS
