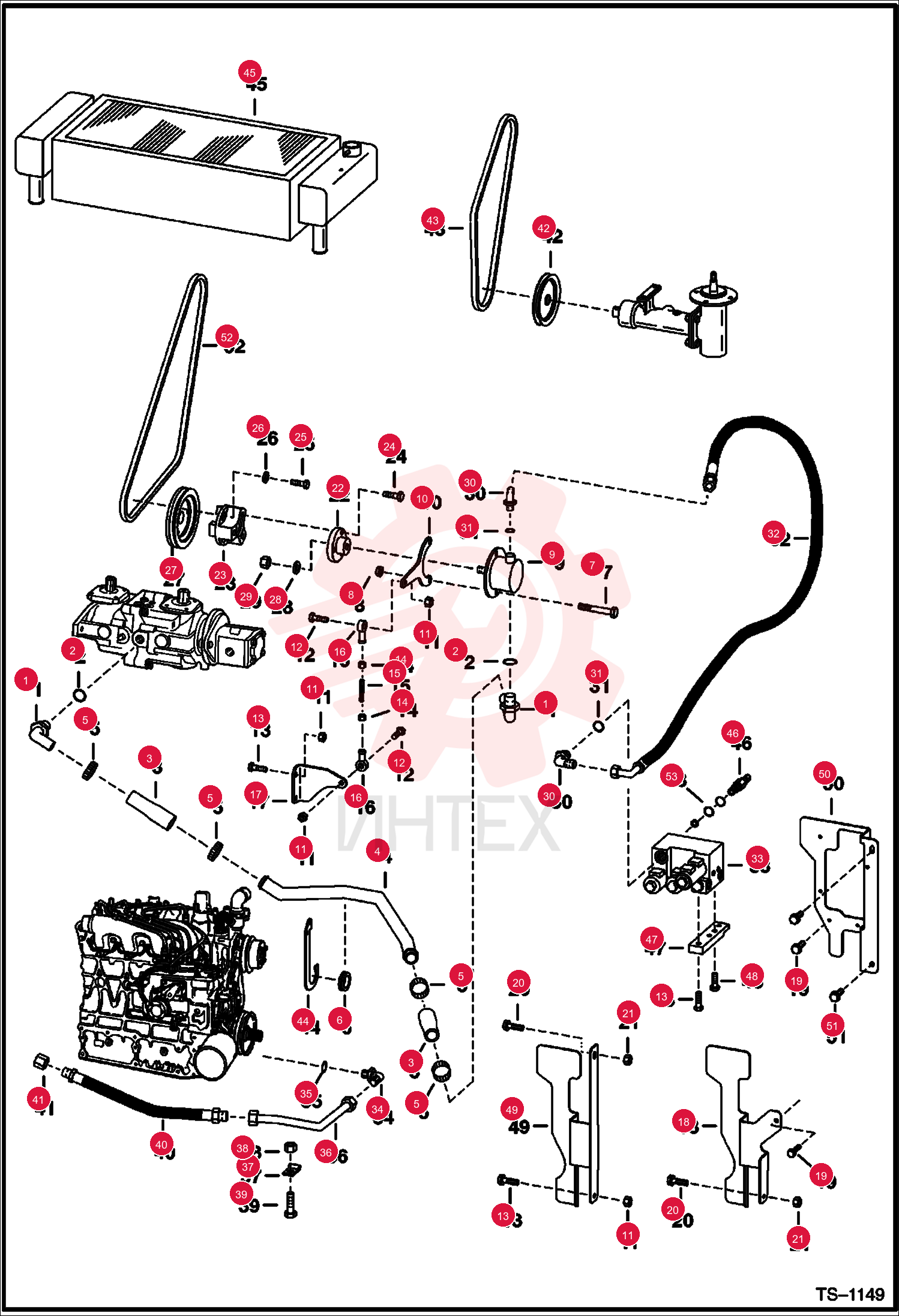

FITTING 1321499 (2)
1 1321499
- 1321499 - FITTING
- W/Ref. 2 - Was 6567884
2 79K16
- 79K16 - O RING 10
3 6703885
- 6703885 - HOSE
4 6705161
- 6705161 - TUBE
5 42H16
- 42H16 - CLAMP
- HOSE 5
6 17C724
- 17C724 - BOLT
7 83D7
- 83D7 - NUT
8 6667382REM
- 6667382REM - PUMP
- TANDEM
9 6667382
- 6667382 - PUMP
- GEAR
- GEAR - WAS 6662693
10 6703722
- 6703722 - ARM
- torgue
11 85D6
- 85D6 - NUT PRETRQ HEX LOCK
12 17C620
- 17C620 - BOLT
13 17C616
- 17C616 - BOLT 5
14 62D6
- 62D6 - NUT HEX FINISHED GR5
15 6703719
- 6703719 - ROD
16 6512954
- 6512954 - ROD END
- R.H. threads
17 6704016
- 6704016 - MOUNT
18 84G3712
- 84G3712 - SCREW THD ROLLING TT
19 35C516
- 35C516 - SCREW HEX HD W/F GR5
20 83D5
- 83D5 - LKNUT HEX FLG GR8
21 6705129
- 6705129 - MOUNT
22 6705112
- 6705112 - MOUNT
23 17C720
- 17C720 - BOLT
24 17C524
- 17C524 - BOLT
25 25E15
- 25E15 - WASHER FLAT PLAIN
26 6705780
- 6705780 - PULLEY
27 25E21
- 25E21 - WASHER FLAT PLAIN
28 62D8
- 62D8 - NUT
29 17K7
- 17K7 - ELBOW
- W/Ref. 31
30 79K10
- 79K10 - O RING 10
31 6705497
- 6705497 - HOSE
32 6662695
- 6662695 - VALVE
- CONTROL- W/Ref. 46
33 763818
- 763818 - ELBOW
- W/Ref. 35
34 79K12
- 79K12 - O RING 10
35 30H40
- 30H40 - CLAMP
36 85D8
- 85D8 - NUT PRETRQ HEX LOCK
37 17C816
- 17C816 - BOLT
38 6705442
- 6705442 - HOSE
39 36K7
- 36K7 - FITTING
40 6703483
- 6703483 - PULLEY
- FAN DRIVE IDLER
- 5.25" (133
- 4 mm) OD
41 6704607
- 6704607 - BELT
- FAN
- 40.25" (1022
- 5 mm) long
42 6705168
- 6705168 - MOUNT
43 7219324
- 7219324 - VALVE
- RELIEF
- W/ O-rings - pressure to be set in field - Was 6686360
44 6705471
- 6705471 - MOUNT
45 35C610
- 35C610 - BOLT 5
46 6708307
- 6708307 - SHIELD
- Use W/ two piece rear door
47 6714890
- 6714890 - SHIELD
- Use W/ one piece rear door
48 6731060
- 6731060 - SHIELD
- Use W/ one piece rear door - Was 6717812
49 84G3716
- 84G3716 - SCREW THD ROLLING TT
50 6704720
- 6704720 - BELT
- ALT
51 6659574
- 6659574 - SEAL KIT
