753.0
/

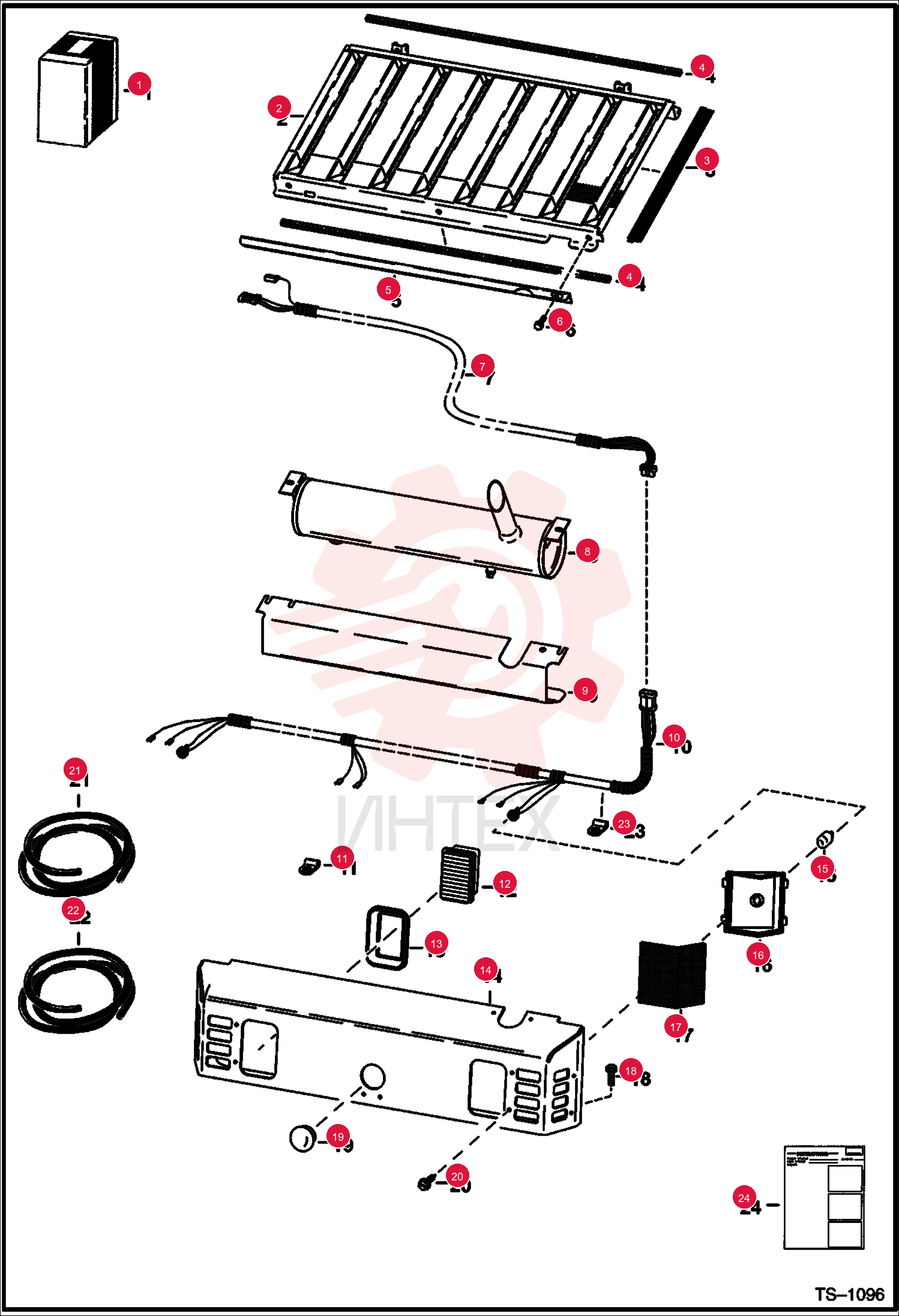

STEELHOOD 6704401

STEELHOOD 6704401

STEELHOOD 6704401

1 6704401

  • 6704401 - STEELHOOD
  • Ref. 2-8 & 10-24 - If loader is equipped W/Back-up Alarm & Plastic Hood
  • Also Order 6704163 Mount & 6577545 Grommet

2 6718291

  • 6718291 - SCREEN
  • EXCHANGER
  • Drill the gas spring mounting hole to .41" dia. - Was 6705131

3 6708981

  • 6708981 - BRACKET
  • Was 6703471

4 84G3112

  • 84G3112 - SCREW THD ROLLING TT

5 6704359

  • 6704359 - HARNESS
  • light/alarm

6 7100840

  • 7100840 - MUFFLER
  • EXHAUST
  • Was 6671667

7 6703812

  • 6703812 - SHIELD
  • muffler - for Use W/ 6660249 Muffler only - Not in Kit

8 6704232

  • 6704232 - HARNESS
  • light

9 30H35

  • 30H35 - CLIP INSULATED

10 6665922

  • 6665922 - HOUSING
  • LAMP ASSY
  • white - W/898731B Bulb - Was 6661353

11 6665431

  • 6665431 - SOCKET AY
  • threaded bulb

12 6703796

  • 6703796 - MOUNT
  • light

13 6703868

  • 6703868 - HOOD

14 6649481

  • 6649481 - LIGHT
  • WEDGE BASE

15 6704362

  • 6704362 - HOUSING
  • light

16 6703797

  • 6703797 - LENS

17 84G3716

  • 84G3716 - SCREW THD ROLLING TT

18 6718796

  • 6718796 - PLUG
  • Was 6660646

19 6706517

  • 6706517 - SCREW 10
  • self tapping - Was 6704400

20 6511855

  • 6511855 - TAPE BULK/FT 25'
  • self adhesive - sold per foot

21 6646705

  • 6646705 - MOULDING BULK/FT
  • sold per foot

22 30H27

  • 30H27 - CLAMP

23 6722084

  • 6722084 - INSTRUCTIONS
