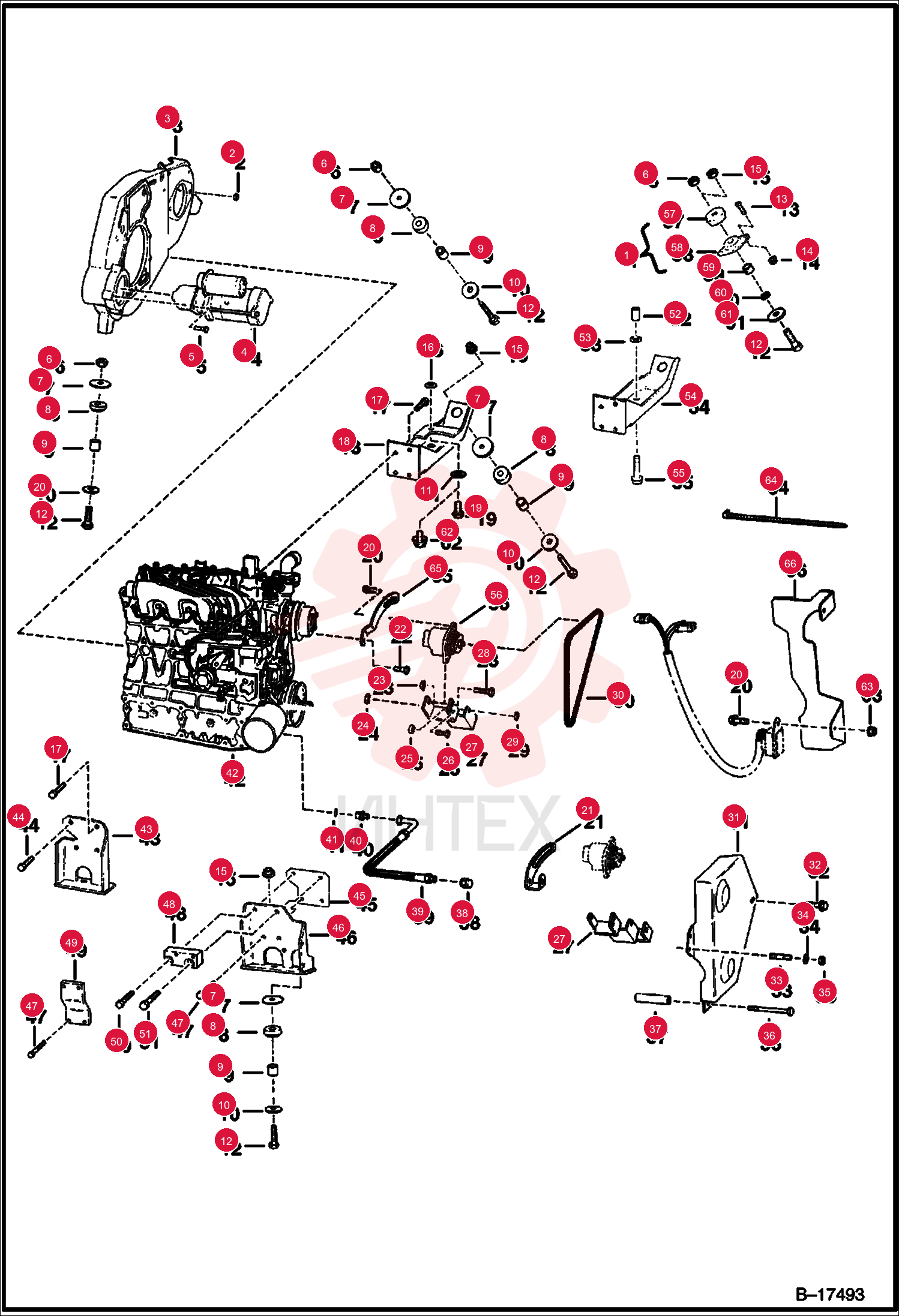

NUT PRETRQ HEX LOCK 85D8 (1)
1 85D8
- 85D8 - NUT PRETRQ HEX LOCK
2 6700541
- 6700541 - MOUNT
- ENG
3 35C620
- 35C620 - BOLT 5
- Was 17C000616B
4 6652918
- 6652918 - NUT
5 6705106
- 6705106 - WASHER 5
6 6661785
- 6661785 - MOUNT ENGINE
7 6706043
- 6706043 - SPACER
- Was 6705105
8 6661787
- 6661787 - WASHER SNUBBING
9 742640
- 742640 - WASHER
10 17C844
- 17C844 - BOLT
11 25G616
- 25G616 - SCREW SKT BTN HD CAP
12 57D6
- 57D6 - NUT HEX FLNG GR8
13 83D8
- 83D8 - LKNUT HEX FLG GR8
14 25E21
- 25E21 - WASHER FLAT PLAIN
- Use 3 maximum
15 6CM1225
- 6CM1225 - SCREW FL THD HEX CAP
16 6703585
- 6703585 - MOUNT
- for vertical hardware mounting of hydrostatic pump
17 7104568
- 7104568 - MOUNT
- engine & hyd. pump - for horizontal hardware mounting of hydrostatic pump - Was 6712161
18 17C820
- 17C820 - BOLT 5
19 35C516
- 35C516 - SCREW HEX HD W/F GR5
20 6704037
- 6704037 - BRACKET
- Was 6562694
21 1CM870
- 1CM870 - BOLT
22 57D5
- 57D5 - NUT HEX FLNG GR8
23 83D6
- 83D6 - LKNUT HEX FLG GR8
- Was 85D000006B
24 6568877
- 6568877 - WASHER
25 1CM890
- 1CM890 - BOLT
26 6562257
- 6562257 - BRACKET
- ALT
27 6562257
- 6562257 - BRACKET
- ALT
28 6701819
- 6701819 - MOUNT
29 17C556
- 17C556 - BOLT
30 17C648
- 17C648 - SCREW HEX CAP
31 6704720
- 6704720 - BELT
- ALT
- alternator - Was 6577036
32 84G3710
- 84G3710 - SCREW
33 6652764
- 6652764 - STUD
34 6EM60
- 6EM60 - WASHER
35 1DM6
- 1DM6 - NUT
36 2CM10120
- 2CM10120 - BOLT
37 6701818
- 6701818 - SPACER
38 36K6
- 36K6 - CAP
39 6704012
- 6704012 - HOSE
- Was 6572070
40 15K6
- 15K6 - ADAPTER
41 79K8
- 79K8 - O RING 10
42 5CM1025
- 5CM1025 - SCREW FL THD HEX CAP
43 6700535
- 6700535 - SPACER
44 6703981
- 6703981 - MOUNT
- spacer not used
45 6703981
- 6703981 - MOUNT
- W/Ref. 45
46 6CM1230
- 6CM1230 - BOLT
47 6704322
- 6704322 - MOUNT
- fuel filter
48 5CM1035
- 5CM1035 - BOLT
49 6CM1235
- 6CM1235 - BOLT
50 6577729
- 6577729 - BUSHING
51 25E21
- 25E21 - WASHER FLAT PLAIN
52 31C844
- 31C844 - BOLT
- Was 35C000844B
53 83D5
- 83D5 - LKNUT HEX FLG GR8
54 6610510
- 6610510 - STRAP
- TIE 10
- When ordering Ref. 31 for S/N 5086 15890 & Below
- also order (2) each of Ref. 20
- 63 & 64 - Use Ref. 64 to fasten engine harness out of the way of alternator belt
55 6705711
- 6705711 - BRACKET
56 6704918
- 6704918 - SHIELD
