Bobcat
/
753.0
/

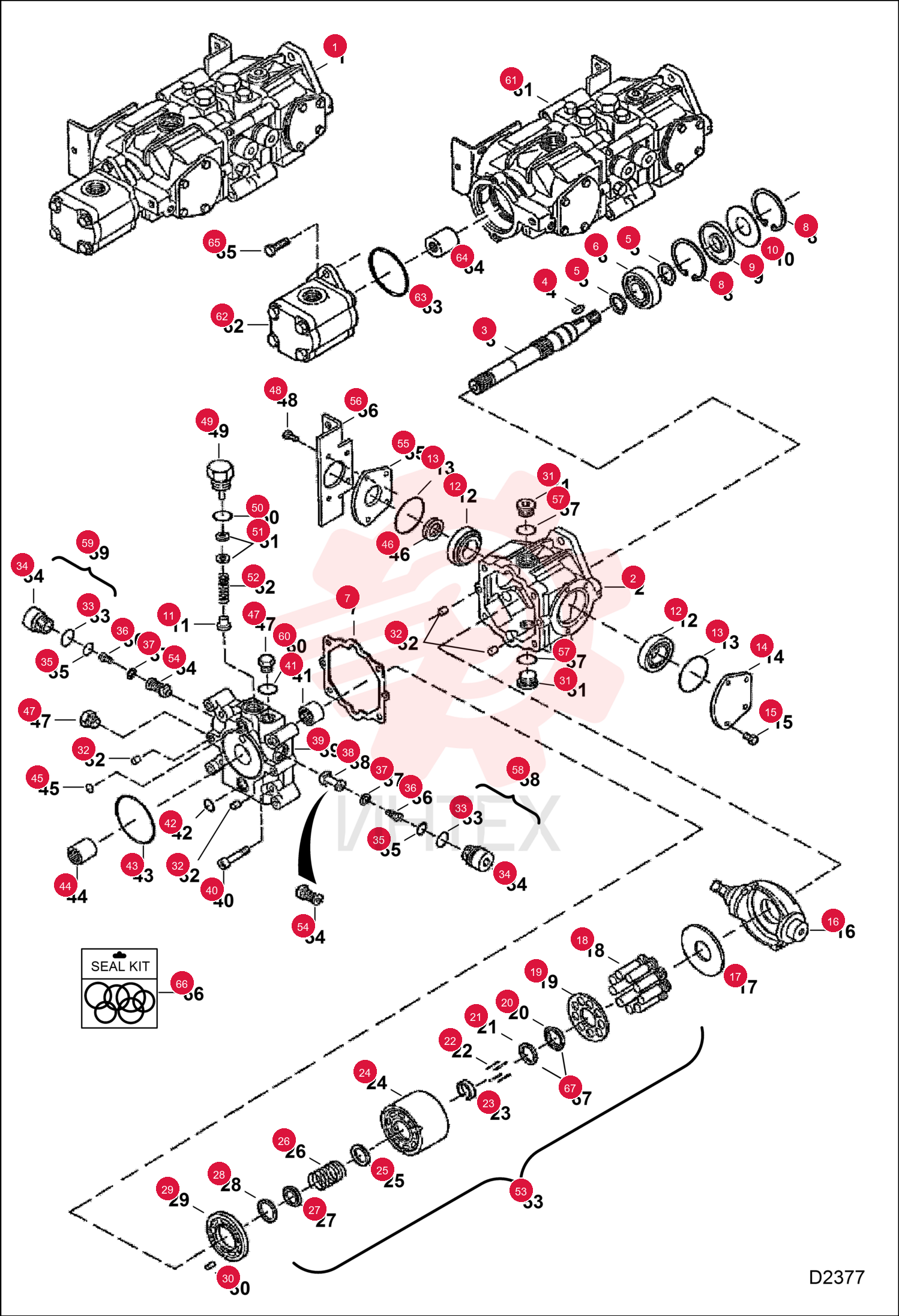

PUMP, HYD 7001070REM (2)

PUMP, HYD 7001070REM (2)

PUMP, HYD 7001070REM (2)

1 7001070REM

  • 7001070REM - PUMP
  • HYD
  • gray - must use 6576196 bracket & 6706096 bracket from original pump - Was 6671019REM Was 6669464REM

2 6669402

  • 6669402 - HOUSING

3 6682260

  • 6682260 - FRONT SHAFT
  • W/square key

4 6J807

  • 6J807 - KEY
  • WOODRUFF

5 6682261

  • 6682261 - KEY
  • square

6 658128

  • 658128 - RING
  • SNAP

7 654299

  • 654299 - BEARING

8 6650634

  • 6650634 - GASKET

9 669863

  • 669863 - RING
  • SNAP

10 7296603

  • 7296603 - SEAL
  • SHAFT
  • Was 6687191

11 7024884

  • 7024884 - WASHER
  • Was 6669409

12 6650652

  • 6650652 - CH.RELIEF
  • charge

13 6669411

  • 6669411 - BEARING

14 6660814

  • 6660814 - RING
  • QUAD

15 6657068

  • 6657068 - COVER

16 6650668

  • 6650668 - BOLT

17 6669404

  • 6669404 - SWASHPLATE

18 6650627

  • 6650627 - PLATE THR

19 6650630

  • 6650630 - RETAINER

20 6669401

  • 6669401 - VALVE
  • PLATE

21 6650636

  • 6650636 - PIN

22 47K8

  • 47K8 - PLUG
  • W/Ref. 57

23 79K12

  • 79K12 - O RING 10

24 6518460

  • 6518460 - PIN

25 6657028

  • 6657028 - O-RING

26 79K8

  • 79K8 - O RING 10

27 7023162

  • 7023162 - CAP
  • END
  • Was 6669406

28 6650637

  • 6650637 - BOLT

29 6650635

  • 6650635 - BEARING

30 6650647

  • 6650647 - O-RING

31 6645081

  • 6645081 - O-RING

32 6650675

  • 6650675 - COUPLER

33 6650646

  • 6650646 - O-RING

34 6678226

  • 6678226 - SEAL
  • OIL
  • Was 6673881

35 6645086

  • 6645086 - PLUG

36 4CM820

  • 4CM820 - SCREW HEX HD 8.8
  • Was 1CM820

37 6650648

  • 6650648 - PLUG
  • charge relief

38 79K10

  • 79K10 - O RING 10

39 6669410

  • 6669410 - KIT
  • SHIM
  • charge relief

40 6658301

  • 6658301 - SPRING

41 6661758

  • 6661758 - ROT GROUP
  • W/Ref. 18-28

42 6657067

  • 6657067 - COVER
  • W/Ref. 46

43 6706096

  • 6706096 - MOUNT

44 79K12

  • 79K12 - O RING 10

45 6670684

  • 6670684 - VALVE
  • CHECK

46 6670685

  • 6670685 - VALVE
  • RELIEF
  • Was 6689601

47 6661481

  • 6661481 - O-RING

48 7001070

  • 7001070 - PUMP
  • HYD TANDEM W/O GEAR PUMP

49 6669412

  • 6669412 - 0'RING

50 6650677

  • 6650677 - COUPLER

51 6666339

  • 6666339 - SCREW

52 6671516

  • 6671516 - KIT
  • SEAL
  • - Ref. 2
  • 3
  • 12 & 41 - Also includes Ref. 7
  • 9
  • 13
  • 34
  • 35
  • 42
  • 43
  • 45 & 46 on this page - Was 7296604

53 7339370

  • 7339370 - KIT GUIDE
  • W/Ref. 21 & (4) 22
