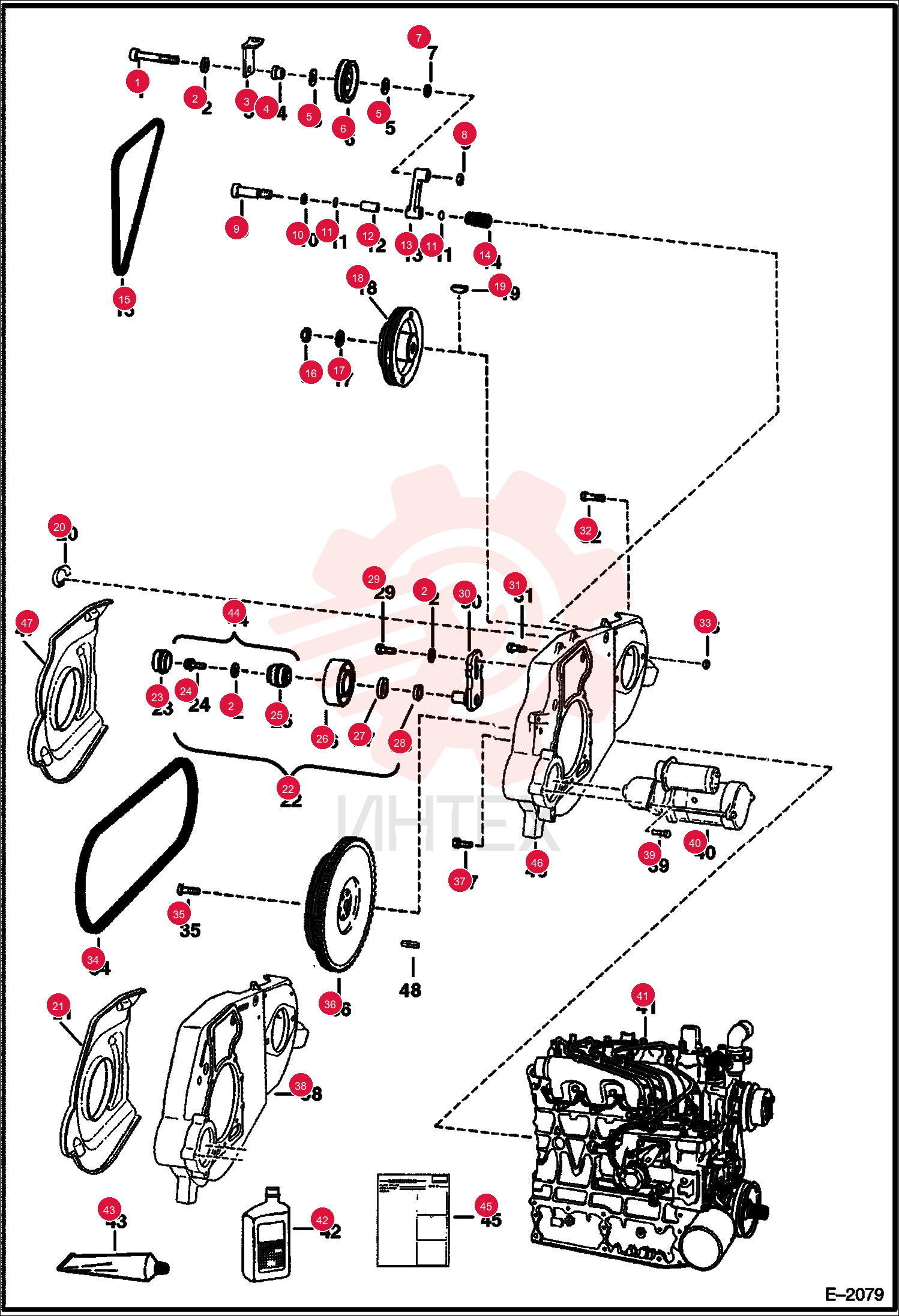

SCREW 73G656 (2)
1 73G656
- 73G656 - SCREW
2 6704484
- 6704484 - WASHER
- thrust
3 6702474
- 6702474 - RETAINER
- fan drive idler belt
4 6704443
- 6704443 - BUSHING
- spacer
5 6660995
- 6660995 - RING
- GREASE
- grease
6 6662997
- 6662997 - PULLEY
- FAN DRIVE IDLER
- fan drive idler - Was 6653253
7 6704444
- 6704444 - WASHER
8 61D6
- 61D6 - NUT HEX FINISHED GR5
9 38C820
- 38C820 - SCREW
- shoulder - Was 6577807
10 6655781
- 6655781 - BEARING
- THRUST
11 6704820
- 6704820 - O-RING
12 6670682
- 6670682 - BEARING
- nylon
13 6725212
- 6725212 - ARM
- IDLER
- W/Ref. 12 - Was 6703507
14 6700115
- 6700115 - SPRING
- TORSION
15 6669034
- 6669034 - BELT
- FAN
- fan drive - Was 6701158
16 92D12
- 92D12 - NUT 5
17 6576033
- 6576033 - WASHER 5
18 6704424
- 6704424 - PULLEY
- PUMP HYD
- to hyd. pump
19 6J807
- 6J807 - KEY
- WOODRUFF
20 6703022
- 6703022 - SPRING
- CLIP
21 6704450
- 6704450 - SHIELD
22 6660967
- 6660967 - CAP
- GREASE
- grease
23 35C612
- 35C612 - SCREW FLGD HEX CAP
24 6704416
- 6704416 - IDLER
- idler - Also Order Ref. 44
25 6661066
- 6661066 - SEAL
- Also Order Ref. 28
26 6661070
- 6661070 - SLEEVE
- wear - Also Order Ref. 27
27 17C620
- 17C620 - BOLT
28 6708625
- 6708625 - BRACKET
- Was 6706191
29 6CM1230
- 6CM1230 - BOLT
30 17C828
- 17C828 - BOLT
- hyd pump mount
31 85D8
- 85D8 - NUT PRETRQ HEX LOCK
32 6660994
- 6660994 - BELT
- DRIVE
- pump drive
33 6598275
- 6598275 - BOLT
- Was 6652487
34 6704874
- 6704874 - FLYWHEEL
35 6510470
- 6510470 - ВЕНЕЦ МАХОВИКА
- BOBCAT
36 RG60000
- RG60000 - ВЕНЕЦ МАХОВИКА
- AUTOWELT
37 5CM1025
- 5CM1025 - SCREW FL THD HEX CAP
38 35C620
- 35C620 - BOLT 5
39 6633583
- 6633583 - SEALANT
- POLYURETHANE 300 ML
- Use W/Ref. 23 & 26
- 28 & 30
40 7302291
- 7302291 - KIT
- BELT TENSIONER
- Ref. 1
- 3-11
- 13 & 14
41 6722248
- 6722248 - KIT
- REPAIR
- bearing - Ref. 23
- 25
- 27 & 28
42 6722236
- 6722236 - INSTRUCTIONS
43 6728062
- 6728062 - MOUNT
44 6726938
- 6726938 - SHIELD
