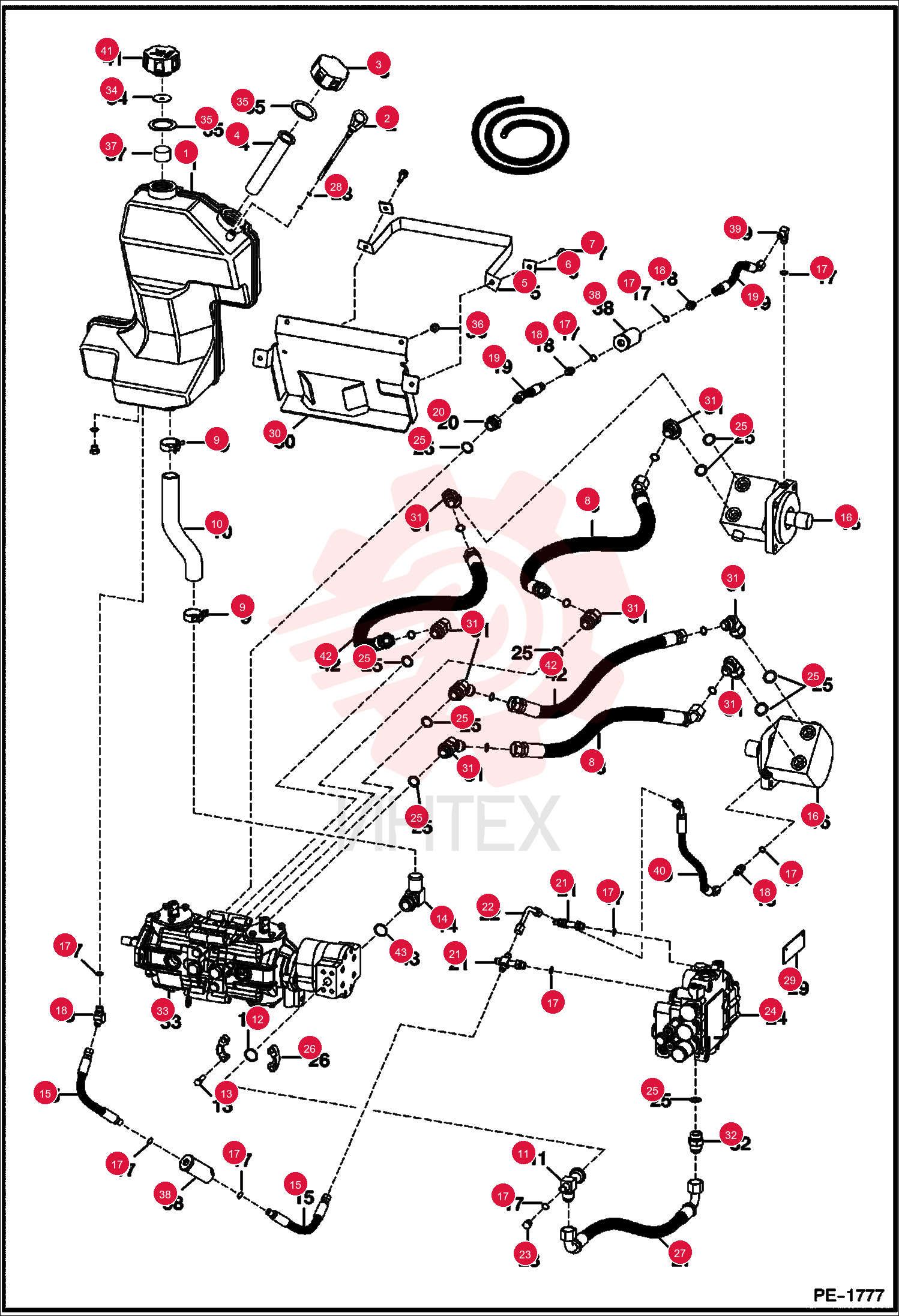

TANK 7108991
1 7108991
- 7108991 - TANK
- W/vented breather cap & non vented fill cap - Was 6732278
2 6577459
- 6577459 - DIPSTICK
- W/Ref. 28
3 6728149
- 6728149 - CAP
- HYD NON VENTED
4 7120881
- 7120881 - SCREEN
- FILLER
- Was 6569219
5 6732805
- 6732805 - BAND
6 6559447
- 6559447 - WASHER
7 84G3716
- 84G3716 - SCREW THD ROLLING TT
8 6675144
- 6675144 - HOSE
- HYD ASSY
- mega seal - Use W/Ref. 31 (6718181 Elbow)
9 5HM42
- 5HM42 - HOSE CLAMP
- constant tension
10 6732935
- 6732935 - HOSE
- 1.25" (31
- 8 mm) I.D. - Was 6732804
11 7103953
- 7103953 - TEE
- split flange - Was 6717662
12 55K214
- 55K214 - O-RING
13 17C620
- 17C620 - BOLT
14 6715191
- 6715191 - ELBOW
- W/Ref. 25
15 6725192
- 6725192 - HOSE
16 79K6
- 79K6 - O RING 10
17 21KB0606
- 21KB0606 - FITTING
- HYD TEE
- W/Ref. 17
18 15KB0606
- 15KB0606 - FITTING
- HYD CONNECTOR
- W/Ref. 17
19 6730769
- 6730769 - HOSE
- 14.5" (368
- 3 mm) long
20 15KB0612
- 15KB0612 - FITTING
- HYD CONNECTOR
- W/Ref. 25
21 6817552
- 6817552 - CROSS
- W/Ref. 17 - Was 6805241
22 6577690
- 6577690 - TUBELINE
23 24K5
- 24K5 - PLUG
- W/Ref. 17
24 79K12
- 79K12 - O RING 10
25 19J12
- 19J12 - CLAMP
26 6734246
- 6734246 - HOSE
- 56" (1422
- 4 mm) long - Rerouted over top of gear pump - (1) 45 degree elbow
- (1) straight end
27 6733358
- 6733358 - HOSE
- 29" (736
- 6 mm) long - (2) 90 degree elbows - Was 6734273
28 25K20010
- 25K20010 - O RING 10
29 6732806
- 6732806 - BRACKET
- tank
30 6737453
- 6737453 - ELBOW
- W/Ref. 25 - mega seal - Was 6718181
31 15KB1212
- 15KB1212 - FITTING
- HYD CONNECTOR
- W/Ref. 25
32 6701552
- 6701552 - BAFFLE
33 6700631
- 6700631 - GASKET CAP TANK HYDR
34 84G3712
- 84G3712 - SCREW THD ROLLING TT
35 6703427
- 6703427 - FOAM FLT5
36 6661022
- 6661022 - FILTER
- OIL HYD IN-LINE
37 17KB0606
- 17KB0606 - FTG HYD 90 ELBOW
- W/Ref. 17
38 6715251
- 6715251 - HOSE
39 6577785
- 6577785 - CAP
- HYD BREATHER
- breather - Also Order Ref. 37 & 39 - Was 6727475
40 6736200
- 6736200 - HOSE
- mega seal - Was 6675143
41 79K16
- 79K16 - O RING 10
