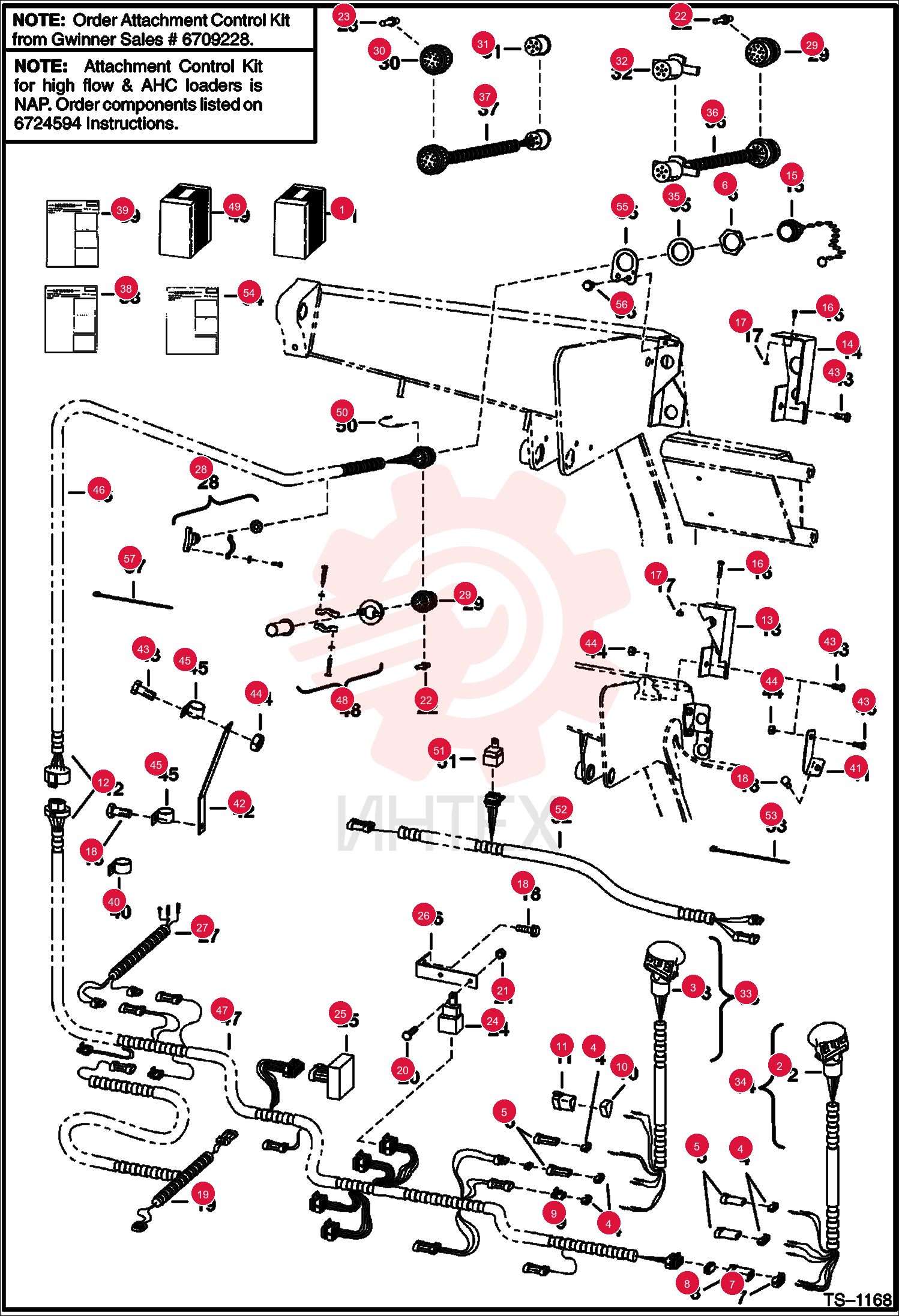

KIT, ELECTRICAL CONTROLS 6709228

KIT, ELECTRICAL CONTROLS 6709228

KIT, ELECTRICAL CONTROLS 6709228

1 6709228

  • 6709228 - KIT
  • ELECTRICAL CONTROLS
  • controls - W/handles - Ref. 2-29 - Was SALES

2 6680413

  • 6680413 - HANDLE
  • SWITCH DLX
  • RH - multi switch - Also Order Ref. 4
  • 5
  • 7 & 8 - Was 6706340

3 6640690

  • 6640690 - PIN

4 6641176

  • 6641176 - SEAL

5 6680412

  • 6680412 - HANDLE DLX LEFT
  • L.H. - Also Order Ref. 4
  • 5 & 9-11 - Was 6707976

6 6640690

  • 6640690 - PIN

7 6640691

  • 6640691 - TERMINAL

8 6662257

  • 6662257 - PIN

9 6680447

  • 6680447 - DECAL
  • Was 6677370

10 6641176

  • 6641176 - SEAL

11 6641180

  • 6641180 - LOCK METRI PACK
  • Use W/ 2-pin connector

12 6640700

  • 6640700 - LOCK METRI PACK
  • 3-pin

13 6641179

  • 6641179 - CONNECTOR METRI PACK
  • 2-pin

14 6640699

  • 6640699 - CONNECTOR METRI PACK
  • 3-pin

15 6664036

  • 6664036 - NUT

16 6641181

  • 6641181 - LOCK
  • 6-pin

17 6641173

  • 6641173 - CONNECTOR
  • 6-pin

18 6641178

  • 6641178 - CONNECTOR METRI PACK
  • 2-pin

19 6664800

  • 6664800 - LOCK SECONDARY
  • 3-pin triangle - Was 6664186

20 6664599

  • 6664599 - CONNECTOR 3 PIN
  • 3-pin triangle - Was 6664184

21 6706753

  • 6706753 - MOUNT
  • W/Ref. 12

22 6711621

  • 6711621 - MOUNT
  • W/Ref. 46

23 6664035

  • 6664035 - CAP

24 45G508

  • 45G508 - BOLT

25 50D5

  • 50D5 - NUT

26 84G3712

  • 84G3712 - SCREW THD ROLLING TT
  • Was 84G003716B

27 6706552

  • 6706552 - HARNESS
  • for grader & stump grinder - Not in Kit

28 45G1212

  • 45G1212 - BOLT

29 50D12

  • 50D12 - NUT

30 6664040

  • 6664040 - PIN 5
  • male

31 6664041

  • 6664041 - PIN 10
  • female

32 6651975

  • 6651975 - SWITCH
  • RELAY MAGNETIC
  • relay - Use W/Ref. 12

33 6670312

  • 6670312 - SWITCH
  • MAGNETIC
  • relay - Use W/Ref. 46 - Was 6665005

34 6664388

  • 6664388 - DIODE
  • memory

35 6702650

  • 6702650 - MOUNT FUSE

36 6706446

  • 6706446 - HARNESS
  • not used on BICS loaders

37 6649028

  • 6649028 - CONNECTOR

38 6667569

  • 6667569 - CONNECTOR
  • RECEPTACLE
  • Also Order (14) of Ref. 22 - W/Ref. 48 - Was 6664039

39 6665001

  • 6665001 - CONNECTOR
  • ELECTRICAL
  • Also Order (6) of Ref. 23 - W/Ref. 48 - Was 6664034

40 6664181

  • 6664181 - CONNECTOR
  • trailer style - Not in Kits

41 6664182

  • 6664182 - CONNECTOR
  • trailer style - Not in Kits

42 6706568

  • 6706568 - KIT
  • HANDLE
  • handle - Ref. 3 - 5
  • 9 - 11 & 34

43 6706567

  • 6706567 - KIT
  • HANDLE DLX RH
  • handle - W/Ref. 2
  • 5
  • 7
  • 8 & 34

44 6664037

  • 6664037 - WASHER

45 6706392

  • 6706392 - HARNESS
  • connects old loader harness to new attachment harness - W/Ref. 29 & 32 - Not in Kits

46 6706391

  • 6706391 - HARNESS
  • connects new loader harness to old attachment harness - W/Ref. 30 & 31 - Not in Kits

47 6722759

  • 6722759 - INSTRUCTIONS
  • For Ref. 3 - 5 & 9 - 11

48 6722758

  • 6722758 - INSTRUCTIONS
  • For Ref. 1(6709228 Controls Kit)

49 6724594

  • 6724594 - INSTRUCTIONS
  • W/Ref. 1 (6713013 Controls Kit) - high flow and/or AHC

50 30H49

  • 30H49 - CLAMP

51 6709176

  • 6709176 - BRACKET
  • 873 only

52 6709177

  • 6709177 - BRACKET
  • 873 only

53 17C612

  • 17C612 - SCREW HEX CAP

54 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

55 30H46

  • 30H46 - CLIP

56 6710299

  • 6710299 - HARNESS
  • ATTACHMENT PWM

57 6710300

  • 6710300 - HARNESS

58 6669286

  • 6669286 - CLAMP
  • W/saddles

59 6716799

  • 6716799 - KIT
  • AUX
  • dual functions aux. - Ref. 50-54

60 6716844

  • 6716844 - HARNESS
  • jumper

61 6670312

  • 6670312 - SWITCH
  • MAGNETIC
  • relay

62 6716798

  • 6716798 - HARNESS
  • KP diverter

63 6624289

  • 6624289 - STRAP
  • TIE

64 6900601

  • 6900601 - INSTRUCTIONS
  • for aux. functions

65 6714999

  • 6714999 - MOUNT

66 84G3112

  • 84G3112 - SCREW THD ROLLING TT

67 6610510

  • 6610510 - STRAP
  • TIE 10
