Главная
/
Бренды
/
Bobcat
/
753.0
/

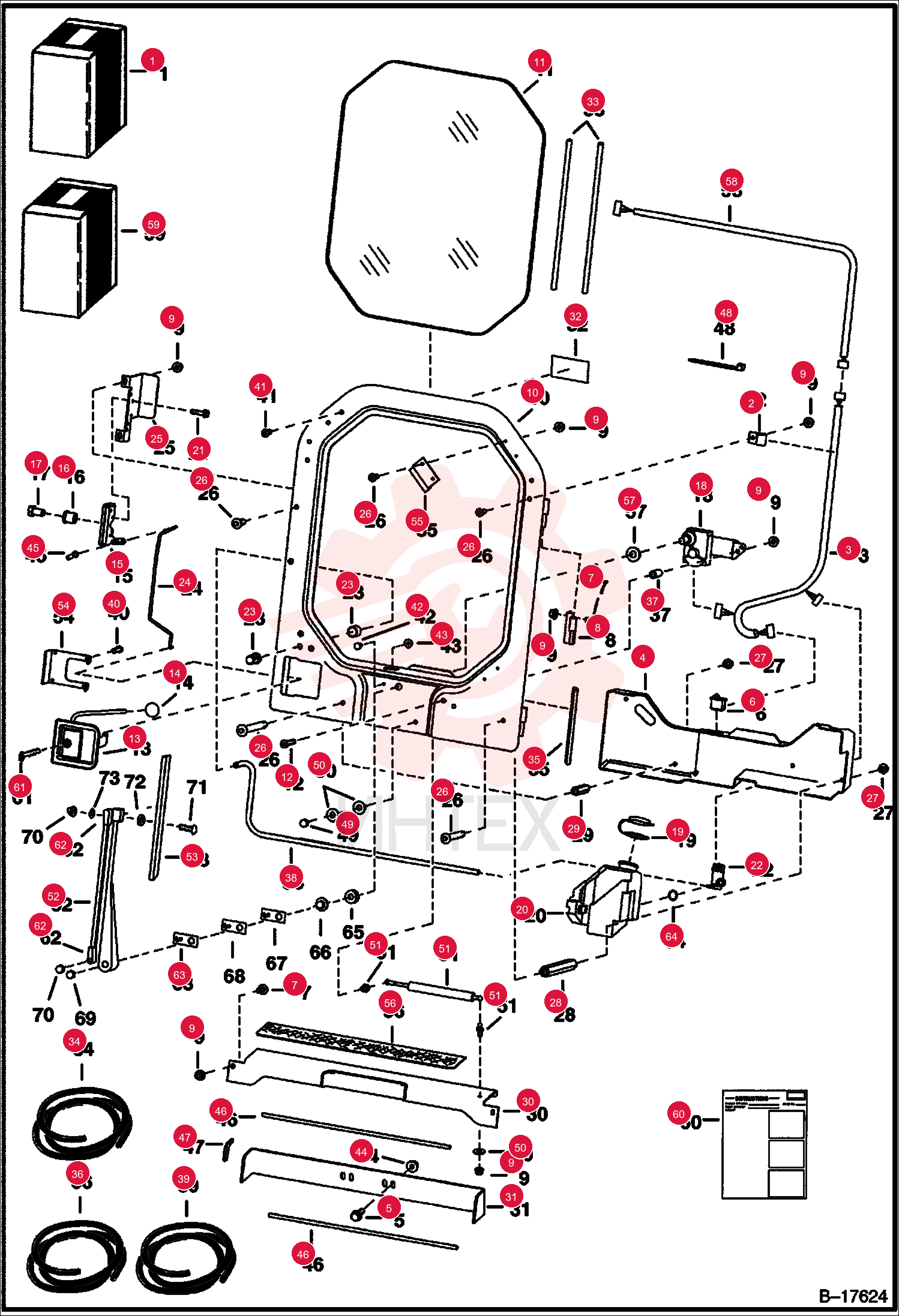

KIT, DOOR CAB 6708973 (3)

KIT, DOOR CAB 6708973 (3)

KIT, DOOR CAB 6708973 (3)

1 6708973

  • 6708973 - KIT
  • DOOR CAB
  • door - Ref. 2 - 29
  • 32 - 43
  • 45
  • 48 - 55
  • 57 & 64 - Also Order Ref. 58 - Was 6708443

2 30H37

  • 30H37 - CLIP INSULATED

3 6712259

  • 6712259 - HARNESS
  • W/(2) diodes

4 6707179

  • 6707179 - SHIELD

5 35C616

  • 35C616 - SCREW FLGD HEX CAP

6 6665707

  • 6665707 - SWITCH FRONT WIPER

7 10C512

  • 10C512 - BOLT SQ NECK RND HD

8 6707216

  • 6707216 - HINGE

9 83D5

  • 83D5 - LKNUT HEX FLG GR8
  • for standard door

10 83D5

  • 83D5 - LKNUT HEX FLG GR8
  • for special applications door

11 6707220

  • 6707220 - FRAME
  • DOOR CAB
  • Also Order Ref. 32

12 6707225

  • 6707225 - WINDOW
  • .25" thick - safety glass - for standard door

13 6708499

  • 6708499 - WINDOW
  • .5" thick - plexiglass - for special applications door

14 25G528

  • 25G528 - BOLT

15 6665530

  • 6665530 - LATCH
  • W/Ref. 14 - Also Order Ref. 59

16 6647635

  • 6647635 - KNOB

17 6665531

  • 6665531 - LATCH

18 6568047

  • 6568047 - STRIKER
  • bushing

19 17C712

  • 17C712 - BOLT

20 6670165

  • 6670165 - CLIP

21 6665532

  • 6665532 - MOTOR
  • WIPER
  • W/splined shaft

22 6665605

  • 6665605 - CAP

23 6707178

  • 6707178 - TANK

24 35C416

  • 35C416 - BOLT

25 6664554

  • 6664554 - PUMP
  • WIPER WASHER

26 6666767

  • 6666767 - NOZZLE
  • washer - Was 6664555

27 6707221

  • 6707221 - ROD
  • latch release

28 6707222

  • 6707222 - MOUNT
  • latch

29 25G512

  • 25G512 - SCREW
  • for standard door

30 25G512

  • 25G512 - SCREW
  • for special applications door

31 35C510

  • 35C510 - SCREW FLGD HEX CAP

32 6707223

  • 6707223 - COUPLING

33 6707224

  • 6707224 - COUPLING

34 6707239

  • 6707239 - SHIELD
  • bolts to cab

35 6707236

  • 6707236 - SHIELD
  • bolts to main frame

36 7234369

  • 7234369 - DECAL
  • EXIT
  • Was 6707852

37 6554149

  • 6554149 - CORD
  • bulk - sold per foot

38 6665568

  • 6665568 - SEAL BULK
  • bulk - sold per foot

39 6513152

  • 6513152 - SEAL
  • BULK/FT 25
  • bulk - sold per foot

40 6708096

  • 6708096 - BUSHING

41 6708310

  • 6708310 - HOSE
  • BULK/FT 100
  • clear - 0.154" ID - sold per foot

42 45G1008

  • 45G1008 - BOLT

43 5289686

  • 5289686 - PLUG
  • black - 0.38" dia hole

44 17C408

  • 17C408 - BOLT

45 55D4

  • 55D4 - NUT

46 83D6

  • 83D6 - LKNUT HEX FLG GR8

47 6512274

  • 6512274 - CLIP
  • NLA - Was 6512274

48 6610510

  • 6610510 - STRAP
  • TIE 10

49 46D5

  • 46D5 - NUT LOW CROWN ACORN

50 25E16

  • 25E16 - WASHER FLAT PLAIN

51 6630797

  • 6630797 - GAS SPRING

52 6632221

  • 6632221 - BALL STUD
  • ball

53 2756257

  • 2756257 - CLIP
  • spring

54 6664095

  • 6664095 - ARM
  • WIPER
  • W/Ref. 62 & 63 - for splined motor shaft

55 6664096

  • 6664096 - BLADE
  • WIPER WINDOW
  • Use W/Ref. 52 (6664095 arm)

56 6703751

  • 6703751 - RETAINER

57 6708500

  • 6708500 - CLAMP
  • for special applications door

58 6564833

  • 6564833 - SAFETY
  • Was 6703757

59 27E10

  • 27E10 - WASHER

60 6708975

  • 6708975 - KIT
  • SHIELD
  • shield - Ref. 5
  • 7
  • 9
  • 30
  • 31
  • 44
  • 46
  • 47
  • 56 & 64

61 6693241

  • 6693241 - KEY (2)
  • ignition - single key W/O ring

62 6708225

  • 6708225 - HARNESS
  • not in kit - for non BICS loaders only

63 6670288

  • 6670288 - ENDCOUPLR
  • plastic

64 6670289

  • 6670289 - BRACKET

65 6666766

  • 6666766 - GROMMET

66 6724029

  • 6724029 - INSTRUCTIONS
