843.0
/

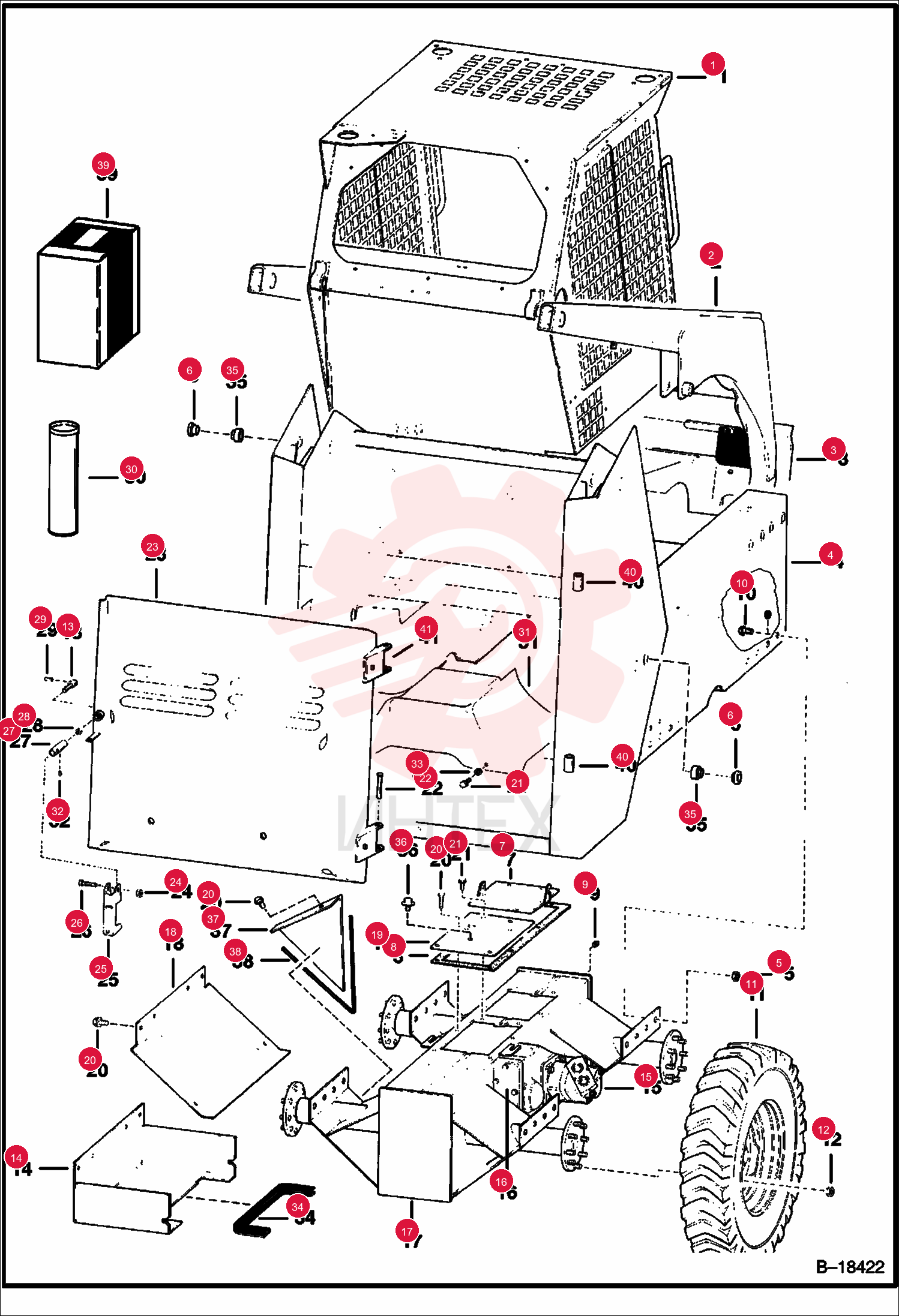

FRAME, MAIN 6576709 (3)

FRAME, MAIN 6576709 (3)

FRAME, MAIN 6576709 (3)

1 6576709

  • 6576709 - FRAME
  • MAIN
  • Was 6569374

2 85D12

  • 85D12 - NUT
  • 5

3 6555989

  • 6555989 - BUSHING
  • Weld On

4 6703117

  • 6703117 - GASKET
  • TRANSMISSION
  • Was 6553833

5 40K12

  • 40K12 - PLUG

6 31C1228

  • 31C1228 - BOLT
  • flange head

7 6564669

  • 6564669 - NUT WHEEL
  • wheel - Was 6519169

8 6565629

  • 6565629 - SCREW

9 6565076

  • 6565076 - COVER
  • R.H.

10 6565077

  • 6565077 - COVER
  • L.H.

11 6576557

  • 6576557 - COVER

12 84G3712

  • 84G3712 - SCREW THD ROLLING TT

13 84G3716

  • 84G3716 - SCREW THD ROLLING TT

14 6564340

  • 6564340 - PIN HINGE

15 6704328

  • 6704328 - TAILGATE
  • Was 6565073

16 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

17 6563681

  • 6563681 - HANDLE

18 38C624

  • 38C624 - BOLT 5
  • Was 6564599

19 6565628

  • 6565628 - NUT

20 6565627

  • 6565627 - NUT 5

21 6599361

  • 6599361 - PIN 5

22 6632501

  • 6632501 - SEALANT
  • POLYURETHANE
  • Use to fill seam on top of chaincase

23 6563677

  • 6563677 - COVER
  • DUST
  • dust

24 6576745

  • 6576745 - COVER
  • dust

25 33G404

  • 33G404 - SET SCRW5

26 25E17

  • 25E17 - WASHER FLAT PLAIN

27 6599653

  • 6599653 - INSULATIO
  • bulk - sold per foot - Order 24" (609
  • 6 mm) Per Side

28 6555987

  • 6555987 - BUSHING
  • weld on

29 6577810

  • 6577810 - SHIELD

30 6513152

  • 6513152 - SEAL
  • BULK/FT 25
  • bulk - sold per foot - Order 20" (508 mm) Per Side

31 6579448

  • 6579448 - KIT
  • LATCH REAR
  • kit - Ref. 13
  • 24-29 & 32

32 6562224

  • 6562224 - BUSHING

33 6562225

  • 6562225 - HINGE
