843.0
/

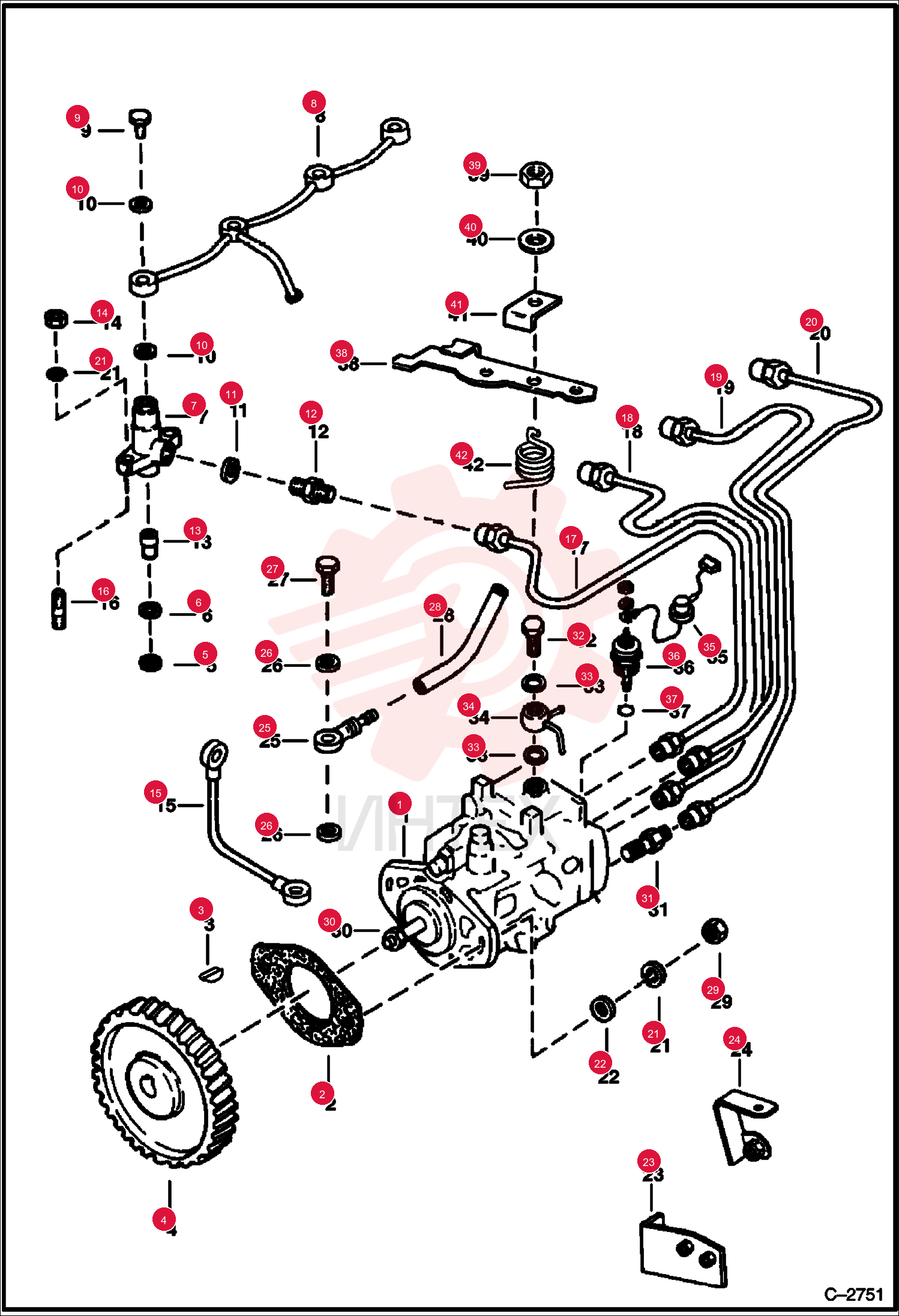

PUMP 6599299

PUMP 6599299

PUMP 6599299

1 6599299

  • 6599299 - PUMP

2 6599241

  • 6599241 - GASKET

3 6599268

  • 6599268 - GEAR

4 6599238

  • 6599238 - WASHER

5 6599301

  • 6599301 - INJECTOR
  • W/Ref. 13

6 6599273

  • 6599273 - PIPE
  • leak off NLA - Was 6599273

7 6599940

  • 6599940 - BOLT
  • NLA - Was 6599940

8 6599252

  • 6599252 - WASHER

9 6599939

  • 6599939 - WASHER

10 62D5

  • 62D5 - NUT

11 6599279

  • 6599279 - PIPE

12 6599265

  • 6599265 - PIPE
  • NLA - Was 6599265

13 4E5

  • 4E5 - WASHER

14 6599942

  • 6599942 - WASHER

15 6599944

  • 6599944 - BRACKET
  • injector pump

16 6599943

  • 6599943 - BRACKET
  • injector pump

17 6511033

  • 6511033 - CONNECTOR

18 2FM12155

  • 2FM12155 - WASHER

19 6666396

  • 6666396 - SCREW
  • Was 6555922

20 6599169

  • 6599169 - NUT

21 6630540

  • 6630540 - NUT

22 6630542

  • 6630542 - ADAPTER

23 6630545

  • 6630545 - BOLT

24 6630543

  • 6630543 - GASKET
  • WASHER

25 3490325

  • 3490325 - WIRE
  • Was 6630547

26 6630546

  • 6630546 - SOLENOID
  • SHUTOFF FUEL
  • shut-off - W/Ref. 37

27 6641378

  • 6641378 - LEVER
  • NLA - Was 6641378

28 6641379

  • 6641379 - NUT

29 6641380

  • 6641380 - WASHER

30 6641381

  • 6641381 - CLAMP

31 6641382

  • 6641382 - SPRING
