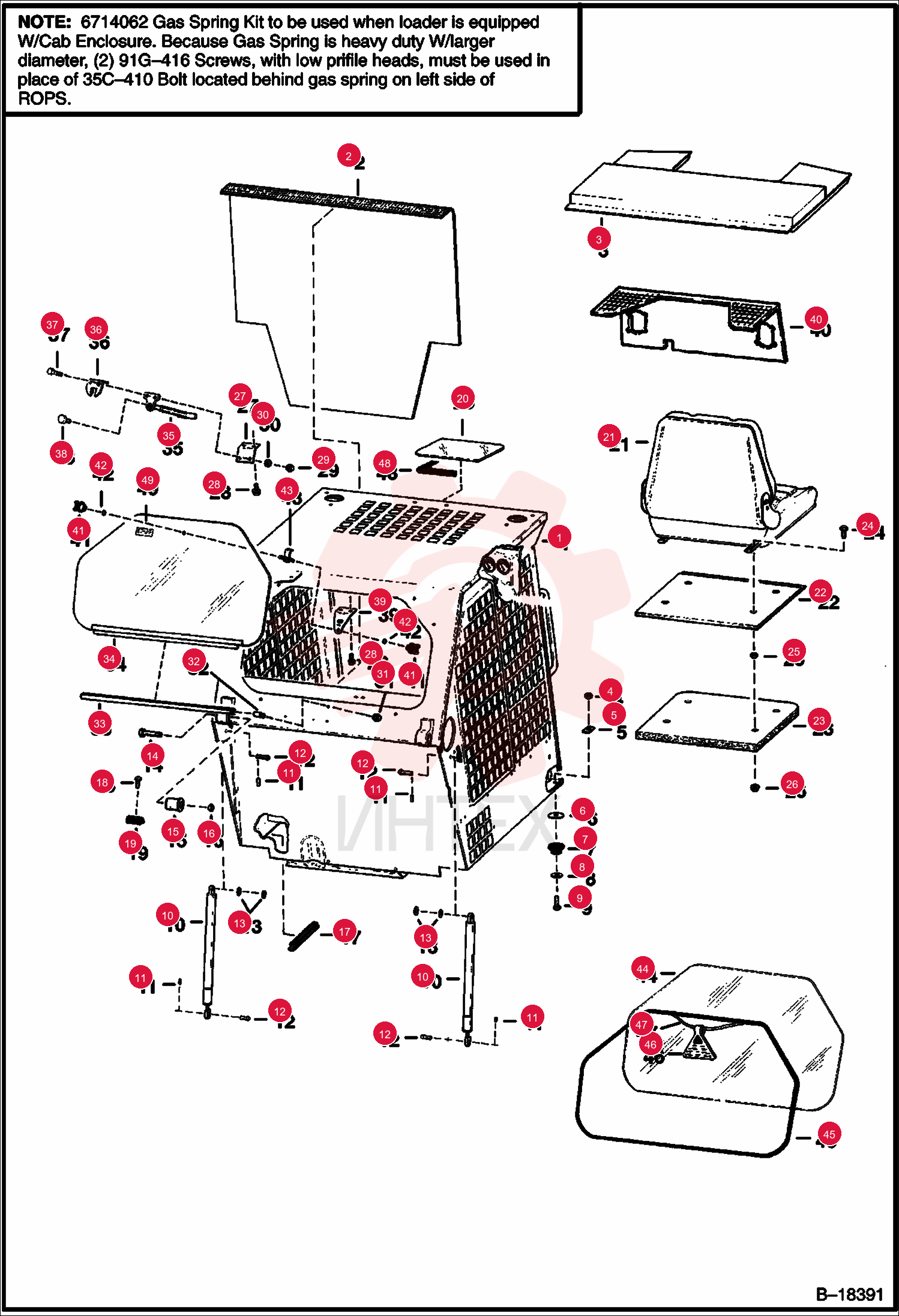

INSULATION 6576494 (1)
1 6576494
- 6576494 - INSULATION
- Was 6568179
2 6565373
- 6565373 - INSULATION
3 85D8
- 85D8 - NUT PRETRQ HEX LOCK
4 6553709
- 6553709 - WASHER RECTANGULAR
5 6543321
- 6543321 - WASHER
6 6560633
- 6560633 - DAMPER
- VIBRATION
7 6515817
- 6515817 - WASHER
8 17C840
- 17C840 - BOLT
9 6700171
- 6700171 - CYLINDER
- GAS
- W/O lock - Also Order 6675257 clevis - Was 6700000
10 6670730
- 6670730 - SPRING
- GAS
- W/O lock
- heavy duty gas spring - includes clevis on both ends - SEE NOTE
11 91G416
- 91G416 - SCREW
- SEE NOTE
12 6631418
- 6631418 - RING RUE
13 6567743
- 6567743 - PIN
14 6567604
- 6567604 - SPACER
15 17C1056
- 17C1056 - BOLT
16 6562602
- 6562602 - BUSHING ISOLATOR
- rubber
17 83D10
- 83D10 - NUT 5
18 6555351
- 6555351 - SEAL BULK/FT 15
- 36" (914
- 4 mm) - sold per foot
19 61G416
- 61G416 - BOLT
20 6568475
- 6568475 - STOP
21 6701986
- 6701986 - WINDOW
- TOP
- top - not Use W/Ref. 48 - Was 6563391
22 6705735
- 6705735 - WINDOW TOP CAB
- top - Use W/Ref. 48
23 6577439
- 6577439 - INSULATION
- Was 6577273
24 6577273
- 6577273 - INSULATION
- Was 6567902
25 35C514
- 35C514 - SCREW FLGD HEX CAP
- Was 35C000516B
26 61D5
- 61D5 - NUT HEX FINISHED GR5
27 83D5
- 83D5 - LKNUT HEX FLG GR8
28 6568540
- 6568540 - MOUNT W L
29 84G3112
- 84G3112 - SCREW THD ROLLING TT
30 50D10
- 50D10 - LOCKNUT
31 25E10
- 25E10 - WASHER FLAT PLAIN
32 59D4
- 59D4 - NUT LOCK HEX PT
33 6576513
- 6576513 - BOLT
- Was 6630927
34 6630926
- 6630926 - HINGE
35 6630925
- 6630925 - WINDOW
36 85G1014
- 85G1014 - SCREW
37 6571533
- 6571533 - MOUNT
38 6568321
- 6568321 - INSULATION
- 843 Only
39 6571529
- 6571529 - KNOB
40 58K109
- 58K109 - O RING 10
41 6571532
- 6571532 - BRACKET
42 6704891
- 6704891 - WINDOW REAR
43 6658352
- 6658352 - MOULDING
- 8.5' (259 cm) - sold per foot
44 6731478
- 6731478 - TAG EXIT
- Was 6559515
45 6554149
- 6554149 - CORD
- bulk - sold per foot - Order 8.5' (2590
- 8 mm) - also Order Ref. 46 (6731478 exit tag)
46 6664351
- 6664351 - MOULDING
- Use W/cab headliner & Ref. 20 (6705735 window)
47 6665012
- 6665012 - SEAL RUBBER
- Use W/O cab headliner & Ref. 20 (6705735 window)
