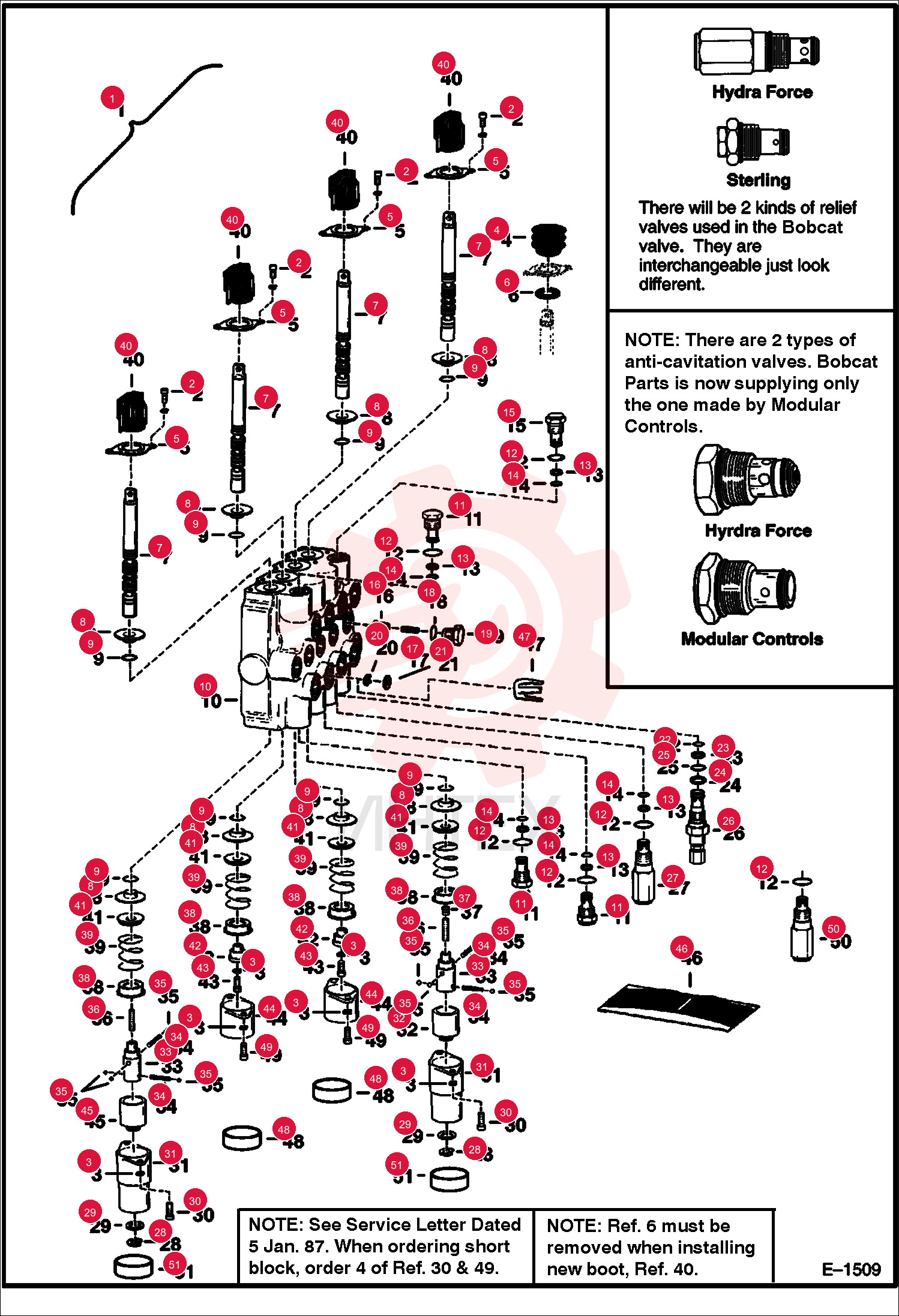

VALVE 6592740 (1)
1 6592740
- 6592740 - VALVE
- Ref. 2-10 & 37
2 6588165
- 6588165 - SCREW
3 22E4
- 22E4 - WASHER
4 6592123
- 6592123 - RETAINER
5 6592103
- 6592103 - BUSHING
- See Service Letter dated 5 Jan. 87
6 6538466
- 6538466 - BUSHING
- With part # stamped on face
7 6659554
- 6659554 - SEAL
- - Was 6632204
8 6646372
- 6646372 - SEAL
- QUAD RING
- quad ring seal
9 6592720
- 6592720 - PLUG
- W/Ref. 12-14
10 79K10
- 79K10 - O RING 10
11 80K14
- 80K14 - BKUP WSH5
- Was 73K000014B
12 6677106
- 6677106 - O-RING
- back-up washer not required
13 58K014
- 58K014 - O-RING 10
- back-up washer required - Was 25K20016
14 6667549
- 6667549 - VALVE
- CHECK
- anti-cavity - W/Ref. 12-14 - Was 6661345
15 6592115
- 6592115 - SEAT
16 6592117
- 6592117 - SPRING
- LOAD CHECK
17 79K8
- 79K8 - O RING 10
18 6592116
- 6592116 - NUT
- load check
19 6592111
- 6592111 - ORIFICE
- .161/.154 (4
- 08/3
- 91 mm)
20 6593680
- 6593680 - RETAINER
21 7219324
- 7219324 - VALVE
- RELIEF
- W/ O-rings - pressure to be set in field - Was 6686360
22 6599161
- 6599161 - VALVE
- RELIEF
- W/Ref. 12-14
23 799119
- 799119 - RING
24 6592098
- 6592098 - WASHER
25 6588163
- 6588163 - SCREW
- 7/8" (22
- 22 mm) - Was 69G000412B
26 29G416
- 29G416 - BOLT
- 1" (25
- 4 mm) - Was 6588982
27 6589226
- 6589226 - COVER
- END
- 0.63" flange
28 6592096
- 6592096 - SLEEVE
- lift
29 6587575
- 6587575 - ADAPTER
- Was 6592099
30 6592107
- 6592107 - SPRING
- DETENT 5
31 6592105
- 6592105 - BALL 5
32 6586918
- 6586918 - SCREW
- DETENT
- Was 6535747
33 54K20002
- 54K20002 - O'RING 10
34 6596807
- 6596807 - PLUG
- plastic - 0.46" long
35 6592100
- 6592100 - COLLAR
36 6587580
- 6587580 - SPRING
- Was 6592106
37 6587763
- 6587763 - BOOT
- Was 6583727
38 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
39 6592109
- 6592109 - ADAPTER
40 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
- W/.50" (12
- 7 mm) flange - Was 6587633
41 6593349
- 6593349 - SLEEVE
- auxiliary
42 6816251
- 6816251 - KIT
- SEAL
- - Ref. 9
- 12-14
- 18
- 22-25
- 37 & 40 - Was 6816717
43 6816250
- 6816250 - KIT
- SEAL
- Ref. 9
- 30 & 40 for one spool - Was 6803605
44 6809425
- 6809425 - SEAL KIT
- upper deck - Ref. 12-14 & 18 - Was 6586461
45 6661328
- 6661328 - SEAL KIT
- main relief seal - Ref. 22-25
46 6532633
- 6532633 - RESTRICTOR
- .153 (3
- 88 mm)
47 6662848
- 6662848 - CAP
- Use with 6587633 bonnet
48 6588164
- 6588164 - SCREW
49 6664373
- 6664373 - VALVE
- RELIEF
- Optional - port relief & anti cav. - W/Ref. 12 - 2500 PSI - use in tilt cyl. base end port
50 6660644
- 6660644 - CAP
