Bobcat
/
863.0
/

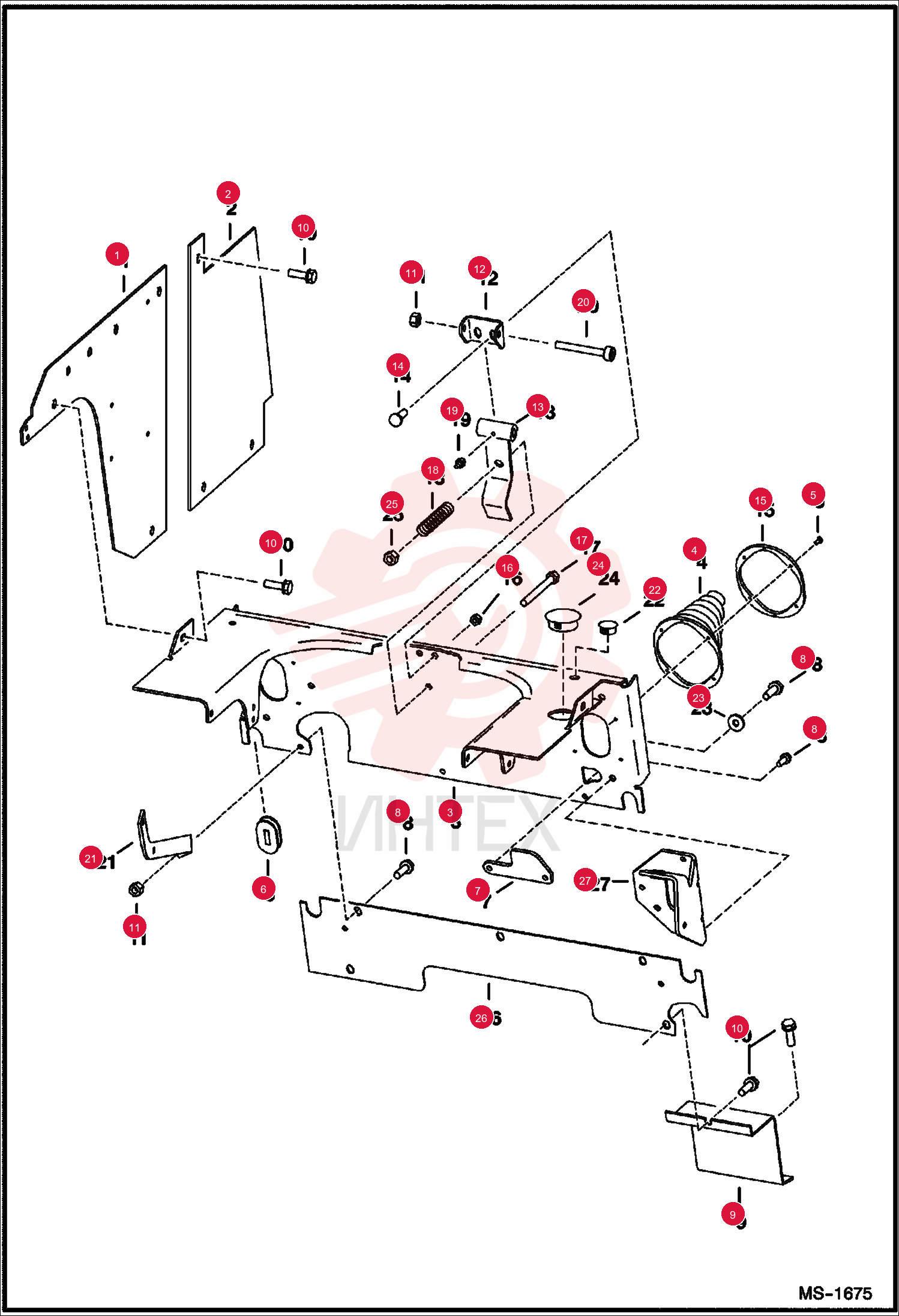

PANEL 6718487

PANEL 6718487

PANEL 6718487

1 6718487

  • 6718487 - PANEL
  • Was 6710647

2 6701345

  • 6701345 - PANEL

3 6716681

  • 6716681 - SHIELD

4 6707475

  • 6707475 - PANEL

5 6532127

  • 6532127 - BOOT AND PLATE ASSY
  • W/Ref. 15

6 6630207

  • 6630207 - RIVET POP

7 6577961

  • 6577961 - GROMMET

8 6703330

  • 6703330 - STOPLEVER
  • stop

9 6716903

  • 6716903 - LEVER
  • stop - M46 option

10 84G3716

  • 84G3716 - SCREW THD ROLLING TT

11 6700772

  • 6700772 - STEP

12 84G3712

  • 84G3712 - SCREW THD ROLLING TT

13 95D6

  • 95D6 - NUT HEXAGON
  • Was 91D000006B

14 6701951

  • 6701951 - BRACKET

15 6701950

  • 6701950 - SPRG PLT.

16 10C512

  • 10C512 - BOLT SQ NECK RND HD

17 59D5

  • 59D5 - NUT LOCK HEX PT
  • Was 85D000005B

18 17C664

  • 17C664 - BOLT

19 6505082

  • 6505082 - SPRING

20 10H25

  • 10H25 - FTG GREASE STRAIGHT

21 38C836

  • 38C836 - BOLT

22 6703551

  • 6703551 - BRACE

23 6657719

  • 6657719 - PLUG
  • 0.75" dia hole - Was 6649949

24 616783

  • 616783 - WASHER

25 6707674

  • 6707674 - PLUG HOLE

26 59D6

  • 59D6 - NUT LOCK HEX PT

27 6716865

  • 6716865 - PANEL
  • Was 6707343
