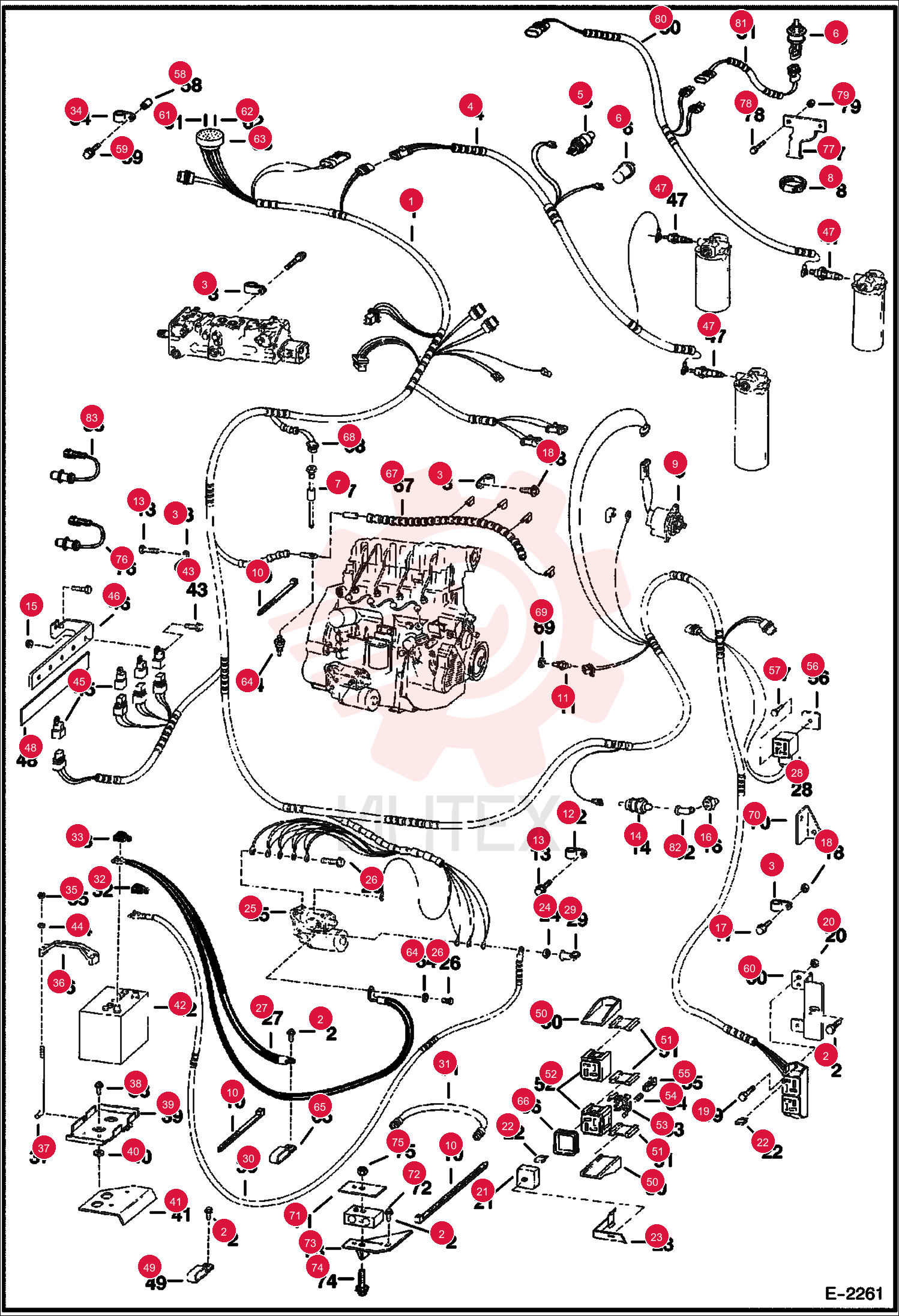

HARNESS, ENG BASE 6718070
1 6718070
- 6718070 - HARNESS
- ENG BASE
- engine - for side console - W/4 glow plug head - Was 6715947
2 6711562
- 6711562 - HARNESS
- engine - Was 6709896
3 84G3712
- 84G3712 - SCREW THD ROLLING TT
4 30H49
- 30H49 - CLAMP
5 6710729
- 6710729 - HARNESS
- filter
6 7251584
- 7251584 - SWITCH
- TEMP
- hyd temp - Was 6632633
7 6667292
- 6667292 - SWITCH
- hyd. charge pressure
8 79K14
- 79K14 - O RING 10
9 7286464
- 7286464 - SENSOR
- FUEL
- Was 7179839
10 6717579
- 6717579 - GASKET
11 42H16
- 42H16 - CLAMP
- HOSE 5
- 1.5" max. dia.
12 44H20
- 44H20 - CLAMP
- Was 42H000020B
13 6610510
- 6610510 - STRAP
- TIE 10
14 6717120
- 6717120 - SENDER
- TEMP OIL
- engine oil temp. - W/ black wire - Was 6666613
15 30H57
- 30H57 - CLAMP
16 4CM816
- 4CM816 - SCREW HEX HD 8.8
- Was 1CM816
17 6631010
- 6631010 - SWITCH
- PRESS OIL ENG
- engine oil pressure
18 55D4
- 55D4 - NUT
19 6708580
- 6708580 - ADAPTER
20 17C512
- 17C512 - BOLT 5
- Was 17C-3112
21 85D5
- 85D5 - NUT PRETRQ HEX LOCK
22 45G1212
- 45G1212 - BOLT
- Was 45D000012B
23 50D12
- 50D12 - NUT
24 6665358
- 6665358 - COVER
- FUSE
- fuses
25 6707620
- 6707620 - FUSE
- 10A MINI 5
26 6707621
- 6707621 - FUSE
- 15A MINI 5
27 6707623
- 6707623 - FUSE
- 25A MINI 5
28 6674099
- 6674099 - BREAKER
- 25A
29 6708437
- 6708437 - SPRG CLIP
- spring
30 4DM5
- 4DM5 - NUT HEXAGON M5
31 45C620
- 45C620 - BOLT
- Was 35C000620B
32 6713670
- 6713670 - CABLE
- BATTERY
- ground - Was 6713118
33 6665659
- 6665659 - CONNECTOR
- SHUTDOWN
- fuel shutdown
34 6560172
- 6560172 - COVER
35 6576188
- 6576188 - CABLE
- POSITIVE
- positive - W/ 30" (762 mm) of Ref. 31 - Was 6579809
36 6563505
- 6563505 - CONDUIT
- bulk - sold per foot
37 2356058
- 2356058 - BOOT
38 30H60
- 30H60 - CLIP INSULATED
39 59D5
- 59D5 - NUT LOCK HEX PT
40 6569203
- 6569203 - CLAMP BATTERY
41 6576280
- 6576280 - BOLT BENT
42 84G3716
- 84G3716 - SCREW THD ROLLING TT
43 6712536
- 6712536 - BATTRYPAN
- Was 6577809
44 6555455
- 6555455 - WASHER
45 6579989
- 6579989 - BRACKET
46 7312553
- 7312553 - BATTERY 1000 CCA DRY
- - Was 6665427
47 7269857
- 7269857 - BATTERY WET 1000 CCA
48 17C412
- 17C412 - BOLT 5
49 25E15
- 25E15 - WASHER FLAT PLAIN
50 6670312
- 6670312 - SWITCH
- MAGNETIC
- relay - Was 6665005
51 6707649
- 6707649 - MOUNT
52 6632053
- 6632053 - SWITCH
- filter
53 6707787
- 6707787 - DECAL
- fuse location
54 30H46
- 30H46 - CLIP
55 6665369
- 6665369 - MOUNT
- FUSE
- fuse
56 6665411
- 6665411 - WEDGE
- red
57 6665356
- 6665356 - FUSEBLOCK
- fuse - W/Ref. 66
58 6665357
- 6665357 - 2ND LOCK
- yellow
59 6650107
- 6650107 - SEAL
60 6668760
- 6668760 - SEAL
61 6668761
- 6668761 - BOLT
62 6712975
- 6712975 - SPACER
63 84G3732
- 84G3732 - BOLT
64 6714764
- 6714764 - MOUNT
- fuse block - Use W/ 1-piece rear door
65 6664828
- 6664828 - SOCKET
66 6664041
- 6664041 - PIN 10
67 6664585
- 6664585 - CONNECTOR
- Also Order Ref. 61 & 62 as needed - Was 6665682
68 6511720
- 6511720 - PLUG
69 31H46
- 31H46 - CLAMP
70 6671528
- 6671528 - CONN SEAL
- green square - Was 6671156
71 6714434
- 6714434 - HARNESS
- for 4 glow plug changeover
72 6646383
- 6646383 - CONNECTOR
- fuel sender
73 6632946
- 6632946 - TERMINAL
- female
74 6666405
- 6666405 - SEAL
- RING
- seal
75 6714979
- 6714979 - BRACKET
- harness
76 6715132
- 6715132 - RETAINER
- cable clamp
77 6715197
- 6715197 - CLAMP
78 6715131
- 6715131 - BRACKET
- battery cable
79 17C540
- 17C540 - BOLT
80 95D5
- 95D5 - NUT
81 6684037
- 6684037 - SENSOR
- SPEED ENG
- RPM - Was 6658260
82 6704319
- 6704319 - MOUNT
83 17C416
- 17C416 - BOLT
84 85D4
- 85D4 - NUT 5
85 6716642
- 6716642 - HARNESS
- filter - for M-44 pump
86 6717131
- 6717131 - HARNESS
87 25F1
- 25F1 - ELBOW
88 6679853
- 6679853 - SENSOR
- RPM
