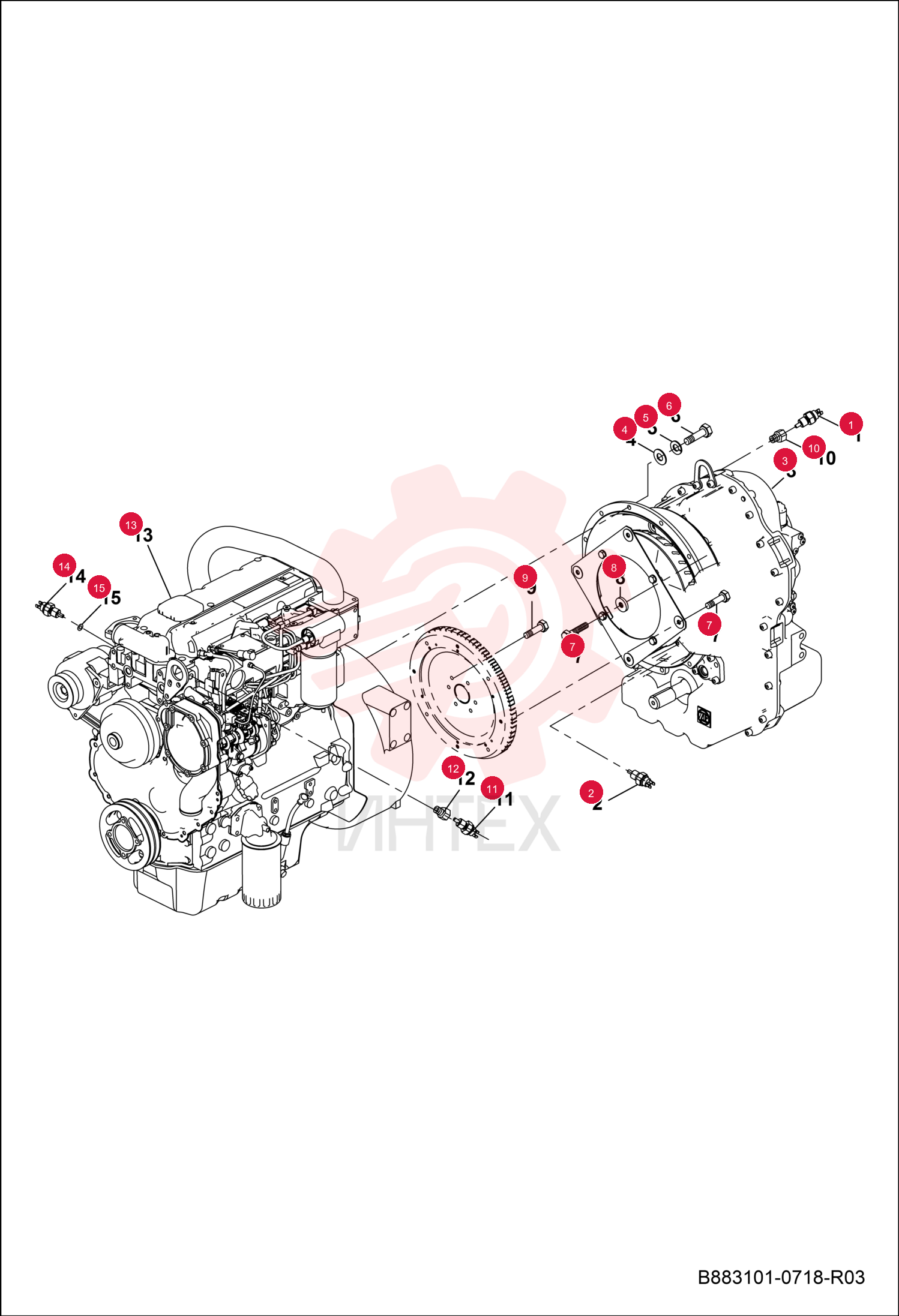

SENSOR TEMP 7291027 (4)

SENSOR TEMP 7291027 (4)

SENSOR TEMP 7291027 (4)

1 7291027

  • 7291027 - SENSOR TEMP

2 7291028

  • 7291028 - SENSOR TEMP

3 7291029

  • 7291029 - TRANSMISSION COMPLETE

4 7289278

  • 7289278 - WASHER FLAT

5 7289259

  • 7289259 - WASHER LOCK

6 7289258

  • 7289258 - BOLT HEX

7 7289691

  • 7289691 - BOLT HEX

8 7291030

  • 7291030 - WASHER

9 7289312

  • 7289312 - BOLT

10 7291031

  • 7291031 - ADAPTER ENGINE

11 7291032

  • 7291032 - SENSOR TEMP

12 7356394

  • 7356394 - ADAPTER

13 7288897

  • 7288897 - ENGINE ASSEMBLY

14 7356393

  • 7356393 - SENDER

15 6911881

  • 6911881 - O RING
