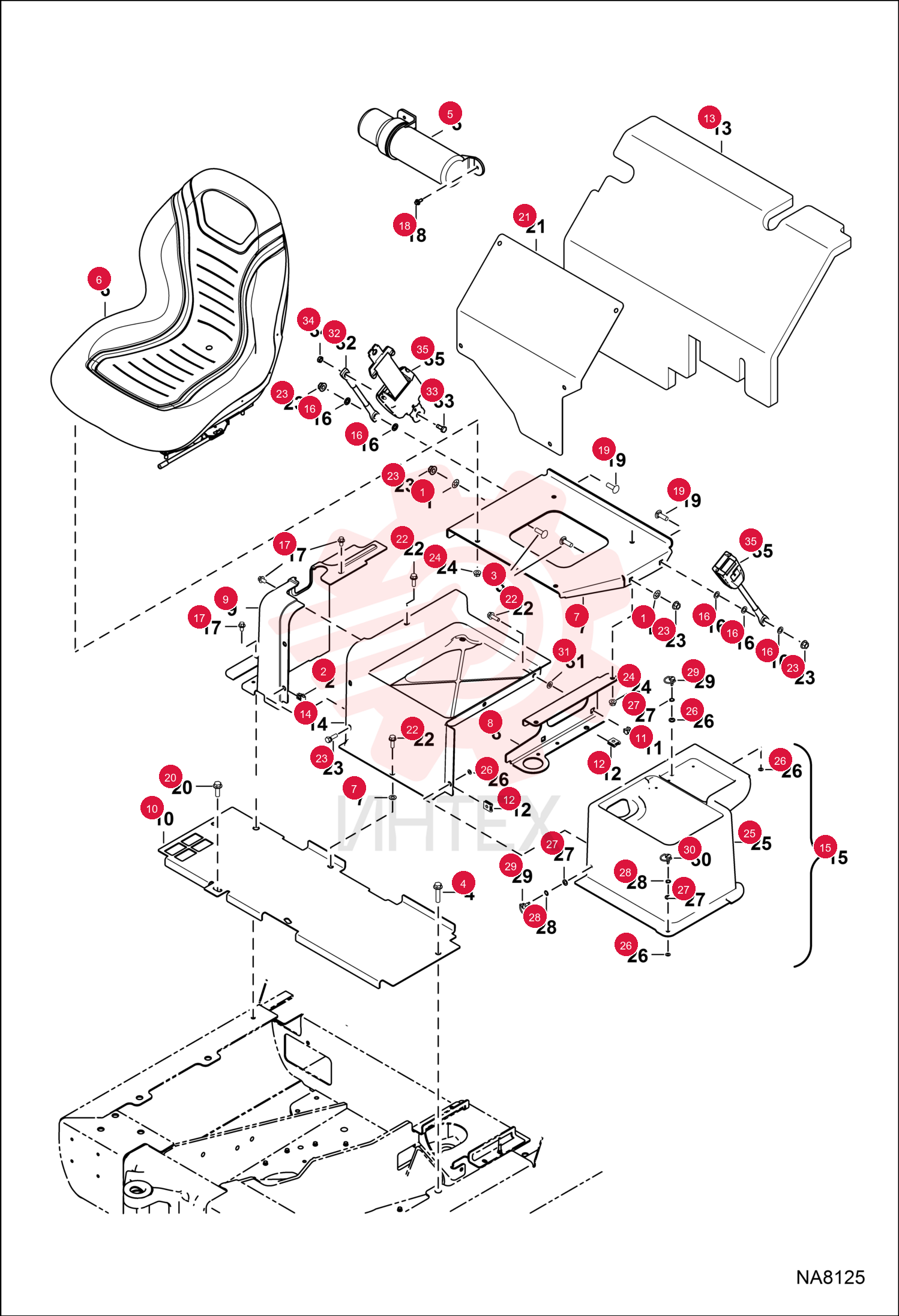

RETAINER BOLT 6674264 (2)

RETAINER BOLT 6674264 (2)

RETAINER BOLT 6674264 (2)

1 6674264

  • 6674264 - RETAINER BOLT

2 6676169

  • 6676169 - NUT

3 28CM1025

  • 28CM1025 - BOLT CARRIAGE 8.8

4 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

5 7108147

  • 7108147 - CONTAINER
  • MANUAL

6 7238518

  • 7238518 - SEAT
  • OPERATOR BUCKET VINYL

7 7232887

  • 7232887 - MOUNT
  • SEAT

8 7232888

  • 7232888 - BRACKET
  • TANK

9 7186066

  • 7186066 - COVER
  • RH

10 7212678

  • 7212678 - PLATE
  • FLOOR

11 7186072

  • 7186072 - NUT

12 7186077

  • 7186077 - CLIP

13 7219701

  • 7219701 - INSULATION

14 7193053

  • 7193053 - COVER
  • W/Ref. 31-32

15 7204431

  • 7204431 - COVER LH ASSY
  • Ref. 25-30

16 15EM100

  • 15EM100 - WASHER

17 26GM8016

  • 26GM8016 - SCREW SELF TAPPING

18 6810157

  • 6810157 - SCREW

19 28CM1030

  • 28CM1030 - BOLT CARRIAGE 8.8

20 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

21 7218559

  • 7218559 - COVER

22 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

23 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

24 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

25 7186064

  • 7186064 - COVER
  • LH

26 7186078

  • 7186078 - WASHER

27 7186079

  • 7186079 - WASHER

28 7186080

  • 7186080 - SPRING

29 7193050

  • 7193050 - STUD

30 7193050

  • 7193050 - STUD
  • Was 7193051

31 7193049

  • 7193049 - WASHER
  • glued

32 7207356

  • 7207356 - CABLE
  • STALK

33 1CM1025

  • 1CM1025 - BOLT

34 53DM10

  • 53DM10 - NUT HX THDLK PREAPPL

35 7207354

  • 7207354 - BELT
  • SEAT
