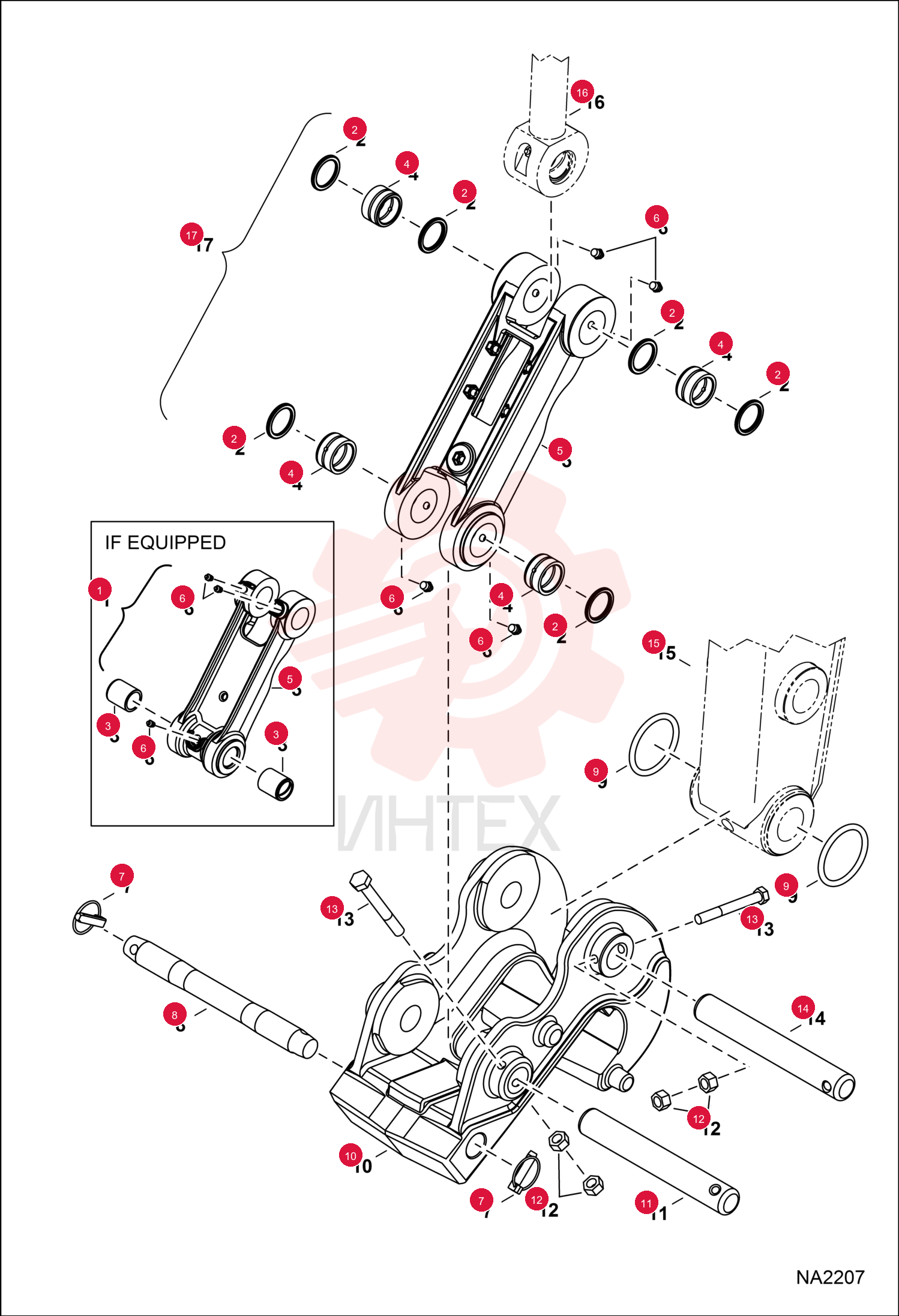

SEAL, OIL 6652915 (2)
1 6652915
- 6652915 - SEAL
- OIL
2 6803213
- 6803213 - BUSHING
- PRESS FIT
3 6803309
- 6803309 - BUSHING
- PRESS FIT
4 10H25
- 10H25 - FTG GREASE STRAIGHT
5 6560382
- 6560382 - PIN
- LOCK
6 7137214
- 7137214 - PIN
7 7143562
- 7143562 - O-RING
- 69
- 2 mm (2.73") ID
8 7143561
- 7143561 - O-RING
- 3.23" (81
- 9 mm) ID
9 7150798
- 7150798 - X-CHANGE
- PIN-ON
10 7181216
- 7181216 - PIN
- PIVOT X-CHANGE
- 249
- 5 mm (9.82") long - Was 7151836
11 43DM10
- 43DM10 - NUT FLANGED HEX
12 7CM1080
- 7CM1080 - SCREW HEX HD 10.9
13 7181216
- 7181216 - PIN
- PIVOT X-CHANGE
- 249
- 5 mm (9.82") long - Was 7151836
14 7157744
- 7157744 - PIN
- PIVOT CLAMP
- 376
- 5 mm (14.82") long - see clamp attachment
15 7236896
- 7236896 - LINK
- PIN-ON
- - Ref. 2 & 4-6 - not for extendable arm
