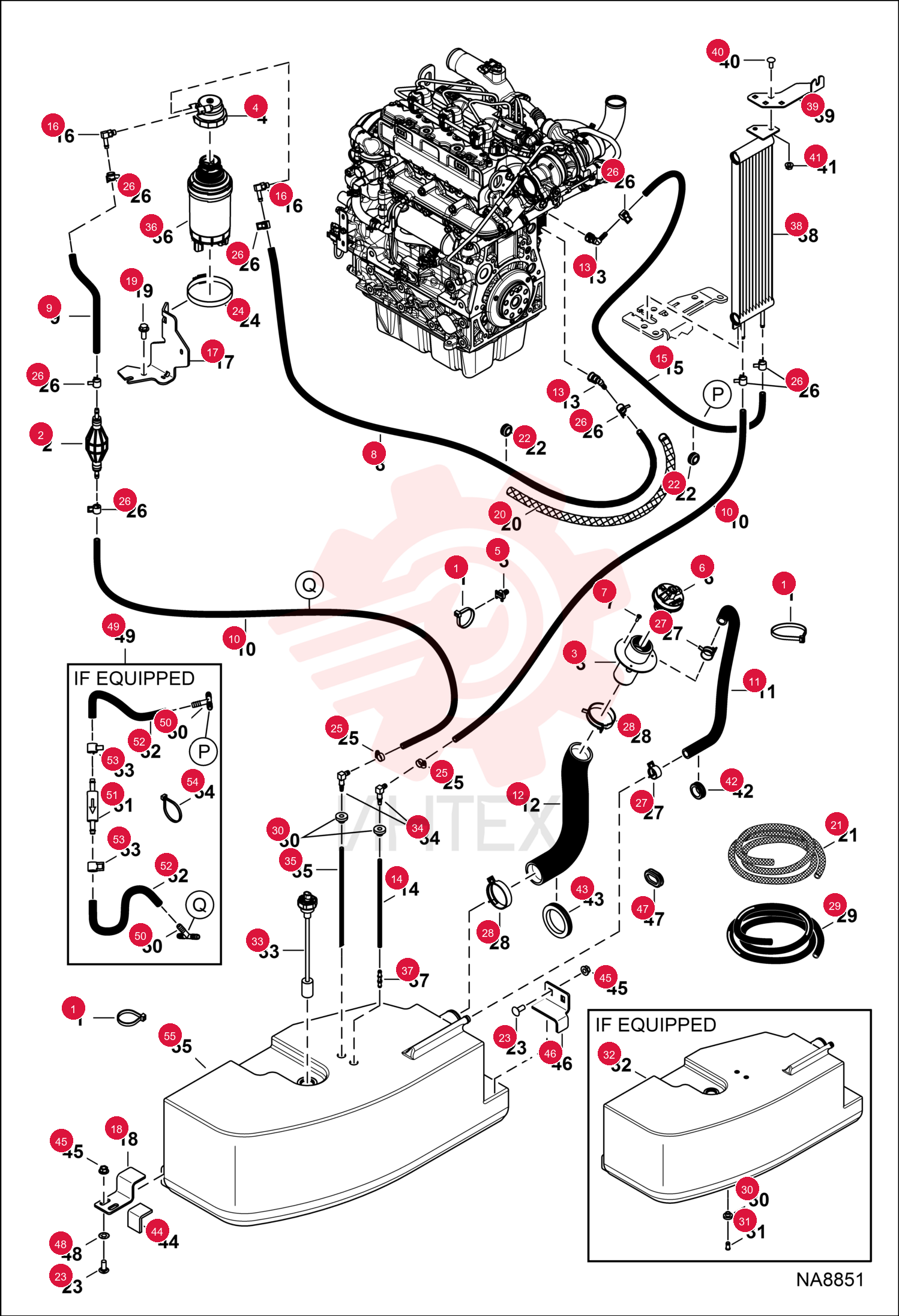

STRAP, TIE 6624289 (7)
1 6624289
- 6624289 - STRAP
- TIE
2 6667170
- 6667170 - PUMP
- PRIMER HAND
3 6701449
- 6701449 - FLR.TUBE
4 7015668
- 7015668 - MOUNT
- STRAP TIE
5 7023550
- 7023550 - CAP
- DIESEL LOCKING
6 7106279
- 7106279 - SCREW
7 7148493
- 7148493 - HOSE
- FUEL
8 7164301
- 7164301 - HOSE
- FUEL FORMED
9 7188104
- 7188104 - FITTING
- FUEL ELBOW
10 7189951
- 7189951 - TUBE
- FUEL
- NSS - Order 7189953 - Was 7189951
11 7213054
- 7213054 - FITTING
- ELBOW
12 7226617
- 7226617 - BRACKET
- FILTER
13 7163721
- 7163721 - BRACKET
- TANK FUEL
14 29CM1025
- 29CM1025 - SCREW FLGD HEX CAP
15 7237463
- 7237463 - HOSE
- FUEL BULK
- sold per foot
16 7237139
- 7237139 - GROMMET
17 28CM1025
- 28CM1025 - BOLT CARRIAGE 8.8
18 42H56
- 42H56 - CLAMP
19 42HS04
- 42HS04 - CLAMP HOSE TYPE M
20 5HM14
- 5HM14 - HOSE CLMP CONST TENS
21 5HM23
- 5HM23 - HOSE CLMP CONST TENS
22 5HM58
- 5HM58 - CLAMP
23 6577822
- 6577822 - HOSE BULK
- sold per foot
24 7273691
- 7273691 - GROMMET
- Use W/ 19
- 05 mm (0.75") dia hole
25 6553411
- 6553411 - BUSHING
- PRESS FIT 5
- Use W/ 13mm (.51") dia hole
26 6599645
- 6599645 - PLUG
- STEEL
- if equipped
27 6717579
- 6717579 - GASKET
28 7286464
- 7286464 - SENSOR
- FUEL
- Was 7179839
29 6666302
- 6666302 - ELBOW BARBED
30 6683892
- 6683892 - TUBE
- FUEL
31 7023589
- 7023589 - FILTER FUEL W/SEPARATOR
32 7013579
- 7013579 - FILTER FUEL ASSY
- W/Ref. 4
33 7231899
- 7231899 - EXCHANGER
- FUEL
34 7225150
- 7225150 - BRACKET
- FUEL
35 28CM820
- 28CM820 - BOLT CARRIAGE 8.8
36 43DM8
- 43DM8 - NUT FLANGED HEX
37 6515603
- 6515603 - GROMMET
38 6807283
- 6807283 - GROMMET
39 6578278
- 6578278 - BUMP.PAD
40 43DM10
- 43DM10 - NUT FLANGED HEX
41 7163720
- 7163720 - BRACKET
- TANK FUEL
42 6681886
- 6681886 - GROMMET
43 6674264
- 6674264 - RETAINER BOLT
44 7140157
- 7140157 - TEE
45 5HM14
- 5HM14 - HOSE CLMP CONST TENS
46 6624289
- 6624289 - STRAP
- TIE
47 7345450
- 7345450 - TANK FUEL
- Was 7320369
