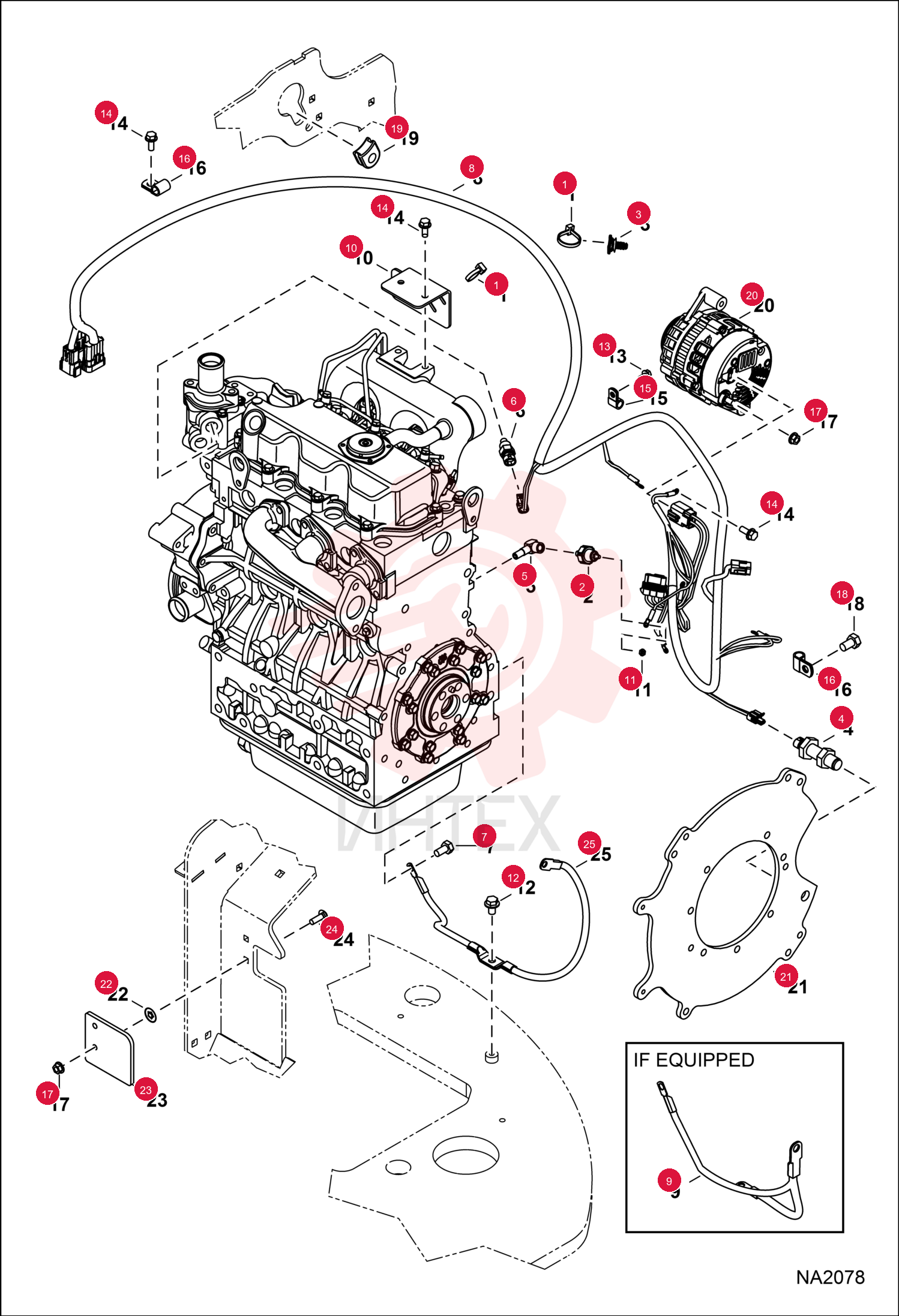

STRAP, TIE 6624289 (28)
1 6624289
- 6624289 - STRAP
- TIE
2 6631010
- 6631010 - SWITCH
- PRESS OIL ENG
3 7015668
- 7015668 - MOUNT
- STRAP TIE
4 6693921
- 6693921 - SENSOR
- RPM
5 6707040
- 6707040 - ELBOW 90 STREET PIPE
6 6718414
- 6718414 - SENDER
- TEMP ENG
7 5CM1020
- 5CM1020 - SCREW FL THD HEX CAP
- W/thread lock applied
8 7147339
- 7147339 - HARNESS
- ENG
9 7241865
- 7241865 - HARNESS
- ENG
10 7151891
- 7151891 - HARNESS
- GROUND
- if equipped - 406mm (16") & 292mm (11.5") long
11 7269040
- 7269040 - HARNESS
- GROUND
- 422mm (16.61") & 724
- 3mm (28.52") long
12 7283223
- 7283223 - HARNESS GROUND
- 571
- 5 mm (22.5") & 460 mm (18.1") long - Was 7269040
13 7176121
- 7176121 - BRACKET
- HARNESS
14 12D8
- 12D8 - NUT HEX MACH SCREW
15 29CM1016
- 29CM1016 - SCREW FLANGE HEX CAP
16 29CM612
- 29CM612 - BOLT
- FLANGED
17 29CM820
- 29CM820 - SCREW FLNGE HEX CAP
18 30H26
- 30H26 - CLIP
19 30H32
- 30H32 - CLIP
20 43DM8
- 43DM8 - NUT FLANGED HEX
21 6CM1220
- 6CM1220 - BOLT
22 6675859
- 6675859 - RETAINER
23 7239138
- 7239138 - PLATE
- if equipped
24 28CM825
- 28CM825 - BOLT CARRIAGE 8.8
25 7269040
- 7269040 - HARNESS
- GROUND
- 724
- 3mm (28.52") long
